Thumbnail of product EDN1220/6 from brand EverFocus
Logo of brand EverFocus

Surveillance camera EverFocus EDN1220/6

EverFocus
Camera and photography
Surveillance camera

The EDN1220/6 is a product in the category Camera and photography, specifically of type Surveillance camera. We have listed 1 manual of type User Manual for product Surveillance camera EverFocus EDN1220/6. We have also listed 99 specifications for product Surveillance camera EverFocus EDN1220/6. Have a question about product EverFocus EDN1220/6 and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manual of product EDN1220/6

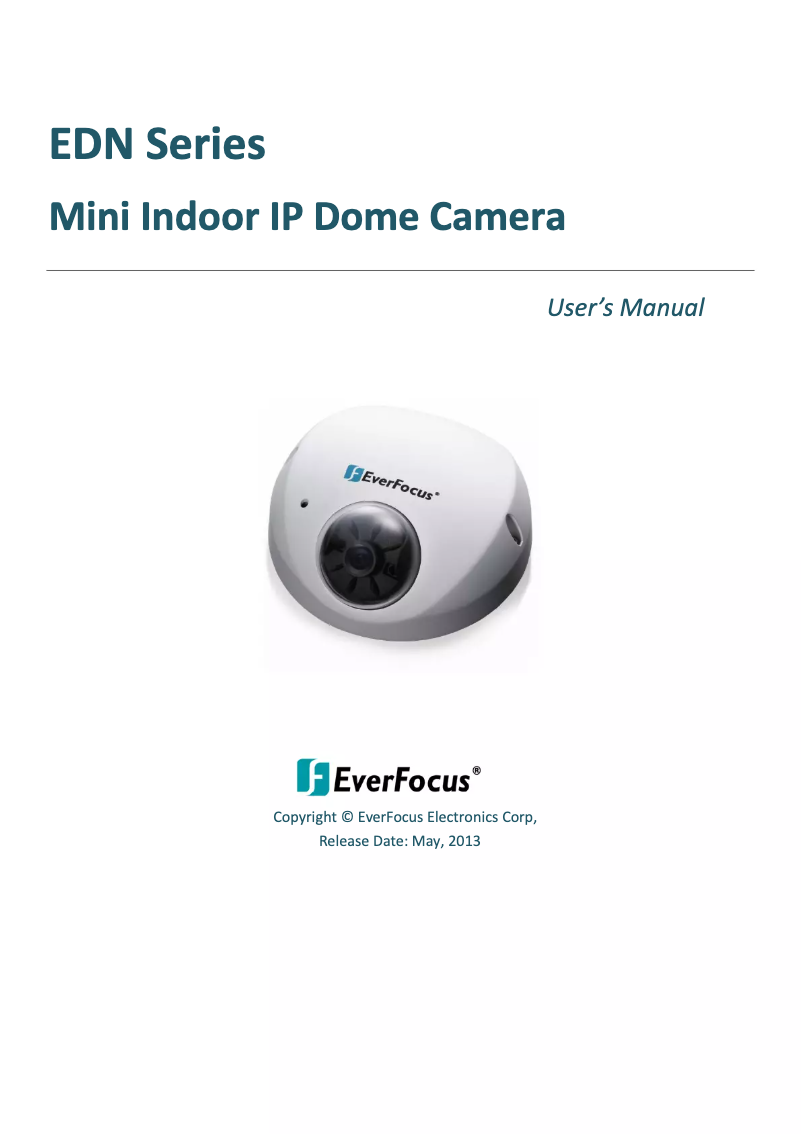

First page image of the manual for EDN1220/6

User Manual
70 pages
View manual

Technical Specifications EDN1220/6

General Information

Representation / realization

  • Type
    IP security camera
  • Supported installation
    Indoor
  • Connectivity technology
    Wired
  • Remote visualization
    Yes
  • Remote visualization
    Yes
  • Remote visualization
    Yes
  • Certification
    CE, FCC

Connectivity

  • Interface
    RJ-45
  • DC Input
    Yes

Audio

  • Voice codecs
    G.711
  • Built-in microphone
    Yes
  • Signal-to-noise ratio report
    50 dB
  • Voice codecs
    G.711

Design

  • Format
    Dome
  • Product color
    White
  • Mounting type
    Ceiling/wall

Weight and dimensions

  • Height
    110 mm
  • Diameter
    110.3 mm
  • Product length
    48.5 mm
  • Weight
    250 g

Power

  • Ethernet connection, supporting power over this port (PoE)
    Yes
  • Output CC in volts
    12
  • Consumption (max)
    3.24 W
  • Energy consumption (Power over Ethernet (PoE))
    5.83 W
  • Power supply type
    PoE

Video

  • Maximum resolution
    1920 x 1080 pixels
  • Visual compression formats
    H.264, M-JPEG, MPEG4
  • Visual compression formats
    H.264, M-JPEG, MPEG4
  • Supported graphic resolutions
    160 x 120,320 x 240,352 x 240,640 x 480 (VGA),704 x 480,720 x 480,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080)
  • Supported video modes
    240p, 480p, 720p, 1080p
  • Number of images per second
    30 ips
  • Total megapixels
    2 MP
  • Text overlay of caption
    Yes
  • Image quality adjustment
    Brightness, Contrast, Saturation, Sharpness
  • Text overlay of caption
    Yes
  • Text overlay of caption
    Yes
  • Text overlay of caption
    Yes
  • Text overlay of caption
    Yes
  • Text overlay of caption
    Yes

Management features

  • Reset button
    Yes

Camera

  • Minimum illumination
    0.1 lux
  • Inclination angle
    0 - 90 °
  • Panoramic
    -25 - 25 °
  • Rotation angle
    90 °
  • White balance
    Auto
  • Camera shutter speed
    4 - 1/15000 s

Environmental conditions

  • Operating temperature
    -10 - 50 °C
  • Operating relative humidity (H-H)
    20 - 80 %

Minimum system requirements

  • Support for the Windows operating system
    Windows 7 Enterprise
  • Supported mobile system
    Windows 7 Home Basic
  • Windows 7 Home Premium
  • Windows 7 Professional
  • Windows 7 Starter
  • Windows 7 Ultimate
  • Windows Vista Business
  • Windows Vista Enterprise
  • Windows Vista Home Basic
  • Windows Vista Home Premium
  • Windows Vista Ultimate
  • Windows XP Home
  • Windows XP Home x64
  • Windows XP Professional
  • Windows XP Professional x64
  • Android
  • iOS

Image sensor

  • Sensor type
    CMOS
  • Optical sensor size
    1/2.7

Packaging contents

  • Number of cameras
    1
  • Cables included
    DC, LAN (RJ-45)
  • Resource CD
    Yes
  • Resource CD
    Yes
  • Resource CD
    Yes

Objective system

  • Zoom capacity
    Yes
  • Digital zoom
    10 x
  • Fixed Focal Length
    6 mm

Security

  • Motion detector
    Yes
  • Motion detector
    Yes
  • Security-supported algorithm
    HTTPS, SNMP
  • Password protection
    User
  • Motion detector
    Yes
  • Motion detector
    Yes
  • Alert notification type
    Email

Storage support

  • Integrated hard drive
    -
  • Built-in memory card reader
    Yes
  • Compatible memory cards
    MicroSD (TransFlash), MicroSDHC

Night vision

  • Night vision
    -

Network

  • Ethernet/LAN
    Yes
  • Wifi
    No
  • Type of Ethernet interface
    Fast Ethernet
  • Wiring technology
    10/100Base-T(X)
  • Network standards
    IEEE 802.3af
  • Supported network protocols
    TCP/IP, IPV6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, SNMP, FTP, HTTP, HTTPs, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP, UDP, IGMP, ICMP, ARP, ONVIF, PSIA

Other features

  • Supported browsers
    Internet Explorer 7

Technical details

  • Iris
    Yes
