Thumbnail of product EFN3320 from brand EverFocus
Logo of brand EverFocus

Surveillance camera EverFocus EFN3320

EverFocus
Camera and photography
Surveillance camera

The EFN3320 is a product in the category Camera and photography, specifically of type Surveillance camera. We have listed 1 manual of type User Manual for product Surveillance camera EverFocus EFN3320. We have also listed 84 specifications for product Surveillance camera EverFocus EFN3320. Have a question about product EverFocus EFN3320 and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manual of product EFN3320

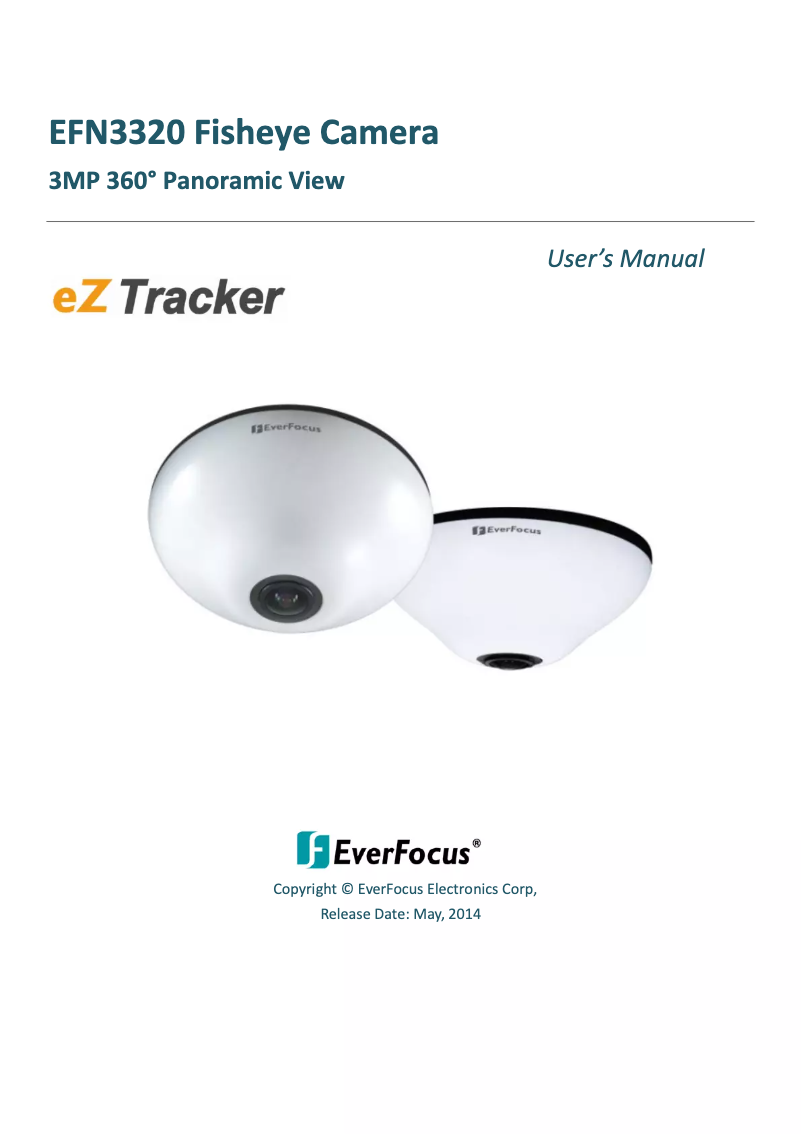

First page image of the manual for EFN3320

User Manual
92 pages
View manual

Technical Specifications EFN3320

General Information

Representation / realization

  • Type
    IP security camera
  • Supported installation
    Indoor
  • Connectivity technology
    Wired
  • PTZ Control
    Yes
  • PTZ Control
    Yes
  • PTZ Control
    Yes
  • PTZ Control
    Yes
  • Certification
    CE, FCC
  • PTZ Control
    Yes

Design

  • Format
    Dome
  • Mounting type
    Ceiling/wall
  • Product color
    White

Video

  • Total megapixels
    3 MP
  • Visual compression formats
    H.264, M-JPEG, MPEG4
  • Visual compression formats
    H.264, M-JPEG, MPEG4
  • Automatic gain control
    Yes
  • Full HD
    No
  • Maximum resolution
    1536 x 1536 pixels
  • Number of images per second
    15 fps
  • Analog signal format system
    NTSC, PAL
  • Automatic gain control
    Yes
  • Image quality adjustment
    Brightness, Saturation, Sharpness
  • Automatic gain control
    Yes
  • Automatic gain control
    Yes
  • Automatic gain control
    Yes

Image sensor

  • Sensor type
    CMOS
  • Optical sensor size
    1/3 "
  • Progressive scan
    Yes

Storage support

  • Integrated hard drive
    -
  • Built-in memory card reader
    Yes
  • Compatible memory cards
    MicroSDHC, MicroSDXC
  • Maximum memory card size
    64 GB

Network

  • Quality of Service (QoS)
    Yes
  • Wifi
    No
  • Quality of Service (QoS)
    Yes
  • Supported network protocols
    TCP/IP, IPV6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, SNMP, FTP, HTTP, HTTPs, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP, UDP, IGMP, ICMP, ARP, ONVIF, PSIA, QoS
  • Type of Ethernet interface
    Fast Ethernet
  • Wiring technology
    10/100Base-T(X)
  • Network standards
    IEEE 802.3af
  • Number of users
    10 user(s)

Packaging contents

  • Number of cameras
    1

Minimum system requirements

  • Supported mobile system
    Android
  • iOS

Power

  • Ethernet connection, supporting power over this port (PoE)
    Yes
  • Output CC in volts
    12
  • Consumption (max)
    3.9 W
  • Energy consumption (Power over Ethernet (PoE))
    4.5 W
  • Power supply type
    PoE

Objective system

  • Fixed Focal Length
    1.19 mm
  • Maximum number of openings
    2
  • Zoom capacity
    Yes
  • Digital zoom
    10 x

Night vision

  • Night vision
    Yes
  • Type of LED
    IR

Camera

  • Minimum illumination
    0.1 lux
  • Camera shutter speed
    4 - 1/15000 s
  • Field of view (FOV)
    360 °
  • White balance
    Auto

Technical details

  • Iris
    Yes
  • Audio input
    1

Audio

  • Signal-to-noise ratio report
    48 dB
  • Supported audio formats
    G.711
  • Supported audio formats
    G.711

Other features

  • Audio output
    1

Security

  • Security-supported algorithm
    HTTPS
  • Motion detector
    SNMP
  • Password protection
    SSL/TLS
  • Motion detector
    Yes
  • Motion detector
    User
  • Motion detector
    Yes
  • Alert notification type
    Yes
  • Yes
  • Email

Connectivity

  • Interface
    RJ-45

Environmental conditions

  • Operating temperature
    -10 - 50 °C
  • Operating relative humidity (H-H)
    20 - 80 %

Weight and dimensions

  • Diameter
    140 mm
  • Height
    50 mm
  • Weight
    558 g
