Thumbnail of product EZN1260 from brand EverFocus
Logo of brand EverFocus

Surveillance camera EverFocus EZN1260

EverFocus
Camera and photography
Surveillance camera

The EZN1260 is a product in the category Camera and photography, specifically of type Surveillance camera. We have listed 1 manual of type User Manual for product Surveillance camera EverFocus EZN1260. We have also listed 109 specifications for product Surveillance camera EverFocus EZN1260. Have a question about product EverFocus EZN1260 and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manual of product EZN1260

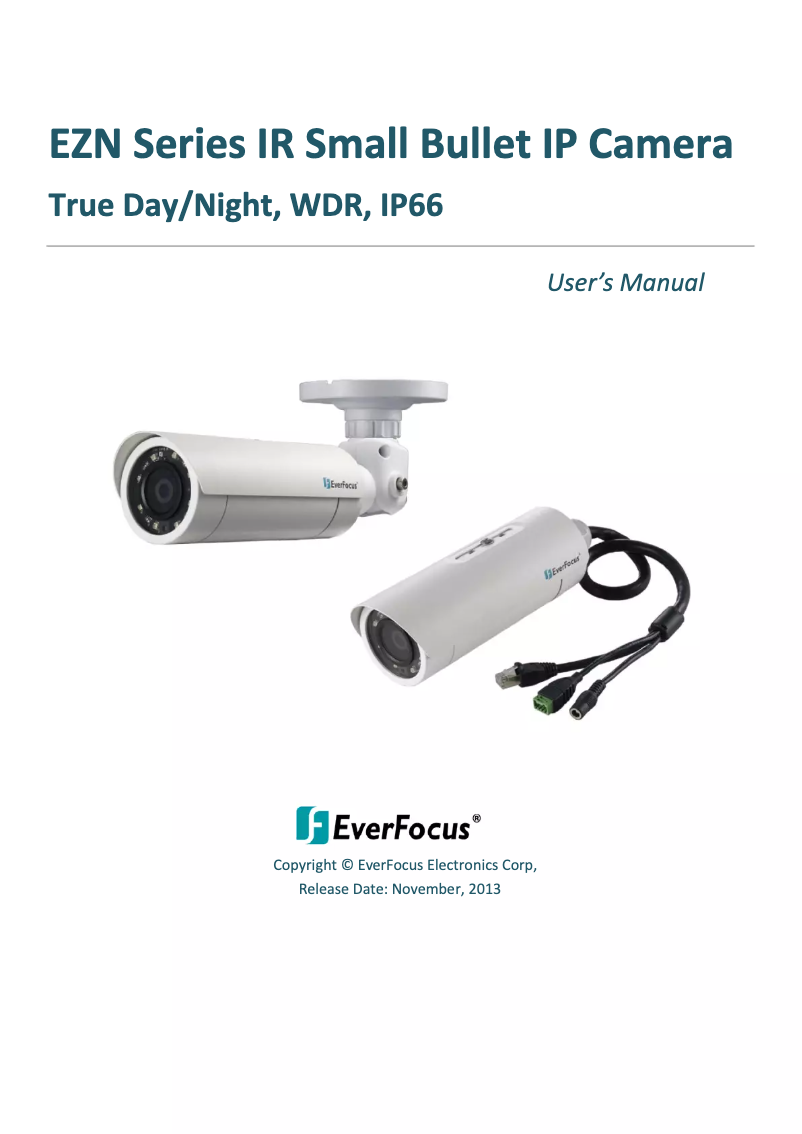

First page image of the manual for EZN1260

User Manual
73 pages
View manual

Technical Specifications EZN1260

General Information

Objective system

  • Fixed Focal Length
    3.6 mm
  • Maximum number of openings
    1.8
  • Zoom capacity
    Yes
  • Digital zoom
    10 x

Camera

  • Field of view (FOV)
    87 °
  • Minimum illumination
    0 lux
  • White balance
    Auto
  • Camera shutter speed
    4 - 1/15000 s

Representation / realization

  • Type
    IP security camera
  • Supported installation
    Outdoor
  • Connectivity technology
    Wired
  • Remote visualization
    Yes
  • Remote visualization
    Yes
  • Remote visualization
    Yes
  • Remote visualization
    Yes
  • Remote visualization
    Yes
  • Number of languages
    12
  • Languages taken into account
    CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FRE, JPN, POL, POR, RUS
  • Certification
    CE, FCC

Connectivity

  • Interface
    RJ-45
  • DC Input
    Yes

Audio

  • Signal-to-noise ratio report
    50 dB

Weight and dimensions

  • Height
    61.8 mm
  • Product length
    198.9 mm
  • Weight
    720 g

Design

  • Format
    Terminal
  • Product color
    White
  • Mounting type
    Ceiling/wall
  • International Protection Code (IP)
    IP66
  • Weather-resistant
    Yes

Power

  • Ethernet connection, supporting power over this port (PoE)
    Yes
  • AC input voltage
    24 V
  • Output CC in volts
    12
  • Consumption (max)
    11.04 W
  • Energy consumption (Power over Ethernet (PoE))
    10.56 W
  • Power supply type
    PoE

Video

  • Maximum resolution
    1920 x 1080 pixels
  • Visual compression formats
    H.264, M-JPEG, MPEG4
  • Visual compression formats
    H.264, M-JPEG, MPEG4
  • Supported graphic resolutions
    320 x 240, 352 x 240, 640 x 480 (VGA), 704 x 480, 720 x 480, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
  • Supported video modes
    240p, 480p, 720p, 1080p
  • Number of images per second
    30 ips
  • Total megapixels
    2 MP
  • Text overlay of caption
    Yes
  • Image quality adjustment
    Brightness, Contrast, Saturation, Sharpness
  • Text overlay of caption
    Yes
  • Text overlay of caption
    Yes
  • Text overlay of caption
    Yes
  • Text overlay of caption
    Yes
  • Text overlay of caption
    Yes

Management features

  • Optimized cable management
    Yes
  • Optimized cable management
    Yes

Environmental conditions

  • Operating temperature
    -20 - 55 °C
  • Operating relative humidity (H-H)
    20 - 80 %

Minimum system requirements

  • Support for the Windows operating system
    Windows 7 Enterprise
  • Supported mobile system
    Windows 7 Home Basic
  • Windows 7 Home Premium
  • Windows 7 Professional
  • Windows 7 Starter
  • Windows 7 Ultimate
  • Windows Vista Business
  • Windows Vista Enterprise
  • Windows Vista Home Basic
  • Windows Vista Home Premium
  • Windows Vista Ultimate
  • Windows XP Home
  • Windows XP Home x64
  • Windows XP Professional
  • Windows XP Professional x64
  • Android
  • iOS

Image sensor

  • Sensor type
    CMOS
  • Optical sensor size
    1/2.7

Packaging contents

  • Number of cameras
    1
  • Cables included
    LAN (RJ-45)
  • Resource CD
    Yes
  • Resource CD
    Yes
  • Resource CD
    Yes
  • Resource CD
    Yes
  • Resource CD
    Yes

Security

  • Motion detector
    Yes
  • Motion detector
    Yes
  • Security-supported algorithm
    HTTPS, SNMP
  • Password protection
    User
  • Motion detector
    Yes
  • Motion detector
    Yes
  • Alert notification type
    Email

Storage support

  • Integrated hard drive
    -
  • Built-in memory card reader
    Yes
  • Compatible memory cards
    MicroSD (TransFlash), MicroSDHC

Technical details

  • Iris
    Yes

Night vision

  • Night vision
    Yes
  • Type of LED
    IR
  • Night vision distance
    20 m
  • Number of lighting LEDs
    8
  • Infrared wavelength
    850 nm

Network

  • Ethernet/LAN
    Yes
  • Wifi
    No
  • Type of Ethernet interface
    Fast Ethernet
  • Wiring technology
    10/100Base-T(X)
  • Network standards
    IEEE 802.3af
  • Supported network protocols
    TCP/IP, IPV6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, SNMP, FTP, HTTP, HTTPs, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP, UDP, IGMP, ICMP, ARP, ONVIF, PSIA

Other features

  • Supported browsers
    Internet Explorer 7
