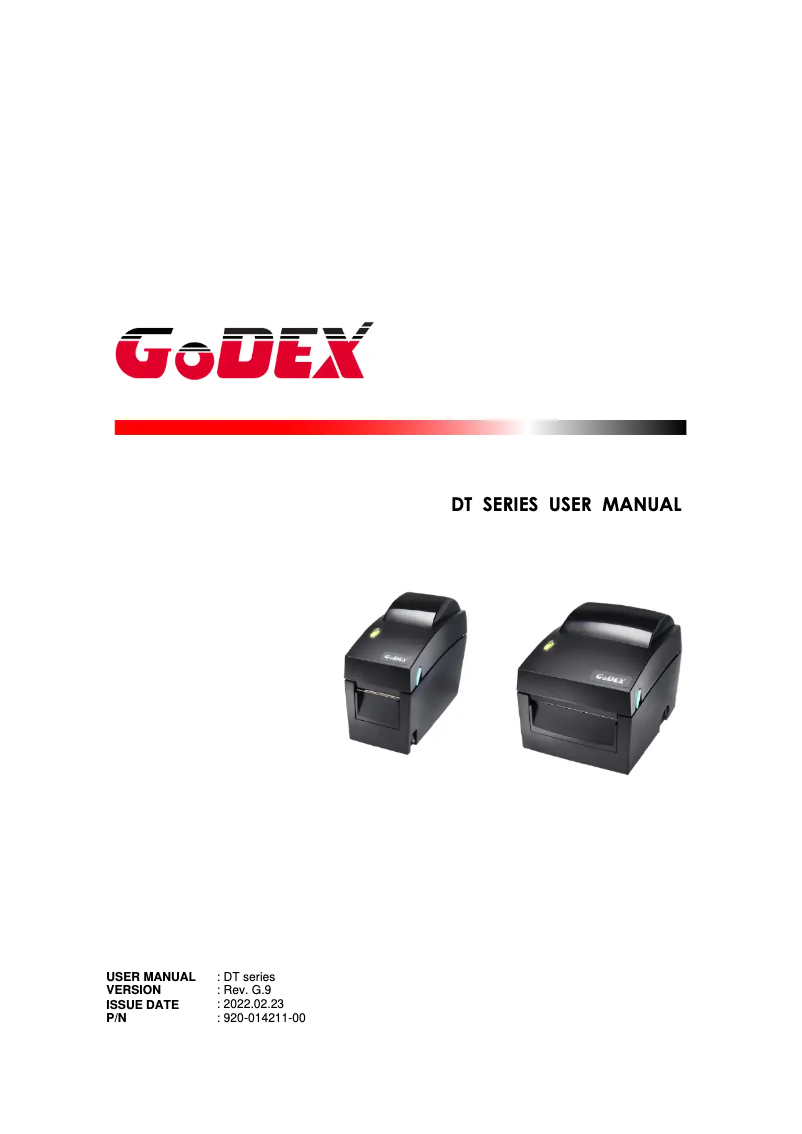

Manuals of product DT4x
Technical Specifications DT4x
General Information
-
ModelDT4X
-
Brand
-
Category
-
Type
-
SKU953054
-
MPN953054
Print speed
-
Printing technologyDirect thermal
-
ColorNo
-
Maximum resolution203 x 203 DPI
-
Print speed (metric measurement)177 mm/sec
-
Printing colorsBlack
-
Maximum print width108 mm
Design
-
ScreenNo
-
Product colorBlack
-
Order typeButtons
Power
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
Paper management
-
Max. diameter of the roll127 mm
-
Max. label length1.727 m
-
Thickness of the support0.076 - 0.2 mm
-
Supported paper width25.4 - 118 mm
Connectivity
-
Connectivity technologyWith wire
-
USB portYes
-
WifiNo
-
USB portYes
-
RS-232 port1
-
RS-232 port1
Representation / realization
-
Languages of the page descriptionEZPL
-
Internal memoryGDPL
-
Flash memoryGEPL
-
Embedded barcodesGZPL
-
Bitmap fonts16 MB
-
Ribbon cutting8 MB
-
Supported image formatsAZTECCODE
-
CertificationCODABAR (NW-7)
-
China post
-
Codablock
-
Code 11
-
Code 128 (A/B/C)
-
Code 39
-
Code 49
-
Code 93
-
Data Matrix
-
EAN128
-
EAN13
-
EAN8
-
GS1 COMPOSITE
-
GS1 DataBar
-
ITF-14
-
Industrial 2/5
-
Interleaved 2/5
-
Logmars
-
MSI
-
Matrix 2/5
-
MaxiCode
-
Micro QR Code
-
MicroPDF417
-
PDF417
-
PLANET
-
POSTNET
-
Plessey
-
QR Code
-
Standard 2/5
-
TELEPEN
-
TLC39
-
UPC-A
-
UPC-E
-
OCR-A
-
OCR-B
-
Manual
-
BMP
-
PCX
-
CE(EMC)
-
FCC Class A
-
CB
-
cUL
-
EAC
-
KCC
-
CCC
Weight and dimensions
-
Width168 mm
-
Depth218 mm
-
Height166 mm
-
Weight1440 g
Environmental conditions
-
Operating relative humidity (H-H)30 - 85 %
-
Operating temperature5 - 40 °C
-
Relative humidity rate (storage)10 - 90 %
-
Temperature out of operation-20 - 50 °C
Technical details
-
Sustainability certificatesCE
Similar products
More product categories from brand Godex
Presentation of product DT4x specifications from brand Godex
Generalities
The brand of the product Godex DT4x is Godex. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Godex DT4x is 4040329200381, 5715063277836. This code allows for the unique identification of the product in the distribution system. The product model Godex DT4x is DT4x | GP-DT4X. This model ensures optimal performance and an enhanced user experience.
Power
The AC input voltage of the Godex DT4x is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Godex DT4x is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Design
The Godex DT4x screen contains Non. This screen offers exceptional image quality for an immersive visual experience. The color of the product Godex DT4x is Noir. This shade gives it a modern and elegant look. The product Godex DT4x order type consists of Boutons. This order type allows for intuitive and practical use.
Print speed
Does the product Godex DT4x have a Color? Non. This feature allows you to choose a product that matches your aesthetic preferences. The printing system of the product Godex DT4x features a Thermique directe printing technology. This technology ensures optimal print quality and precise results. The maximum resolution of the product Godex DT4x is 203 x 203 DPI. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Godex DT4x has a printing speed of 177 mm/sec. This feature ensures optimal efficiency during your prints. The print color of the product Godex DT4x is Noir. This feature ensures optimal print quality and a striking visual appearance. The maximum print width of the product Godex DT4x is 108 mm. This specification ensures optimal print quality for your documents.
Paper management
The maximum length of the product label Godex DT4x is 1.727 m. This specification ensures optimal resource use and efficient paper management. The thickness of the support for the product Godex DT4x is 0.076 - 0.2 mm. This feature ensures optimal quality for your prints. The product Godex DT4x has a supported paper width of 25.4 - 118 mm. This feature ensures optimal compatibility with various paper formats for your prints. The maximum diameter of the Godex DT4x roll is 127 mm. This diameter is essential to ensure optimal compatibility with your paper management equipment.
Weight and dimensions
The width of the product Godex DT4x is 168 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Godex DT4x is 218 mm. This dimension allows for optimal integration into your space. The weight of the product Godex DT4x is 1440 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Godex DT4x is 166 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Connectivity
The product Godex DT4x features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the Godex DT4x have a USB Port? Oui. This feature allows for easy and quick connection to various devices. Does the product Godex DT4x have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Godex DT4x contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The number of USB 2.0 ports on the Godex DT4x is 1. These ports allow for a fast and efficient connection for your devices. The RS-232 port of the Godex DT4x contains 1. This port is essential for ensuring reliable serial communication with other devices.
Technical details
The product Godex DT4x has Sustainability Certificates: CE. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Representation / realization
The internal memory of the product Godex DT4x contains 16 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The product Godex DT4x contains languages from the page description EZPL, GDPL, GEPL, GZPL. This specification allows for adapting the content to users' language preferences. The integrated barcode of the product Godex DT4x is of type AZTECCODE, CODABAR (NW-7), China post, Codablock, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 COMPOSITE, GS1 DataBar, ITF-14, Industrial 2/5, Interleaved 2/5, Logmars, MSI, Matrix 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, PLANET, POSTNET, Plessey, QR Code, Standard 2/5, TELEPEN, TLC39, UPC-A, UPC-E. This barcode allows for quick and efficient reading of information. The product Godex DT4x has a flash memory of 8 Mo. This memory provides an ideal storage capacity for your files, photos, and videos. The product Godex DT4x has bitmap fonts. These fonts are ideal for quick and efficient reading of information. The ribbon cutting of the product Godex DT4x is manual. This cutting allows for optimal precision for all your creative projects. The certification of the product Godex DT4x contains CE(EMC), FCC Class A, CB, cUL, EAC, KCC, CCC. This certification guarantees compliance with the required safety and performance standards. The supported image format of the product Godex DT4x is BMP, PCX. This format ensures optimal image quality for your visual needs.
Environmental conditions
The operating temperature of the product Godex DT4x is 5 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Godex DT4x has an operating relative humidity (H-H) of 30 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Godex DT4x is 10 - 90 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Godex DT4x is -20 - 50 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
