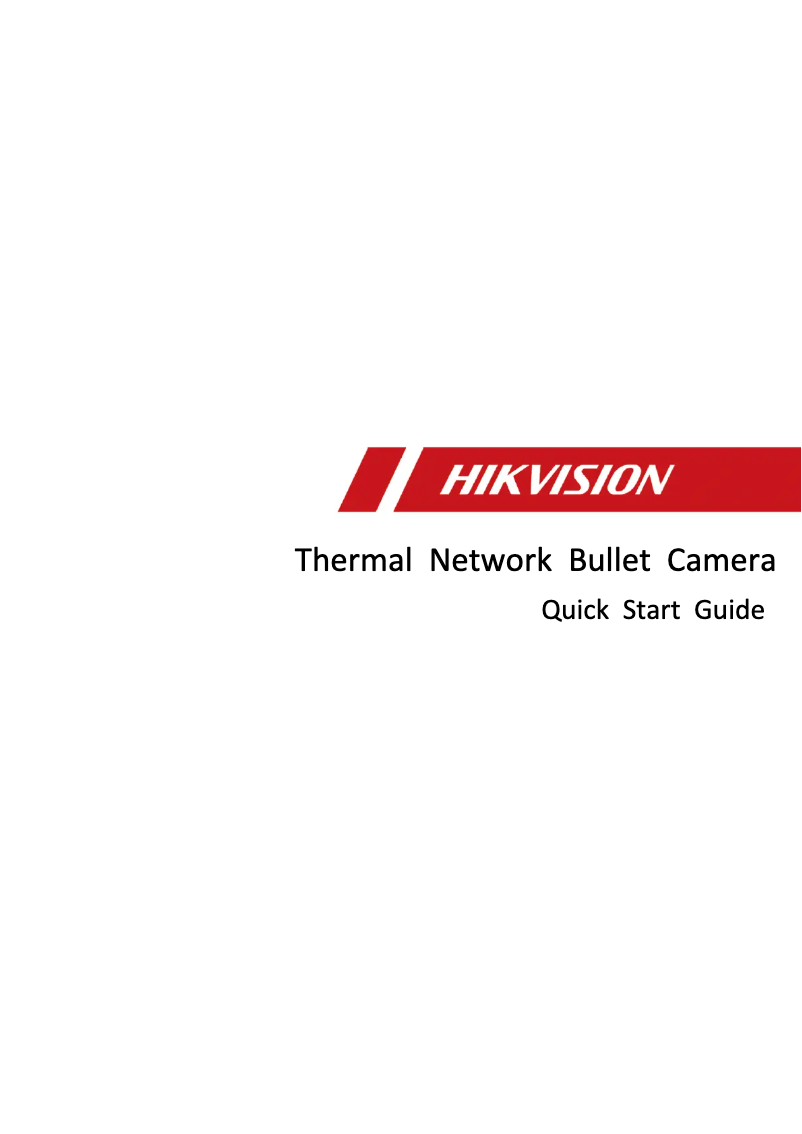

Manuals of product DS-2TD2628T-3/QA
Editorial note
The Hikvision DS-2TD2628T-3/QA camera stands out with its maximum resolution of 2688 x 1520 pixels, providing images and videos of exceptional clarity, ideal for both professional and personal applications. Its thermal detection technology, with a sensitivity of 40 mK, allows for precise analysis of temperature variations, which is particularly useful in many environments. Designed to withstand outdoor conditions, this camera has an IP67 protection rating, ensuring effective protection against moisture and dust. Additionally, its night vision, thanks to infrared LEDs, allows for observation up to 30 meters in darkness, thereby enhancing security. However, some drawbacks must be considered. The lack of Wi-Fi connectivity limits installation flexibility, requiring Ethernet cabling. Furthermore, with a weight of 1550 g, installation may require sturdy mounts for secure mounting. The maximum memory card size, while sufficient for many, may not be suitable for those needing to store large amounts of video data. In terms of user experience, the camera offers an intuitive interface and simplified installation, although its robust design and weight may pose some challenges. Overall performance is excellent, but the purchase and maintenance cost could be a barrier for small businesses. Nevertheless, the product offers good value for money for users with professional needs. In summary, the Hikvision DS-2TD2628T-3/QA is a solid choice for those looking for a high-performance surveillance camera, although its limitations in connectivity and storage capacity should be taken into account before purchase.Score details
User experience
The user experience is good thanks to an intuitive interface and simplified installation, although the weight of 1550 g may require sturdy supports.
Performance
The performance is excellent with a maximum resolution of 2688 x 1520 pixels, ensuring images and videos of exceptional clarity.
Battery life
The camera does not have a built-in battery, but its power supply via PoC ensures continuous and efficient use.
Design
The robust design with an IP67 protection rating provides effective protection against moisture and dust, making it ideal for outdoor use.
Features
Although equipped with many features, the lack of Wi-Fi connectivity limits installation flexibility.
Value for money
The purchase and maintenance cost can be a barrier for small businesses, although it offers good value for money for users with professional needs.
Usability
Overall, usage is easy, but the maximum memory card size of 256 GB may be insufficient for those who need to store large amounts of video data.
Advantages
Resolution 2688 x 1520 pixels, clear images
Thermal detection, sensitivity of 40 mK
IP67 protection rating, water-resistant
Night vision up to 30 meters
Compatible with various network protocols
Disadvantages
No Wi-Fi connectivity
Weight of 1550 g
Memory capacity limited to 256 GB
High purchase and maintenance cost
Night range of 30 meters
Technical Specifications DS-2TD2628T-3/QA
General Information
-
ModelDS-2TD2628T-3/QA
-
Brand
-
Category
-
Type
-
SKU1703071
-
MPN1703071
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
IFOV (spatial resolution)3.33 mRad
-
Thermal sensitivity (NETD)40 mK
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Dynamic range120 dB
-
Number of languages32
-
Languages taken into accountBUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, VIE
Design
-
FormatTerminal
-
Mounting typeWall
-
Product colorBlack, White
-
International Protection Code (IP)IP67
Image sensor
-
Sensor typeCMOS
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Effective sensor resolution (thermal module)256 x 192 pixels
-
Number of sensors1
-
Optical sensor size1/2.7 "
Power
-
Power supply typeDC, PoC
-
Output CC in volts12, 24
-
Energy consumption (Power over Ethernet (PoE))8.5 W
-
Energy consumption (Power over Ethernet (PoE))8.5 W
Camera
-
Camera pixel size12 µm
-
Response waveband8 - 14 µm
-
Camera shutter speed1 - 1/100000 s
-
Field of View (FOV) angle (thermal module)50 x 37.3 °
-
White balanceFluorescent L, Incandescent, Lamp, MWB, Natural
-
Field of view of the lens, horizontal84 °
-
Angle of view of the lens, vertical43.1 °
Objective system
-
Number of lenses-
-
Opening number (thermal model)1
-
Fixed focal length (thermal module)3.6 mm
-
Maximum number of openings1.6
-
Digital zoom4 x
-
Focal length4.3 mm
Video
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels- MP
-
Number of images per second25 fps
-
Supported graphic resolutions320 x 240, 352 x 240, 352 x 288, 640 x 512, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
-
Visual compression formatsH.264H, H.264M, M-JPEG
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
Network
-
Live viewYes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, TP, Bonjour, SFTP, SRTP
-
Live viewYes
-
Number of simultaneous live viewing channels20 channels
-
Number of users32 user(s)
-
User access levelAdministrator, Operator, User
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
Security
-
Temperature range-20 - 550 °C
-
Temperature measurement accuracy2 °C
-
Alarm output channels2
-
Alarm output channels2
-
Temperature sensorYes
-
Temperature sensorYes
-
Temperature sensorYes
Audio
-
Supported audio formatsG.711 A-law
-
G.711 μ-law
-
G.722.1
-
G.726
-
MP2L2
-
PCM
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), SDHC, SDXC
-
Maximum memory card size256 GB
Connectivity
-
BNC output ports1
-
BNC output ports1
-
BNC output ports1
Environmental conditions
-
Operating temperature-40 - 65 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Width106.1 mm
-
Height107 mm
-
Depth321.3 mm
-
Weight1550 g
Packaging contents
-
Number of cameras1
Frequently Asked Questions
What is the weight of the Hikvision DS-2TD2628T-3/QA model?
What is the height of the Hikvision DS-2TD2628T-3/QA model?
What is the width of the Hikvision DS-2TD2628T-3/QA model?
What is the depth of the Hikvision DS-2TD2628T-3/QA model?
Is the manual for the Hikvision DS-2TD2628T-3/QA model available in French?
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD2628T-3/QA specifications from brand Hikvision
Generalities
The Hikvision DS-2TD2628T-3/QA is a camera from the renowned brand Hikvision, famous for its innovative security products. This model is designed to offer superior performance and an optimized user experience. The associated EAN code, 6931847157784, allows for product identification in the distribution system.
Representation / realization
Designed in an island format, the Hikvision DS-2TD2628T-3/QA offers a practical and aesthetic solution for integration into various environments. Its design allows for vertical installation, thus maximizing space utilization. The device operates with wired connectivity, providing flexibility of use. With a spatial resolution of 3.33 mRad and a thermal sensitivity (NETD) of 40 mK, it ensures remarkable image accuracy for detailed analysis. Furthermore, it integrates a wide dynamic range (WRD) and a day/night mode, ensuring adaptability to different lighting conditions.
Design
The Hikvision DS-2TD2628T-3/QA features a bar design, facilitating its use in various contexts. It can be wall-mounted, ensuring quick and efficient installation. Available in black and white, its modern aesthetic easily fits into any decor. With an IP67 protection rating, this device is resistant to moisture and dust, making it ideal for outdoor use.
Image sensor
Equipped with a CMOS sensor, the Hikvision DS-2TD2628T-3/QA guarantees optimal image quality. Its thermal module offers a resolution of 256 x 192 pixels, allowing for precise detection of thermal variations. Its optical sensor size of 1/2.7" also contributes to delivering sharp and detailed images.
Power
The device operates on a DC, PoC power source and can function with a DC output of 12-24 volts. Its maximum consumption of 8.5 W ensures energy efficiency while allowing device power supply via the Ethernet network.
Camera
With pixel sizes of 12 µm, the camera of the Hikvision DS-2TD2628T-3/QA is capable of capturing high-quality images, even in low-light conditions. Its field of view (FOV) is 50 x 37.3°, ideal for extensive coverage. The white balance offers several options for accurate color rendering.
Video
The maximum resolution of the device is 2688 x 1520 pixels, ensuring images and videos of exceptional clarity. It supports multiple graphic resolutions and compression formats such as H.264H and M-JPEG, thus optimizing the quality of video display and recording.
Network
The Hikvision DS-2TD2628T-3/QA has Ethernet/LAN connectivity but does not have Wi-Fi or Bluetooth. It is compatible with many network protocols for effective communication. The device also allows for live viewing with up to 20 simultaneous channels, ideal for applications requiring real-time monitoring.
Night vision
Equipped with effective night vision up to 30 meters, the Hikvision DS-2TD2628T-3/QA uses infrared LEDs to ensure image clarity in darkness.
Security
This device operates within a temperature range of -20 to 550 °C, ensuring its effectiveness in various environmental conditions. It is also equipped with advanced security features, including an IP address filtering system and HTTPS encryption to protect data.
Audio
The Hikvision DS-2TD2628T-3/QA supports multiple audio formats, including G.711 and PCM, ensuring an enriching sound experience when using the device.
Storage support
Although it does not have a built-in hard drive, this device is compatible with MicroSD, SDHC, and SDXC memory cards, with a maximum capacity of 256 Go, thus providing a practical storage solution.
Connectivity
The Hikvision DS-2TD2628T-3/QA is equipped with an Ethernet LAN port and an RS-485 port for robust communications, as well as a BNC output port for easy integration with other video equipment.
Environmental conditions
This model is designed to operate in a relative humidity of 0 to 95%, ensuring its reliability in a variety of environments.
Weight and dimensions
With dimensions of 106.1 mm wide, 107 mm high, and 321.3 mm deep, and a weight of 1550 g, the Hikvision DS-2TD2628T-3/QA is designed to fit easily into your space while facilitating installation.
Packaging content
The product includes a camera, allowing for high-quality image capture right out of the box.
