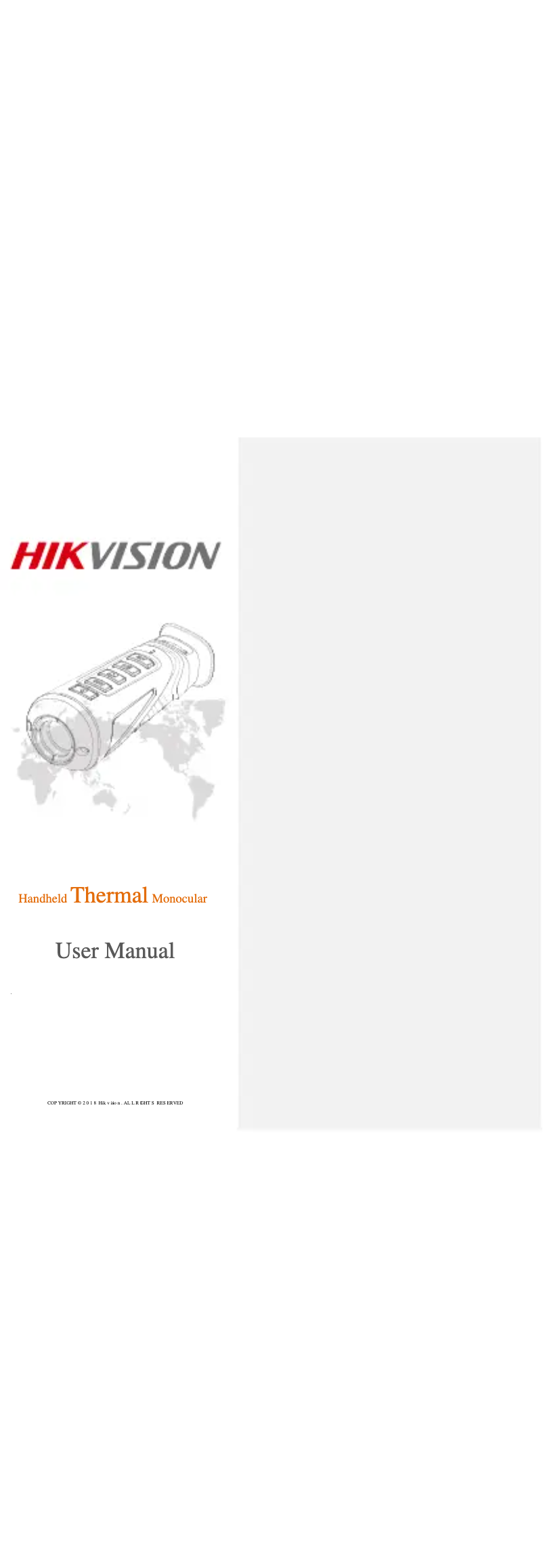

Manual of product DS-2TS03-35UF/W
Editorial note
The Hikvision DS-2TS03-35UF/W stands out for its optimal performance and exceptional image quality. Its modern and compact design, with an elegant black finish, allows it to easily blend into various environments. The integrated OLED screen provides a pleasant user experience, making the device user-friendly and easy to operate. Additionally, its IP67 protection rating ensures remarkable robustness, guaranteeing reliable operation even in challenging environmental conditions. However, some drawbacks are worth noting. The 5-hour battery life may seem insufficient for extended sessions, leading to frequent recharges. The internal storage capacity of 16 GB could quickly become limited, especially during frequent video recordings. Furthermore, the 2x digital zoom and fixed focal length of 35 mm may restrict flexibility in shooting, particularly for distant details. Finally, the thermal sensor resolution of 384 x 288 pixels may appear low compared to other competing models offering higher resolutions. Overall, the Hikvision DS-2TS03-35UF/W is a solid choice for those seeking a high-performing and durable surveillance device, but it is important to consider its limitations in terms of battery life and flexibility.Score details
User experience
The user experience is positive thanks to the OLED screen that facilitates use and a modern design that fits well in various environments.
Performance
The performance is optimal for image quality and monitoring, but may be limited by the thermal sensor resolution of 384 x 288 pixels.
Battery life
The 5-hour battery life is adequate but may be insufficient for extended sessions, requiring frequent recharges.
Design
The design is modern and compact, with an elegant black finish that makes it attractive and easy to integrate into different environments.
Robustness
The IP67 protection rating ensures exceptional robustness and durability, allowing use in harsh environmental conditions.
Features
The built-in Wi-Fi connectivity is an asset, but the 16 GB internal storage capacity can become limited quickly during frequent recordings.
Advantages
Exceptional image quality
Compact and modern design
Resistance to extreme conditions
Built-in Wi-Fi connectivity
Battery life of up to 5 hours
Disadvantages
Battery life limited to 5 hours
Internal storage of only 16 GB
Insufficient 2x digital zoom
Restrictive fixed focal length of 35 mm
Low thermal resolution of 384 x 288 pixels
Technical Specifications DS-2TS03-35UF/W
General Information
-
ModelDS-2TS03-35UF/W
-
Brand
-
Category
-
Type
-
SKU1240321
-
MPN1240321
Weight and dimensions
-
Width189 mm
-
Depth74 mm
-
Height66 mm
-
Weight460 g
Design
-
Product colorBlack
-
Built-in screenYes
-
Screen typeOLED
-
International Protection Code (IP)IP67
-
Operating temperature-30 - 55 °C
-
Screen size0.39 "
-
Screen resolution1024 x 768 pixels
Battery
-
Battery technologyLithium
-
Battery capacity- mAh
-
Maximum battery life5 h
Representation / realization
-
Detection distance (vehicles)3157 m
-
Detection distance (humans)1029 m
-
Recognition distance (vehicles)789 m
-
Recognition distance (humans)257 m
-
Identification distance (vehicles)395 m
-
Identification distance (humans)129 m
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Digital zoom2 x
-
Value1
-
Horizontal viewpoint10.66 °
-
Vertical viewpoint8 °
-
IFOV (spatial resolution)0.49 mRad
-
Thermal sensitivity (NETD)35 mK
-
Internal storage capacity16 Go
Objective system
-
Sensor type-
-
Sensor resolution (thermal module)384 x 288 pixels
-
Fixed Focal Length35 mm
Features
-
WifiYes
Power
-
Input voltage5 V
-
Input current2 A
-
Input power2 W
Frequently Asked Questions
What is the weight of the Hikvision DS-2TS03-35UF/W model?
What is the screen size of the Hikvision DS-2TS03-35UF/W?
What is the height of the Hikvision DS-2TS03-35UF/W model?
What is the screen resolution of the Hikvision DS-2TS03-35UF/W?
What is the width of the Hikvision DS-2TS03-35UF/W model?
What is the depth of the Hikvision DS-2TS03-35UF/W model?
What is the storage capacity of the Hikvision DS-2TS03-35UF/W?
Is the manual for the Hikvision DS-2TS03-35UF/W available in French?
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TS03-35UF/W specifications from brand Hikvision
General Information
The model Hikvision DS-2TS03-35UF/W is designed by the brand Hikvision, known for its innovation and quality in the field of surveillance devices. This model, identified by the EAN code 6954273692667, is designed to offer high-level performance and an optimized user experience.
Weight and Dimensions
With a width of 189 mm, a depth of 74 mm, and a height of 66 mm, the Hikvision DS-2TS03-35UF/W is compact and easy to integrate into various spaces. Its weight of 460 g ensures easy handling while remaining robust enough for daily use.
Design
Coated in an elegant black finish, this device features a modern design. It is equipped with an OLED screen, providing clear and immersive display quality. With an IP67 protection rating, the model is resistant to water and solid particles, making it ideal for use in harsh environments. Its operating temperature ranges from -30 to 55 °C, ensuring reliable operation in various climatic conditions. The screen measures 0.39 inches with a resolution of 1024 x 768 pixels, offering a pleasant visual experience.
Battery
Equipped with a hybrid nickel-metal (NiMH) battery, the Hikvision DS-2TS03-35UF/W ensures excellent performance and durability. Although its maximum battery life is 5 hours, it is ideal for moderate work sessions.
Representation / Performance
This model allows for precise detection thanks to its advanced capabilities: a vehicle detection range of up to 3157 m and human detection up to 1029 m. Vehicle recognition is possible up to 789 m, while human recognition can reach 257 m. The 2x digital zoom allows for capturing details from a distance, although this may limit analytical capabilities in certain situations. The integrated thermal module ensures effective heat detection, while the spatial resolution of 0.49 mRad guarantees optimal image accuracy. The internal storage capacity of 16 Go allows for retaining a significant amount of data.
Lens System
The thermal sensor of the Hikvision DS-2TS03-35UF/W offers a resolution of 384 x 288 pixels, ensuring satisfactory image quality for analyses. Its fixed focal length of 35 mm allows for sharp images, although this may restrict flexibility depending on shooting needs.
Features
The model is also equipped with Wi-Fi connectivity, allowing for fast and reliable wireless connection, thus facilitating data transfer and file access.
Power
It operates with an input voltage of 5 V and an input current of 2 A, ensuring optimal performance and energy efficiency. The input power is 2 W, guaranteeing effective use.
