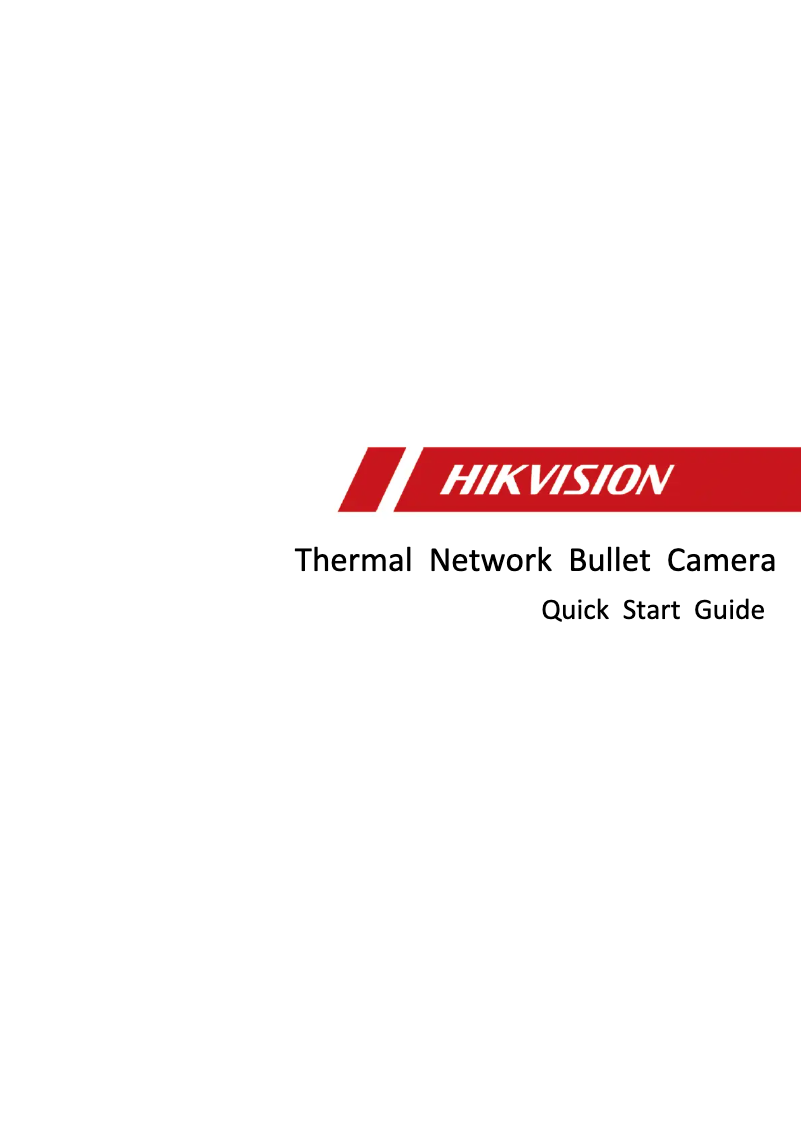

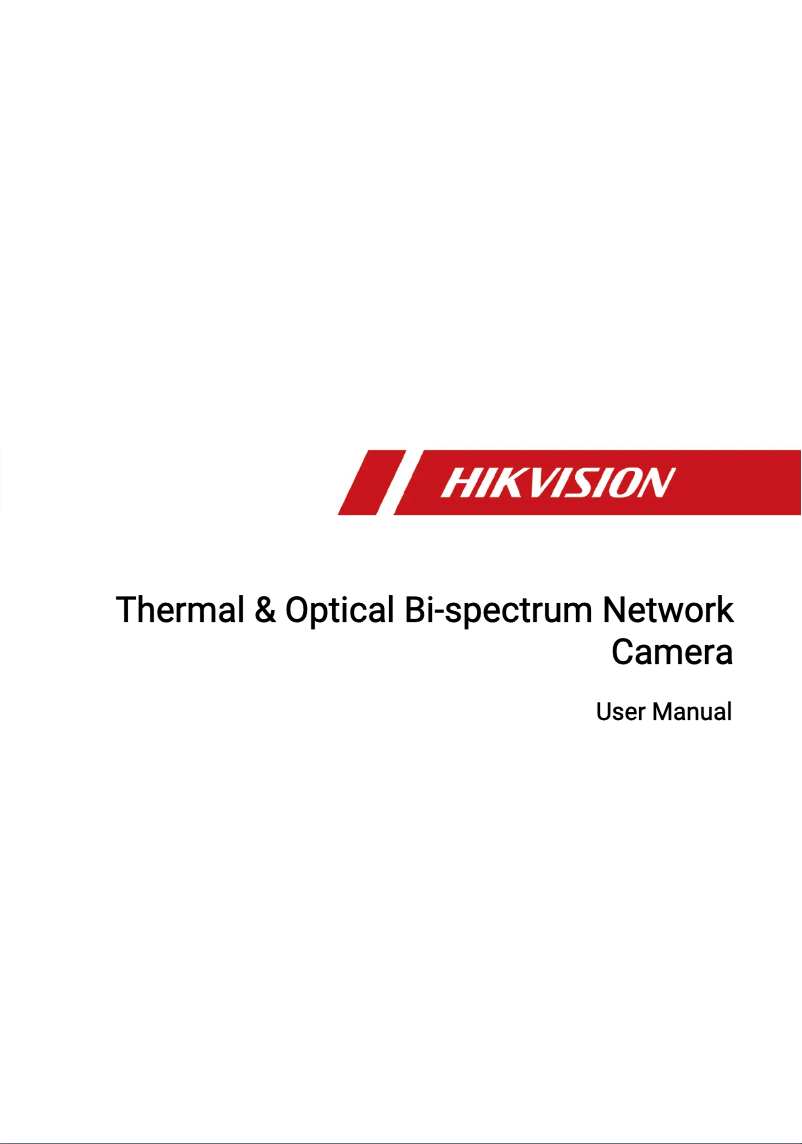

Manuals of product DS-2TD2628T-7/QA
Editorial note
The Hikvision DS-2TD2628T-7/QA product stands out with its maximum resolution of 2688 x 1520 pixels, providing images of exceptional clarity, ideal for precise surveillance. Its effective night vision up to 30 meters, thanks to infrared LEDs, allows for continuous monitoring even in darkness. The ability to manage up to 32 users simultaneously is also an asset for environments requiring multi-user access. Additionally, its advanced connectivity technology with support for IPv4/IPv6 ensures reliable and secure communication. However, some limitations are worth noting. The lack of Wi-Fi connectivity may restrict usage flexibility in environments where Ethernet cabling is not practical. Furthermore, the absence of an integrated hard drive requires users to ensure they have compatible memory cards for data storage. While the night vision range is respectable, it may not be sufficient for applications requiring monitoring over longer distances. The weight of 1550 g may also make installation less convenient, especially in difficult positions. Finally, the limited number of Ethernet ports may restrict connectivity in demanding environments. Overall, the user experience is positive thanks to an intuitive interface and well-thought-out features. The compact and aesthetic design of the device facilitates wall installation, allowing for seamless integration into various environments. However, certain aspects, such as the lack of Wi-Fi connectivity and the weight, should be considered by potential buyers.Score details
User experience
The user experience is overall positive thanks to an intuitive interface and well-thought-out features, such as the management of 32 simultaneous users.
Performance
The maximum resolution of 2688 x 1520 pixels provides images of exceptional clarity, ideal for monitoring and documentation.
Battery life
The night vision up to 30 meters is effective, but a limitation in range may not be suitable for applications requiring longer-distance monitoring.
Design
The compact and aesthetic design of the device allows for easy wall installation, facilitating its integration into various environments.
Value for money
Although the product offers good performance, the lack of Wi-Fi connectivity and built-in hard drive may limit its flexibility of use.
connectivity
The advanced connectivity technology is an asset, but the limited number of Ethernet ports could restrict connectivity in demanding environments.
Robustness
The weight of 1550 g may make installation less convenient, especially in difficult positions or on fragile supports.
Advantages
Resolution 2688 x 1520 pixels, clear images
Night vision up to 30 meters
Supports up to 32 simultaneous users
Advanced connectivity with IPv4/IPv6
Compact design, easy wall installation
Disadvantages
No Wi-Fi connectivity.
No built-in hard drive.
Night vision limited to 30 m.
Weight of 1550 g makes it difficult to install.
Limited number of Ethernet ports.
Technical Specifications DS-2TD2628T-7/QA
General Information
-
ModelDS-2TD2628T-7/QA
-
Brand
-
Category
-
Type
-
SKU1703115
-
MPN1703115
Representation / realization
-
TypeIP security camera
-
IFOV (spatial resolution)1.74 mRad
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Number of languages32
-
Languages taken into accountBUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, VIE
-
Thermal sensitivity (NETD)35 mK
-
Dynamic range120 dB
Objective system
-
Number of lenses-
-
Fixed focal length (thermal module)6.9 mm
-
Opening number (thermal model)1
-
Focal length6.4 mm
-
Digital zoom4 x
-
Maximum number of openings1.6
Camera
-
Field of View (FOV) angle (thermal module)24.9 x 18.7 °
-
Field of view of the lens, horizontal53 °
-
Angle of view of the lens, vertical28 °
-
White balanceFluorescent L, Incandescent, Lamp, MWB, Natural
-
Camera pixel size12 µm
-
Response waveband8 - 14 µm
-
Camera shutter speed1 - 1/100000 s
Network
-
Number of users32 user(s)
-
User access levelAdministrator, Operator, User
-
Ethernet/LANYes
-
Number of simultaneous live viewing channels20 channels
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsNo
-
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, TP, Bonjour, SFTP, SRTP
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), SDHC, SDXC
-
Maximum memory card size256 GB
Connectivity
-
BNC output ports1
-
BNC output ports1
-
BNC output ports1
Security
-
Alarm output channels2
-
Alarm output channels2
-
HTTPS encryptionYes
-
Temperature range-20 - 550 °C
-
Temperature measurement accuracy2 °C
-
HTTPS encryptionYes
-
HTTPS encryptionYes
Design
-
FormatTerminal
-
Mounting typeWall
-
Product colorBlack, White
-
International Protection Code (IP)IP67
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.7 "
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Effective sensor resolution (thermal module)256 x 192 pixels
Power
-
Power supply typeDC, PoC
-
Energy consumption (Power over Ethernet (PoE))8.5 W
-
Energy consumption (Power over Ethernet (PoE))8.5 W
-
Output CC in volts12, 24
Environmental conditions
-
Operating temperature-40 - 65 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Width106.1 mm
-
Depth321.3 mm
-
Height107 mm
-
Weight1550 g
Packaging contents
-
Number of cameras1
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
Video
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels- MP
-
Visual compression formatsH.264H, H.264M, M-JPEG
-
Supported graphic resolutions320 x 240,352 x 240,352 x 288,640 x 512,704 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080),2688 x 1520
-
Number of images per second25 ips
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
Audio
-
Supported audio formatsG.711 A-law
-
G.711 μ-law
-
G.722.1
-
G.726
-
MP2L2
-
PCM
Frequently Asked Questions
What is the weight of the Hikvision DS-2TD2628T-7/QA?
What is the height of the Hikvision DS-2TD2628T-7/QA?
What is the width of the Hikvision DS-2TD2628T-7/QA?
What is the depth of the Hikvision DS-2TD2628T-7/QA?
Is the manual for the Hikvision DS-2TD2628T-7/QA available in French?
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD2628T-7/QA specifications from brand Hikvision
Generalities
The Hikvision DS-2TD2628T-7/QA is a camera from the brand known for its innovation and quality in the surveillance device sector. This model, identified by the EAN code 6931847157807, offers exceptional performance and an enhanced user experience, ensuring optimal use in various security environments.
Representation / realization
Designed in an island design, the Hikvision DS-2TD2628T-7/QA combines functionality and aesthetics, optimizing the available space. With a spatial resolution of 1.74 mRad, this device provides remarkable image accuracy for detailed analysis. It supports vertical installation, offering flexibility and practicality. Its wired connectivity ensures use without the constraints of cables. Furthermore, it features a wide dynamic range and a day/night mode, allowing adaptation to different lighting conditions. This model supports up to 32 different languages, facilitating access for an international audience. Its thermal sensitivity of 35 mK ensures precise detection of temperature variations, while its dynamic range of 120 dB allows for quality sound reproduction.
Lens system
The Hikvision DS-2TD2628T-7/QA is equipped with a fixed focal length of 6.9 mm (thermal module) which guarantees precise shots. The aperture number of 1 optimizes thermal performance, while the focal length of 6.4 mm defines the field of view. The 4x digital zoom allows capturing distant details with clarity, and the maximum aperture number of 1.6 ensures flexibility of use.
Camera
With a field of view (FOV) of 24.9 x 18.7 ° (thermal module) and a field of view of 53 °, the DS-2TD2628T-7/QA allows for extensive coverage during monitoring. The white balance offers several options to adjust the color temperature, ensuring images that are true to reality. The pixel size of 12 µm promotes the capture of high-quality images, even in low-light conditions. The shutter speed of 1 - 1/100000 s allows for sharp shots, even in motion.
Network
The DS-2TD2628T-7/QA model can manage up to 32 simultaneous users, making this device ideal for environments requiring multi-user access. It offers live viewing and supports 20 simultaneous viewing channels, allowing for a smooth monitoring experience. Although it is equipped with an Ethernet/LAN port, it does not have Wi-Fi or Bluetooth connectivity. Supported network protocols include IPv4/IPv6, ensuring secure communication.
Storage support
This model does not include a built-in hard drive, but it is equipped with a memory card reader compatible with MicroSD (TransFlash), SDHC, and SDXC formats, allowing for convenient storage. The maximum capacity of the memory card is 256 GB.
Connectivity
The Hikvision DS-2TD2628T-7/QA has an Ethernet LAN port (RJ-45) and an RS-485 port for robust communications. A BNC output port is also integrated to facilitate connection to various video equipment.
Security
This model integrates two alarm input and output channels, facilitating integration with other security systems. It is also equipped with a temperature sensor operating in a range of -20 to 550 °C. The thermal measurement accuracy is 2 °C, and features such as IP address filtering and HTTPS encoding enhance data security.
Design
The bar format of the DS-2TD2628T-7/QA and its wall mounting facilitate its integration into various environments. Available in black and white, these colors add a modern touch to the device. The model has an IP67 protection rating, ensuring resistance to dust and water.
Image sensor
Equipped with a CMOS sensor, the Hikvision DS-2TD2628T-7/QA ensures optimal image quality. Its sensor size of 1/2.7" and thermal resolution of 256 x 192 pixels guarantee precise detection of temperature variations.
Power
The DS-2TD2628T-7/QA operates with a DC power source, PoC, with a maximum consumption of 8.5 W. It is designed to power devices via the Ethernet network, thus reducing the need for wiring. The DC output is 12/24 volts.
Environmental conditions
This model operates in a temperature range of -40 to 65 °C and can function in a relative humidity of 0 to 95%, making it suitable for various usage environments.
Weight and dimensions
The dimensions of the Hikvision DS-2TD2628T-7/QA are 106.1 mm in width, 321.3 mm in depth, and 107 mm in height, with a weight of 1550 g, facilitating its installation and handling.
Packaging content
The product comes with a single camera, allowing for the capture of high-quality images for various surveillance applications.
Night vision
The Hikvision DS-2TD2628T-7/QA is equipped with a night vision feature, allowing for clear observation up to 30 meters, thanks to infrared LEDs that ensure image clarity in darkness.
Video
Its maximum resolution of 2688 x 1520 pixels ensures images of exceptional clarity. It supports various compression formats such as H.264H, H.264M, and M-JPEG, ensuring optimal image quality. Supported graphic resolutions range from 320 x 240 to 2688 x 1520, with a frame rate of 25 fps for smooth playback. Additionally, advanced noise reduction technology is integrated to minimize sound distractions.
Audio
Compatible audio formats include G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, and PCM, ensuring an enriching listening experience.
