Manuals of product DS-2TD4228T-10/W
Editorial note
The Hikvision DS-2TD4228T-10/W stands out with its exceptional resolution of 2688 x 1520 pixels, ensuring clear and detailed images, ideal for precise analysis. Its integrated fire detection technology provides enhanced security by quickly detecting sources of heat or smoke. Additionally, it offers an extensive operational temperature range of -40 to 65 °C, allowing for reliable use in various environments. Wired connectivity and support for multiple network protocols ensure effective and stable communication, while providing a smooth user experience thanks to its night vision functionality. However, the product has some drawbacks. The lack of Wi-Fi connectivity limits installation flexibility, requiring Ethernet cables for a stable network connection. Moreover, its weight of 3900 g may complicate installation, especially for mounting on delicate surfaces. The absence of internal storage forces users to rely on external memory cards, which may not suit those looking for an all-in-one solution. Finally, its potentially high cost may not be accessible for all budgets, particularly for casual users. Overall, the user experience is positive, supported by solid technical features and a good level of support provided with the user manual and quick start guide. However, it is essential to consider the limitations regarding connectivity and weight before making a purchasing decision.Score details
User experience
The user experience is generally positive, thanks to an intuitive interface and an effective night vision feature, allowing for monitoring even in low-light conditions.
Performance
The exceptional resolution of 2688 x 1520 pixels ensures clear and detailed images, ideal for precise analysis, while the thermal sensitivity, although appreciated, could be improved.
Design
The weight of 3900 g can make installation more complex, especially in delicate areas, but the bar design allows for aesthetic integration in various contexts.
Value for money
The potentially high cost may not suit all budgets, especially for casual users, making it an investment to consider.
Features
The integrated fire detection technology and the wide operational temperature range of -40 to 65 °C add significant value, although the lack of Wi-Fi connectivity may limit installation flexibility.
Robustness
The product is designed to withstand various conditions, but the absence of internal storage requires the use of external memory cards, which can be a disadvantage for some users.
Usability
The wired connectivity feature and support for multiple network protocols ensure effective communication, although the lack of Wi-Fi limits some installation options.
Support

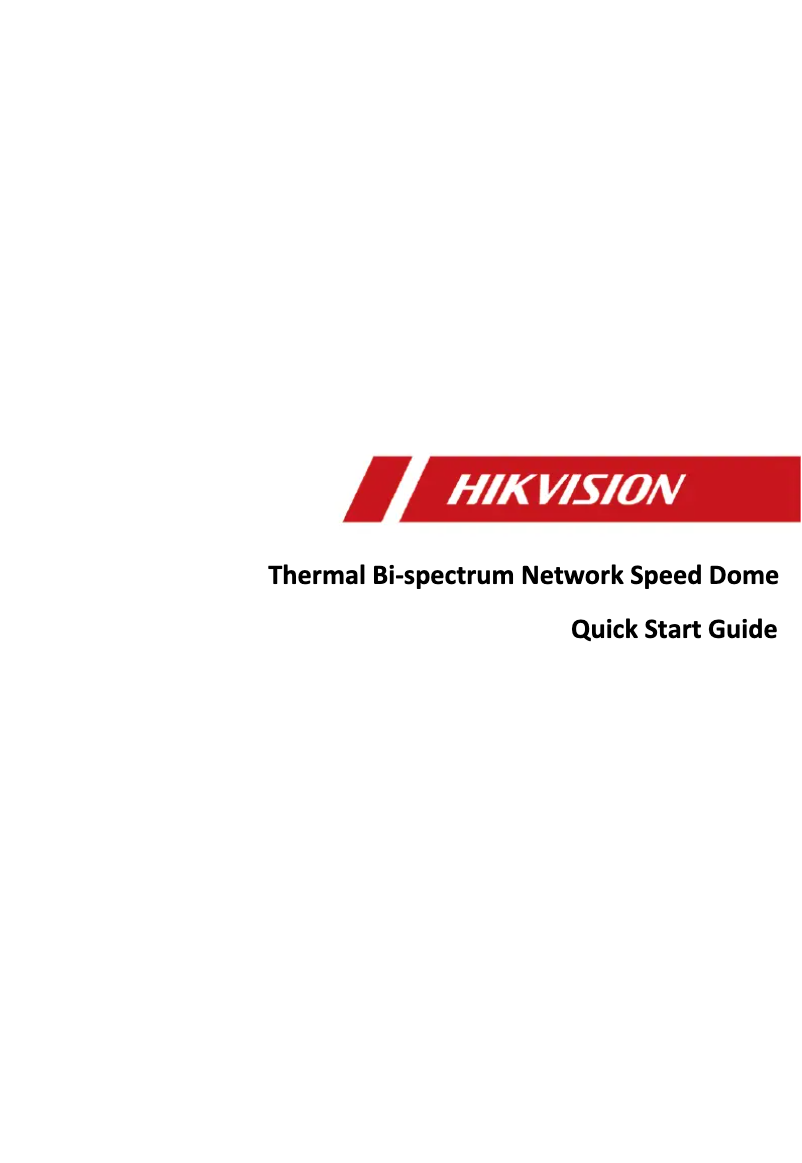

The product comes with a user manual and a quick start guide, providing a good level of support for installation and use.
Documentation
The documentation is comprehensive with a total of 162 pages, providing detailed information that facilitates understanding and use of the product.
Advantages
Resolution 2688 x 1520 pixels
Integrated fire detection
Operating temperature -40 to 65 °C
Wired connectivity and various protocols
Effective night vision
Disadvantages
No Wi-Fi connectivity, limited installation.
Heavyweight, complex installation.
Lack of internal storage, dependence on cards.
2 °C accuracy insufficient for certain applications.
High cost, not suitable for all budgets.
Technical Specifications DS-2TD4228T-10/W
General Information
-
ModelDS-2TD4228T-10/W
-
Brand
-
Category
-
Type
-
SKU1703102
-
MPN1703102
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Large dynamic range (WRD)Yes
-
Number of languages32
-
Languages taken into accountBUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, UKR, VIE
-
Thermal sensitivity (NETD)35 mK
-
IFOV (spatial resolution)1.7 mRad
-
Dynamic range120 dB
Security
-
Temperature range-20 - 550 °C
-
Temperature measurement accuracy2 °C
-
Temperature sensorYes
-
Number of detectable fire points10
-
Alarm input channels7
-
Alarm output channels2
-
Temperature sensorYes
Video
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels4 MP
-
Visual compression formatsH.264, H.264+, H.265, H.265+
-
Supported graphic resolutions352 x 288, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
-
Number of images per second30 ips
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
Network
-
Number of users32 user(s)
-
User access levelAdministrator, Operator, User
-
Ethernet/LANYes
-
Number of simultaneous live viewing channels20 channels
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Storage support
-
Integrated hard driveNo
-
Compatible memory cardsSD, SDHC, SDXC
-
Maximum memory card size256 GB
Connectivity
-
RS-485 ports1
-
RS-485 ports1
Design
-
FormatDome
-
Mounting typeCeiling
-
Product colorBlack, White
-
International Protection Code (IP)IP67
Camera
-
Minimum illumination0.05 lux
-
Field of View (FOV) angle (thermal module)18 x 13.5 °
-
Field of view of the lens, horizontal58.4 °
-
Angle of view of the lens, vertical33.8 °
-
Inclination angle-5 - 90 °
-
Tilt speed105 °/sec
-
Panoramic speed200 °/sec
-
Panoramic0 - 360 °
-
Panoramic speed200 °/sec
-
Pan tilt preset speed240 °/sec
-
Camera pixel size12 µm
-
Response waveband8 - 14 µm
-
Camera shutter speed1 - 1/100000 s
Management features
-
Web BrowserYes
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8 "
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Effective sensor resolution (thermal module)256 x 192 pixels
Power
-
Power supply typeDC, PoE
-
Energy consumption (Power over Ethernet (PoE))30 W
-
Energy consumption (Power over Ethernet (PoE))30 W
-
Output CC in volts24, 48
Environmental conditions
-
Operating temperature-40 - 65 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Width185 mm
-
Depth163 mm
-
Height305 mm
-
Weight3900 g
Objective system
-
Number of lenses-
-
Maximum number of openings4.4
-
Minimum opening amount1.2
-
Fixed focal length (thermal module)10 mm
Packaging contents
-
Number of cameras1
Night vision
-
Night visionYes
Audio
-
Supported audio formatsG.711 A-law
-
G.711 μ-law
-
G.722.1
-
G.726
-
MP2L2
-
PCM
Frequently Asked Questions
What is the weight of the Hikvision DS-2TD4228T-10/W?
What is the height of the Hikvision DS-2TD4228T-10/W?
What is the width of the Hikvision DS-2TD4228T-10/W?
What is the depth of the Hikvision DS-2TD4228T-10/W?
Is the manual for the Hikvision DS-2TD4228T-10/W available in French?
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD4228T-10/W specifications from brand Hikvision
General Information
The Hikvision DS-2TD4228T-10/W model, from the renowned brand Hikvision, is a high-end camera that combines performance and innovation. With a unique EAN code, 0842571143232, 6931847154097, it is easily identifiable in the distribution system.
Design and Installation
This model features an island design that optimizes space while offering a modern aesthetic. Its vertical installation capability allows for easy integration into various environments. Although the connectivity is wired, it ensures practical use without the inconveniences of wireless connections. Furthermore, the wide dynamic range (WRD) guarantees exceptional performance in various lighting scenarios.
Multilingual Support and Sensitivity
The DS-2TD4228T-10/W supports 32 languages, facilitating its use by a diverse international audience. With a thermal sensitivity (NETD) of 35 mK, this device allows for the detection of temperature variations with remarkable accuracy. Its spatial resolution of 1.7 mRad ensures optimal image clarity for detailed analysis.
Security Features
This model operates within an extended temperature range of -20 to 550 °C, ensuring reliable use in diverse environments. Its temperature measurement accuracy of 2 °C, while sufficient for many applications, may not be suitable for scenarios requiring finer detection. The built-in fire detection function, capable of spotting up to 10 fire points, enhances safety by quickly identifying any source of heat or smoke.
Video Capabilities
With a maximum resolution of 2688 x 1520 pixels, the DS-2TD4228T-10/W provides images of exceptional clarity, perfect for professional applications. It supports multiple compression formats such as H.264 and H.265, ensuring optimal visual quality. With a frame rate of 30 frames per second, the videos are smooth, and the noise reduction technology ensures clear sound, minimizing environmental distractions.
Connectivity and Network
The model can support up to 32 users simultaneously, with varying access levels (Administrator, Operator, User). Live viewing capability is available, with a maximum of 20 simultaneous channels. However, the lack of Wi-Fi connectivity may be a drawback for some users, as an Ethernet connection is required. Supported network protocols, such as IPv4 and IPv6, ensure reliable communication.
Storage
The DS-2TD4228T-10/W does not have a built-in hard drive, requiring the use of compatible external memory cards (SD, SDHC, SDXC) of up to 256 GB for data storage.
Design and Dimensions
This model, with a bar-type design, is easily mounted on the ceiling. Its modern color, available in black and white, integrates harmoniously into many decors. With an IP67 protection rating, it is resistant to dust and moisture, making it suitable for outdoor use.
Camera and Performance
With a minimum illumination of 0.05 lux, this device excels in low-light conditions. Its field of view of 58.4 ° and its ability to pan 360 ° ensure extensive coverage of monitored areas. The pan speed of 200 °/sec allows for quick adjustments, and the pixel size of 12 µm contributes to high-quality images.
Operating Conditions
This model operates efficiently within a temperature range of -40 to 65 °C and can function in relative humidity from 0 to 95 %, making it versatile for different environmental conditions.
Weight and Dimensions
The DS-2TD4228T-10/W measures 185 mm in width, 163 mm in depth, and 305 mm in height, with a weight of 3900 g, which may require special attention during installation in more delicate spaces.
Audio
This model supports multiple audio formats, such as G.711 and PCM, ensuring a quality listening experience.
Night Vision
The night vision function allows for effective monitoring even in darkness, thereby increasing the security of monitored spaces.
