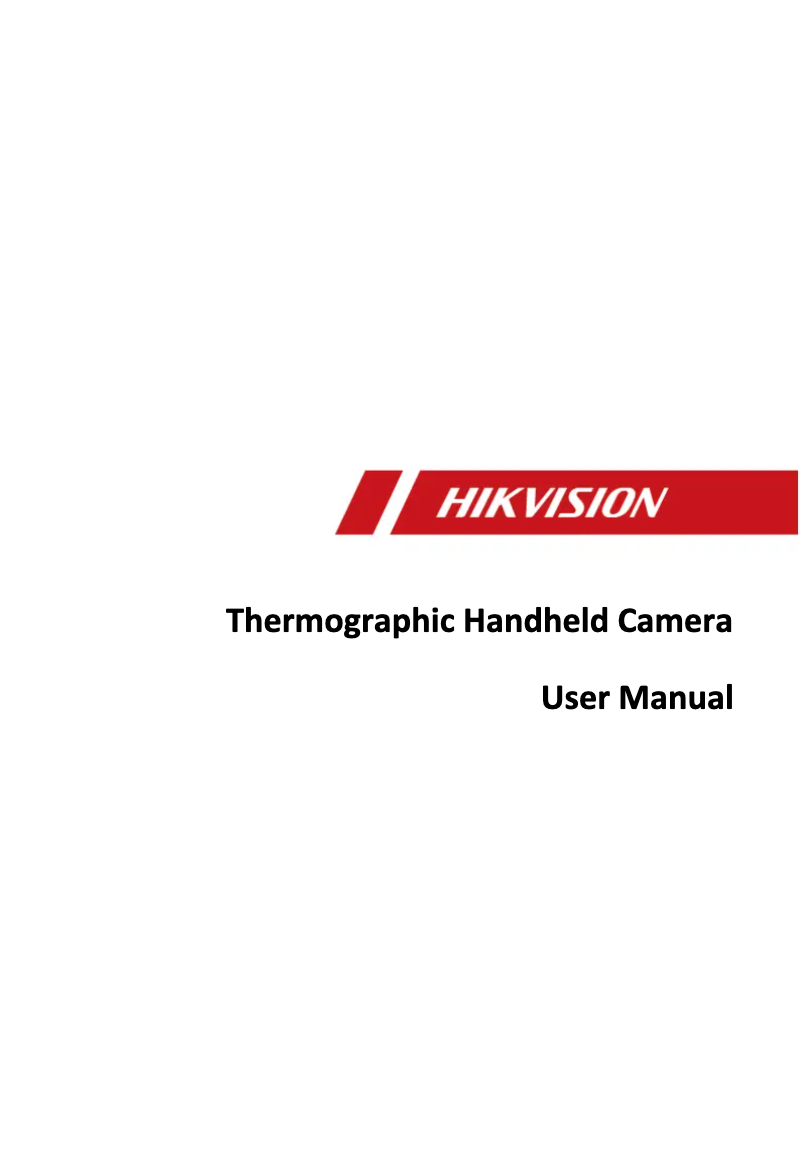

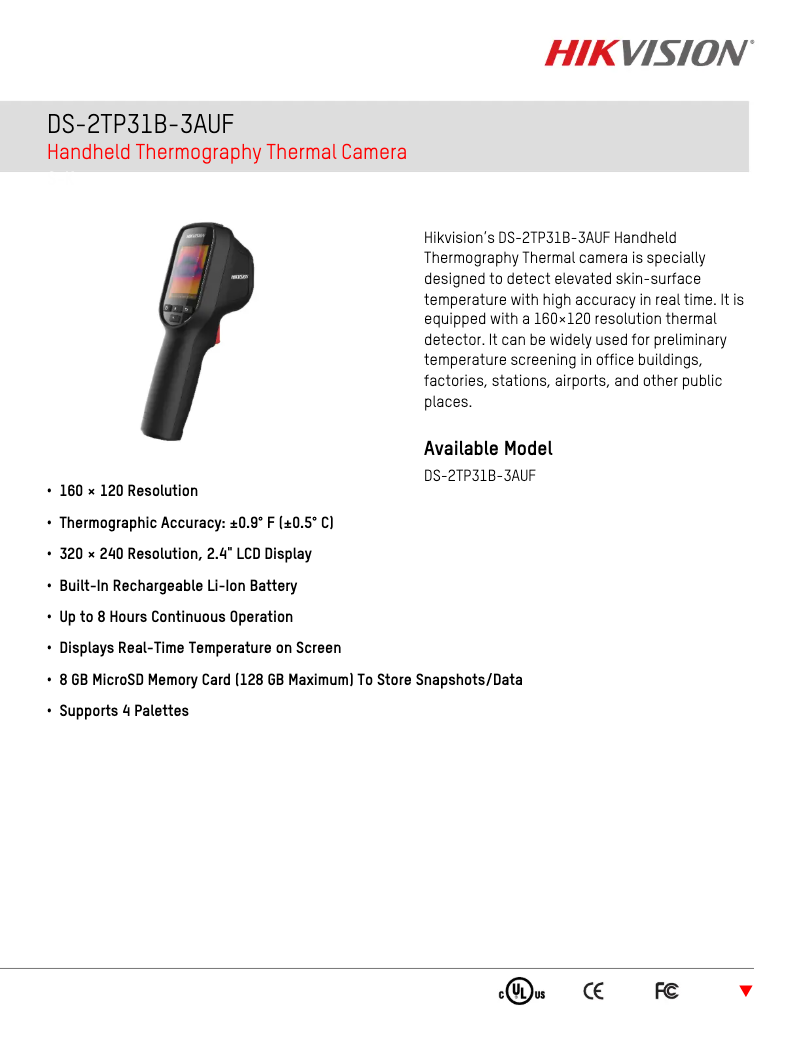

Manuals of product DS-2TP31B-3AUF
Editorial note
The Hikvision DS-2TP31B-3AUF is a camera that stands out for its optimal image quality, thanks to a VOx Uncooled Focal Plane Arrays sensor offering a resolution of 160 x 120 pixels. This specification allows for precise analyses, although some users may find this resolution insufficient for applications requiring fine details. In terms of design, this device is compact and lightweight, weighing only 350 g, which makes it easy to handle and integrate into various spaces. However, some users might find it a bit heavy for prolonged use. Additionally, the built-in 2.4-inch LCD screen, while offering acceptable display quality, may seem small for detailed analyses. The battery life, which reaches up to 8 hours, is satisfactory for daily use, but may require frequent recharges during extended missions. The IP54 protection against dust and moisture ensures durability in varied conditions, although it may not be sufficient for very demanding usage environments. In summary, the Hikvision DS-2TP31B-3AUF is a high-performing camera, ideal for general applications, but with certain limitations in terms of resolution and battery life that may not suit all users.Score details
User experience
The user experience is pleasant thanks to the integrated 2.4-inch LCD screen, offering decent display quality, although some may find it a bit small for detailed analyses.
Performance
The image quality is optimal with a VOx Uncooled Focal Plane Arrays sensor, but the resolution of 160 x 120 pixels may be insufficient for applications requiring very fine details.
Battery life
The battery life of up to 8 hours is reasonable for daily use, but may not be enough for extended missions, requiring frequent recharges.
Design
The compact and lightweight design of 350 g makes it easy to handle and integrate into various spaces, although some users may find it a bit heavy for prolonged use.
Robustness
The IP54 protection against dust and moisture ensures durability in varied conditions, but may not be sufficient for very demanding usage environments.
Advantages
Image resolution of 160 x 120 pixels
Compact and lightweight design of 350 g
2.4-inch LCD screen, 320 x 240 pixels
Battery life of up to 8 hours
IP54 protection against dust and moisture
Disadvantages
Limited thermal resolution of 160 x 120 pixels
8-hour battery life insufficient for long missions
Weight of 350 g can cause fatigue
2.4-inch screen too small for analysis
IP54 protection insufficient for demanding environments
Technical Specifications DS-2TP31B-3AUF
General Information
-
ModelDS-2TP31B-3AUF
-
Brand
-
Category
-
Type
-
SKU1240347
-
MPN1240347
Weight and dimensions
-
Width59 mm
-
Depth117 mm
-
Height196 mm
-
Weight350 g
Objective system
-
Sensor typeVOx Uncooled Focal Plane Arrays
-
Sensor resolution (thermal module)160 x 120 pixels
-
Fixed Focal Length3.1 mm
Representation / realization
-
Infrared spectrum band8 - 14 µm
-
Thermal sensitivity (NETD)40 mK
-
IFOV (spatial resolution)5.48 mRad
-
Value1.1
-
Temperature range30 - 45 °C
-
Internal storage capacity8 Go
Design
-
Material of the case/body-
-
Product colorBlack
-
Screen resolution320 x 240 pixels
-
Built-in screenYes
-
Screen typeLCD
-
Screen size2.4 "
-
Operating temperature-10 - 50 °C
-
International Protection Code (IP)IP54
Battery
-
Battery capacity- mAh
-
Battery technologyLithium-Ion (Li-Ion)
-
Maximum battery life8 h
Power
-
Input voltage3.7 V
-
Input current0.4 A
-
Input power1.2 W
Connectivity
-
USB portYes
Packaging contents
-
Included wrist strapYes
Frequently Asked Questions
What is the weight of the Hikvision DS-2TP31B-3AUF model?
What is the screen size of the Hikvision DS-2TP31B-3AUF?
What is the height of the Hikvision DS-2TP31B-3AUF model?
What is the resolution of the screen of the Hikvision DS-2TP31B-3AUF?
What is the width of the Hikvision DS-2TP31B-3AUF?
What is the depth of the Hikvision DS-2TP31B-3AUF model?
What is the storage capacity of the Hikvision DS-2TP31B-3AUF?
Is the manual for the Hikvision DS-2TP31B-3AUF available in French?
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TP31B-3AUF specifications from brand Hikvision
General Information
The Hikvision DS-2TP31B-3AUF model, from the brand known for its innovation and quality in the security field, offers optimal performance for an enriching user experience. It is identifiable by its unique EAN code: 6941264048145, 0842571133172, 8435325452227, 5420016872654, thus facilitating its management in distribution systems.
Weight and Dimensions
This device has compact dimensions: 59 mm in width, 117 mm in depth, and 196 mm in height, allowing it to easily fit into various environments. With a weight of 350 g, it is light enough for easy handling while ensuring optimal use.
Lens System
Equipped with a VOx Uncooled Focal Plane Arrays sensor, the DS-2TP31B-3AUF ensures remarkable image quality. Its resolution of 160 x 120 pixels is ideal for precise analyses. Additionally, its fixed focal length of 3.1 mm allows for sharp, high-quality images.
Representation / Realization
This model stands out with its infrared spectrum band of 8 - 14 µm, facilitating precise wavelength analysis. Its thermal sensitivity (NETD) of 40 mK allows for the detection of temperature variations with great accuracy. The spatial resolution of 5.48 mRad guarantees a precise image for detailed analyses. With an operating temperature range of 30 - 45 °C and an internal storage capacity of 8 GB, this device is designed to meet various needs.
Design
The Hikvision DS-2TP31B-3AUF features a modern black finish, offering both elegance and robustness. Its integrated 2.4-inch LCD screen with a resolution of 320 x 240 pixels ensures a pleasant visual experience. Its operating temperature ranges from -10 to 50 °C, ensuring reliable use in different environments. Additionally, it benefits from an IP54 protection rating, providing resistance to dust and moisture.
Battery
This model is powered by a nickel-metal hydride (NiMH) battery, offering a maximum autonomy of 8 hours, thus allowing for prolonged use without interruption, which is essential for field missions.
Power
With an input voltage of 3.7 V and an input current of 0.4 A, the DS-2TP31B-3AUF ensures efficient performance. Its input power of 1.2 W guarantees optimal use while preserving energy efficiency.
Connectivity
The product is equipped with a USB port, facilitating connection to various devices for quick and convenient data exchange.
Packaging Contents
For practical and secure use, a wrist strap is included with the device, allowing for easy transport.
