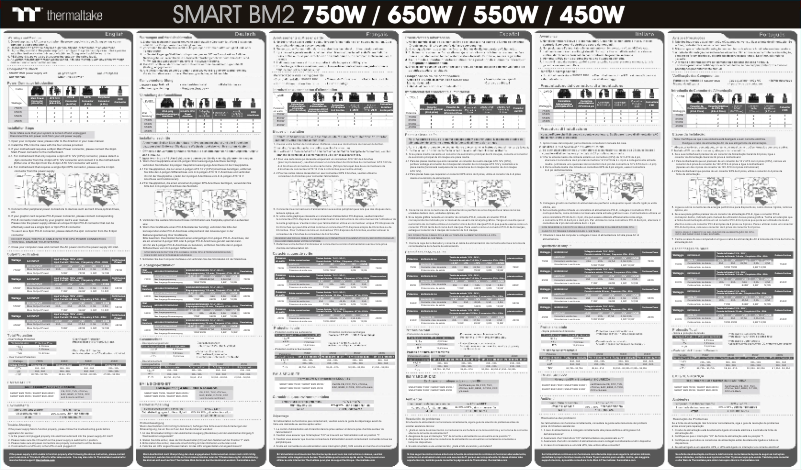

Manual of product Smart BM2
Technical Specifications Smart BM2
General Information
-
ModelSMART BM2
-
Brand
-
Category
-
Type
-
SKU1743002
-
MPN1743002
Connectivity
-
Wiring typeSemi-modular
-
Motherboard connector24-pin ATX
-
Length of the CPU power cable600 mm
-
Number of SATA power cables6
-
Length of the device's power cable (Molex)150.500 mm
-
Molex peripheral connector (4-pin)4
-
Length of the device's power cable (Molex)150.500 mm
-
PCI Express power connectors (6 +2 pin)2
-
Length of the PCI Express power cable500 mm
-
ATX connector (24-pin)Yes
-
ATX connector (24-pin)Yes
-
Length of the CPU power cable600 mm
-
ATX connector (24-pin)Yes
-
Floppy disk drive power connector1
-
Length of the floppy disk drive cable150 mm
Power
-
Combined power (+12 V)450 W
-
AC input frequency47 - 63 Hz
-
AC input voltage100 - 240 V
-
Input current7 A
-
Type of Power Factor Corrector (PFC)Active
-
Peak power540 W
-
Combined power (+5V)100 W
-
Combined power (+5V)100 W
-
Combined power (+12 V)450 W
-
Combined power (-12V)3.6 W
-
Combined power (+5Vsb)12.5 W
-
Maximum output current (+5V)20 A
-
Maximum output current (+5V)20 A
-
Maximum output current (+12V)54 A
-
Maximum output current (-12V)0.3 A
-
Maximum output current (+5Vsb)2.5 A
-
Holding time12 ms
-
Effectiveness85 %
-
Electrical protection devicesOver current, Over power
Representation / realization
-
Form factor of the power supply unit-
-
UtilityPC
-
80 PLUS Certification80 PLUS Bronze
-
Version EPS2.92
-
Version ATX2.4
-
Sound level- dB
-
Rolling technologyRifle
-
Mean time between failures100000 h
-
SecuritycTUVus, TUV, CE, FCC, S-mark, EAC, BSMI, C-TICK, CCC
Design
-
Product colorBlack
-
Fan diameter140 mm
-
Number of fans1 fan(s)
-
Fan locationHigh
-
Built-in power buttonYes
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 70 °C
-
Operating relative humidity (H-H)20 - 90 %
-
Relative humidity rate (storage)5 - 95 %
Weight and dimensions
-
Width150 mm
-
Height86 mm
-
Depth160 mm
Packaging contents
-
Cables includedCPU
-
PCIe
-
Peripheral (Molex)
-
SATA
Similar products
More product categories from brand Thermaltake
Other Thermaltake
Interior Thermaltake
More product types from brand Thermaltake
Presentation of product Smart BM2 specifications from brand Thermaltake
Generalities
The EAN code of the product Thermaltake Smart BM2 is 4713227525473. This code allows for the unique identification of the product in the distribution system. The brand of the product Thermaltake Smart BM2 is Thermaltake. This brand is known for its quality and innovation in the field of household appliances. The product model Thermaltake Smart BM2 is Smart BM2 | PS-SPD-0450MNFABE-1. This model ensures optimal performance and an enhanced user experience.
Representation / realization
The usefulness of the product Thermaltake Smart BM2 is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The product Thermaltake Smart BM2 has the 80 PLUS 80 PLUS Bronze certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The EPS version of the product Thermaltake Smart BM2 contains 2.92. This version ensures optimal print quality and compatibility with various graphic design software. The form factor of the power supply unit of the product Thermaltake Smart BM2 is -. This form factor determines the compatibility of the power supply with the case and components of your system. The ATX version of the product Thermaltake Smart BM2 is 2.4. This specification ensures optimal compatibility with modern computer components. The noise level of the product Thermaltake Smart BM2 is - dB. This noise level allows for pleasant use without excessive noise disturbances. The product Thermaltake Smart BM2 features a Rifle bearing technology. This technology ensures optimal performance and increased durability. The average time between failures of the product Thermaltake Smart BM2 is 100000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The safety of the product Thermaltake Smart BM2 includes cTUVus, TUV, CE, FCC, S-mark, EAC, BSMI, C-TICK, CCC. This safety ensures optimal protection against electrical and environmental risks.
Design
The color of the product Thermaltake Smart BM2 is Noir. This shade gives it a modern and elegant look. The diameter of the Thermaltake Smart BM2 fan is 140 mm. This diameter is essential for ensuring optimal air circulation. The number of fans of the product Thermaltake Smart BM2 is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The location of the fan of the product Thermaltake Smart BM2 is at the front and back. This positioning allows for optimal air circulation to maintain an ideal temperature. Does the product Thermaltake Smart BM2 have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device.
Connectivity
The wiring type of the product Thermaltake Smart BM2 is Semi-modulaire. This non-modular wiring ensures a stable and reliable connection. The number of SATA power cables for the product Thermaltake Smart BM2 is 6. These cables provide a reliable and efficient connection to power your components. The connector on the motherboard of the product Thermaltake Smart BM2 contains 24-pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The length of the motherboard power cable of the product Thermaltake Smart BM2 is 600 mm. This specification ensures optimal connectivity for your components. The SATA power cable of the product Thermaltake Smart BM2 has a length of 150,500 mm. This specification ensures optimal connectivity for your components. The Molex peripheral connector (4-pin) of the product Thermaltake Smart BM2 contains 4. This connector is essential for ensuring a reliable connection between electronic components. The length of the power cable of the device (Molex) of the product Thermaltake Smart BM2 is 150,500 mm. This specification ensures optimal connectivity for your power needs. The PCI Express power connector (6 +2 pin) of the product Thermaltake Smart BM2 contains 2. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. The length of the PCI Express power cable of the product Thermaltake Smart BM2 is 500 mm. This cable is essential for ensuring a reliable and efficient connection between your power supply and your graphics card. Does the Thermaltake Smart BM2 have an EPS power connector (8-pin)? Oui. This connector is essential for efficiently powering the components of your system. Does the Thermaltake Smart BM2 have an EPS electrical connector (4+4 pins)? Oui. This connector is essential for providing stable and reliable power to your system's components. The product Thermaltake Smart BM2 has a CPU power cable length of 600 mm. This specification ensures optimal connectivity for your system. Does the product Thermaltake Smart BM2 have an ATX connector (24-pin)? Oui. This connector is essential for powering the motherboard and ensuring optimal operation of your system. The power connector of the floppy disk drive of the product Thermaltake Smart BM2 contains 1. This connector is essential to ensure adequate power supply to the floppy disk drive. The length of the floppy disk drive cable of the product Thermaltake Smart BM2 is 150 mm. This specification ensures optimal connectivity for your data transfer needs.
Environmental conditions
The operating temperature of the product Thermaltake Smart BM2 is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Thermaltake Smart BM2 is -20 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product Thermaltake Smart BM2 has an operating relative humidity (H-H) of 20 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Thermaltake Smart BM2 is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product.
Power
The total power of the product Thermaltake Smart BM2 is 450 W. This power ensures optimal performance for efficient use. The AC input voltage of the Thermaltake Smart BM2 is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The input current of the product Thermaltake Smart BM2 is 7 A. This input current ensures optimal performance and increased energy efficiency. The AC input frequency of the product Thermaltake Smart BM2 is 47 - 63 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The power factor correction device of the product Thermaltake Smart BM2 is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The peak power of the product Thermaltake Smart BM2 is 540 W. This power ensures optimal audio quality for an immersive listening experience. The combined power (+12 V) of the product Thermaltake Smart BM2 is 450 W. This specification ensures optimal performance for your energy needs. The product Thermaltake Smart BM2 has a combined power (-12V) of 3.6 W. This specification ensures optimal performance and increased energy efficiency. The product Thermaltake Smart BM2 has a combined power (+3.3 V) of 100 W. This specification ensures optimal performance for your energy needs. The product Thermaltake Smart BM2 has a combined power (+5V) of 100 W. This specification ensures optimal performance for your devices. The combined power (+5Vsb) of the Thermaltake Smart BM2 is 12.5 W. This specification ensures optimal performance for your devices. The maximum output current (+3.3V) of the Thermaltake Smart BM2 is 20 A. This current ensures optimal performance for your power supply needs. The maximum output current (-12V) of the Thermaltake Smart BM2 is 0.3 A. This specification ensures optimal performance for your energy needs. The maximum output current (+5Vsb) of the Thermaltake Smart BM2 is 2.5 A. This current ensures a stable and efficient power supply for your devices. The product Thermaltake Smart BM2 has a maximum output current (+5V) of 20 A. This current allows you to efficiently power your electronic devices. The product Thermaltake Smart BM2 has a maximum output current (+12V) of 54 A. This specification ensures optimal performance for your power supply needs. The retention time of the product Thermaltake Smart BM2 is 12 ms. This retention time ensures optimal performance and increased responsiveness during its use. The effectiveness of the product Thermaltake Smart BM2 is 85 %. This performance ensures optimal results for daily use. The electrical protection devices of the product Thermaltake Smart BM2 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation.
Weight and dimensions
The height of the product Thermaltake Smart BM2 is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Thermaltake Smart BM2 is 150 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Thermaltake Smart BM2 is 160 mm. This dimension allows for optimal integration into your space.
Packaging contents
The included cable of the product Thermaltake Smart BM2 contains a power plug. This cable is essential for ensuring an optimal electrical connection.
