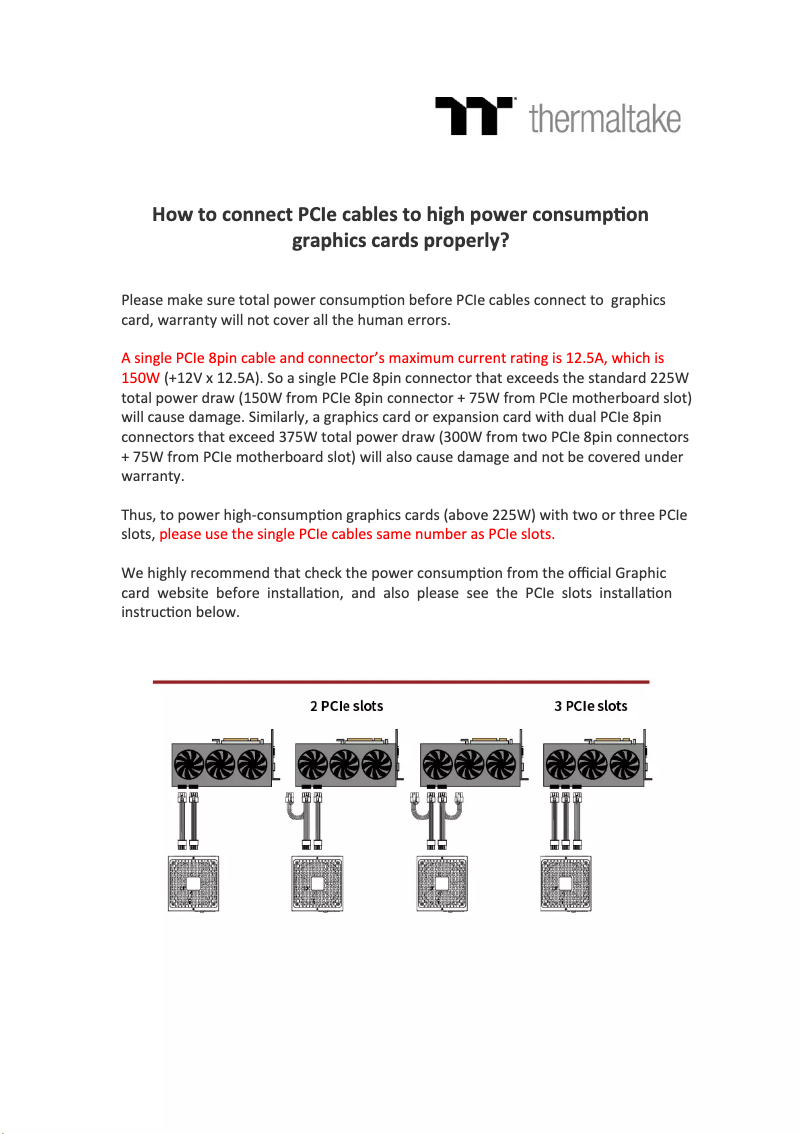

Manual of product Toughpower SFX Gold
Technical Specifications Toughpower SFX Gold
General Information
-
ModelTOUGHPOWER SFX GOLD
-
Brand
-
Category
-
Type
-
SKU1742999
-
MPN1742999
Power
-
Combined power (+5Vsb)450 W
-
Peak power540 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Input current3.5 - 7 A
-
Type of Power Factor Corrector (PFC)Active
-
Combined power (+5Vsb)450 W
-
Combined power (+5Vsb)450 W
-
Combined power (+5Vsb)450 W
-
Combined power (+5Vsb)450 W
-
Maximum output current (+3.3V)19 A
-
Maximum output current (+12V)37 A
-
Maximum output current (+5V)14 A
-
Maximum output current (-12V)0.3 A
-
Maximum output current (+5Vsb)2.5 A
-
Holding time16 ms
-
Electrical protection devicesOver current, Over power, Over voltage, Short circuit
-
Power Good signal trigger delay100 - 500 ms
Design
-
Fan diameter80 mm
-
Number of fans1 fan(s)
-
Product colorBlack
-
Fan locationHigh
Connectivity
-
CPU Connector P4 (4-pin)2
-
Floppy disk drive connectorYes
-
Wiring typeCompletely modular
-
Floppy disk drive connectorYes
-
Number of SATA power cables3
-
CPU Connector P4 (4-pin)2
-
Floppy disk drive power connector1
-
CPU Connector P4 (4-pin)2
-
Floppy disk drive connectorYes
-
Motherboard connector24-pin ATX
Representation / realization
-
Form factor of the power supply unitSFX
-
UtilityPC
-
Version ATX2.4
-
Sound level- dB
-
Mean time between failures120000 h
-
80 PLUS Certification80 PLUS Gold
-
SecurityCE/FCC/UL/Bauart Mark+CB/EAC
Environmental conditions
-
Operating temperature0 - 40 °C
-
Operating relative humidity (H-H)20 - 85 %
-
Relative humidity rate (storage)5 - 95 %
-
Temperature out of operation-20 - 90 °C
Weight and dimensions
-
Width125 mm
-
Depth100 mm
-
Height63.5 mm
Similar products
More product categories from brand Thermaltake
Other Thermaltake
Interior Thermaltake
More product types from brand Thermaltake
Presentation of product Toughpower SFX Gold specifications from brand Thermaltake
Generalities
The brand of the product Thermaltake Toughpower SFX Gold is Thermaltake. This brand is known for its quality and innovation in the field of household appliances. The product model Thermaltake Toughpower SFX Gold is Toughpower SFX Gold | PS-STP-0450FPCGEU-G. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Thermaltake Toughpower SFX Gold is 4717964404848. This code allows for the unique identification of the product in the distribution system.
Design
The diameter of the Thermaltake Toughpower SFX Gold fan is 80 mm. This diameter is essential for ensuring optimal air circulation. The color of the product Thermaltake Toughpower SFX Gold is Noir. This shade gives it a modern and elegant look. The location of the fan of the product Thermaltake Toughpower SFX Gold is at the front and back. This positioning allows for optimal air circulation to maintain an ideal temperature. The number of fans of the product Thermaltake Toughpower SFX Gold is 1 ventilateur(s). This design allows for better air circulation and optimal performance.
Connectivity
The Molex peripheral connector (4-pin) of the product Thermaltake Toughpower SFX Gold contains 2. This connector is essential for ensuring a reliable connection between electronic components. Does the Thermaltake Toughpower SFX Gold have a CPU power connector (4+4 pin)? Oui. This connector is essential for providing stable and efficient power to your processor. The wiring type of the product Thermaltake Toughpower SFX Gold is Entièrement modulaire. This non-modular wiring ensures a stable and reliable connection. Does the product Thermaltake Toughpower SFX Gold have a PCI Express Connector? Oui. This connector ensures fast and efficient communication between the components of your system. The number of SATA power cables for the product Thermaltake Toughpower SFX Gold is 3. These cables provide a reliable and efficient connection to power your components. The PCI Express power connector (6 +2 pin) of the product Thermaltake Toughpower SFX Gold contains 2. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. The power connector of the floppy disk drive of the product Thermaltake Toughpower SFX Gold contains 1. This connector is essential to ensure adequate power supply to the floppy disk drive. Does the product Thermaltake Toughpower SFX Gold have a floppy disk drive connector? Oui. This connector allows for easy and quick connection with floppy disk drives, ensuring optimal compatibility. The connector on the motherboard of the product Thermaltake Toughpower SFX Gold contains 24-pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The CPU P4 (4-pin) connector of the Thermaltake Toughpower SFX Gold product contains 2. This connector is essential for ensuring stable and efficient power supply to your processor.
Power
The total power of the product Thermaltake Toughpower SFX Gold is 450 W. This power ensures optimal performance for efficient use. The AC input frequency of the product Thermaltake Toughpower SFX Gold is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the Thermaltake Toughpower SFX Gold is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The peak power of the product Thermaltake Toughpower SFX Gold is 540 W. This power ensures optimal audio quality for an immersive listening experience. The input current of the product Thermaltake Toughpower SFX Gold is 3.5 - 7 A. This input current ensures optimal performance and increased energy efficiency. The power factor correction device of the product Thermaltake Toughpower SFX Gold is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The product Thermaltake Toughpower SFX Gold has a combined power (+3.3 V) of 450 W. This specification ensures optimal performance for your energy needs. The combined power (+12 V) of the product Thermaltake Toughpower SFX Gold is 450 W. This specification ensures optimal performance for your energy needs. The product Thermaltake Toughpower SFX Gold has a combined power (-12V) of 450 W. This specification ensures optimal performance and increased energy efficiency. The combined power (+5Vsb) of the Thermaltake Toughpower SFX Gold is 450 W. This specification ensures optimal performance for your devices. The maximum output current (+3.3V) of the Thermaltake Toughpower SFX Gold is 19 A. This current ensures optimal performance for your power supply needs. The product Thermaltake Toughpower SFX Gold has a maximum output current (+12V) of 37 A. This specification ensures optimal performance for your power supply needs. The product Thermaltake Toughpower SFX Gold has a maximum output current (+5V) of 14 A. This current allows you to efficiently power your electronic devices. The maximum output current (-12V) of the Thermaltake Toughpower SFX Gold is 0.3 A. This specification ensures optimal performance for your energy needs. The maximum output current (+5Vsb) of the Thermaltake Toughpower SFX Gold is 2.5 A. This current ensures a stable and efficient power supply for your devices. The retention time of the product Thermaltake Toughpower SFX Gold is 16 ms. This retention time ensures optimal performance and increased responsiveness during its use. The electrical protection devices of the product Thermaltake Toughpower SFX Gold include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The trigger delay for the Power Good signal of the product Thermaltake Toughpower SFX Gold is 100 - 500 ms. This delay is essential to ensure stable and reliable power supply.
Representation / realization
The ATX version of the product Thermaltake Toughpower SFX Gold is 2.4. This specification ensures optimal compatibility with modern computer components. The usefulness of the product Thermaltake Toughpower SFX Gold is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The noise level of the product Thermaltake Toughpower SFX Gold is - dB. This noise level allows for pleasant use without excessive noise disturbances. The form factor of the power supply unit of the product Thermaltake Toughpower SFX Gold is SFX. This form factor determines the compatibility of the power supply with the case and components of your system. The average time between failures of the product Thermaltake Toughpower SFX Gold is 120000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. The product Thermaltake Toughpower SFX Gold has the 80 PLUS 80 PLUS Gold certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The safety of the product Thermaltake Toughpower SFX Gold includes CE/FCC/UL/Bauart Mark+CB/EAC. This safety ensures optimal protection against electrical and environmental risks.
Environmental conditions
The operating temperature of the product Thermaltake Toughpower SFX Gold is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Thermaltake Toughpower SFX Gold has an operating relative humidity (H-H) of 20 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Thermaltake Toughpower SFX Gold is 5 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product. The non-operating temperature of the product Thermaltake Toughpower SFX Gold is -20 - 90 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Weight and dimensions
The width of the product Thermaltake Toughpower SFX Gold is 125 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Thermaltake Toughpower SFX Gold is 100 mm. This dimension allows for optimal integration into your space. The height of the product Thermaltake Toughpower SFX Gold is 63.5 mm. This dimension is essential to ensure that the product fits perfectly in your space.
