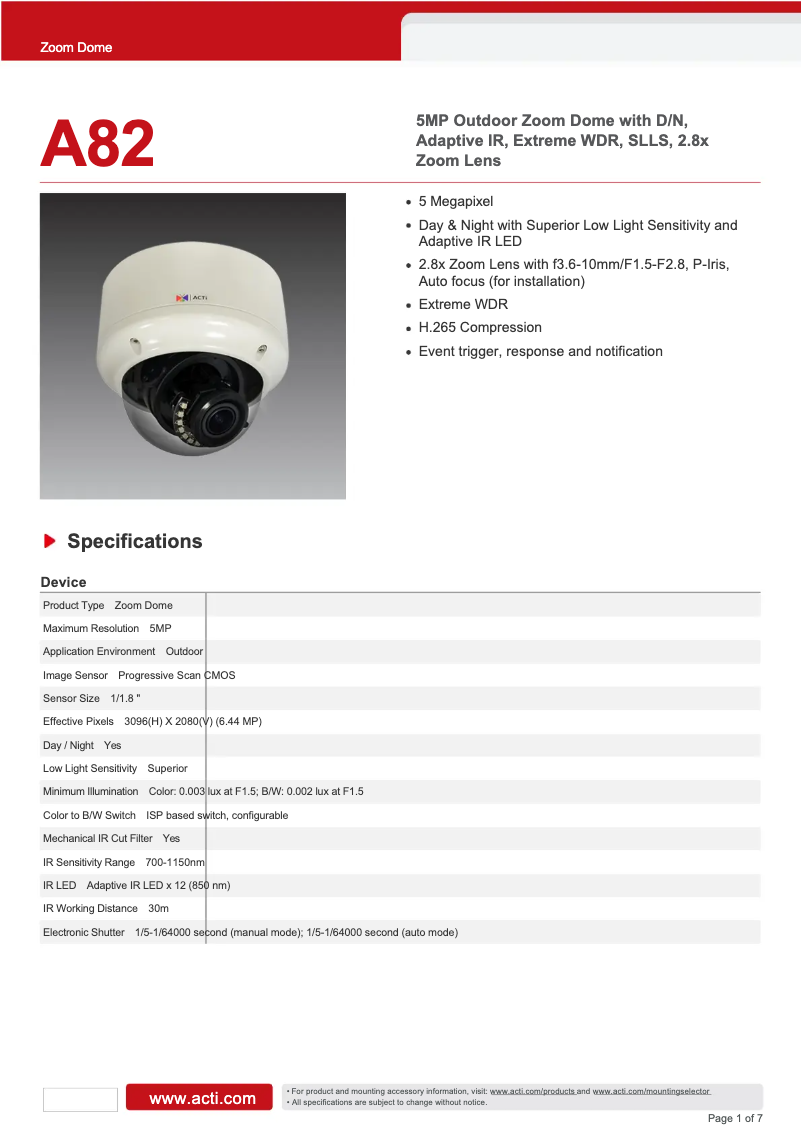

Manuals of product A82
Technical Specifications A82
General Information
-
ModelA82
-
Brand
-
Category
-
Type
-
SKU989227
-
MPN989227
Video
-
Total megapixels5 MP
-
Supported video modes1080p
-
Number of images per second30 fps
-
Visual compression formatsH.264, H.265, M-JPEG
-
Maximum resolution2592 x 1944 pixels
-
Supported graphic resolutions320 x 240, 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2592 x 1944
-
Text overlay of captionYes
-
Bitrate128 Kbps - 20 Mbps
-
Binary rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
-
Text overlay of captionYes
-
Image quality adjustmentBrightness, Contrast, Sharpness
-
Text overlay of captionYes
-
Text overlay of captionYes
-
Text overlay of captionYes
-
Text overlay of captionYes
-
Text overlay of captionYes
Representation / realization
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
TypeIP security camera
-
Supported installationOutdoor
-
Infrared cutoff filterYes
-
Connectivity technologyWired
-
CertificationCE, FCC, IP66, IK10, NEMA 4X
Night vision
-
Night visionYes
-
Type of LEDIR
-
Number of lighting LEDs12
-
Infrared wavelength850 nm
-
Night vision distance30 m
Objective system
-
Zoom capacityYes
-
Focal length3.6 - 10 mm
-
Minimum opening amount1.5
-
Maximum number of openings2.8
-
Optical zoom2.8 x
Design
-
Weather-resistantYes
-
FormatDome
-
Product colorBlack, White
-
Protection functionsAnti-vandalism
-
International Protection Code (IP)IP66
-
Mounting typeWall
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/1.8 "
-
Effective pixel count (H x V)3096 x 2080 pixels
Camera
-
Minimum illumination0.05 lux
-
Camera shutter typeElectronics
-
Camera shutter speed1/5 - 1/16000 s
-
Field of view of the lens, horizontal79.5 °
-
Panoramic-135 - 135 °
-
Inclination angle0 - 90 °
-
Rotation angle180 °
-
White balanceAuto, Manual
Audio
-
Signal-to-noise ratio report56 dB
-
Sampling frequency8 kHz
-
Supported audio formatsG.711, PCM
Technical details
-
IrisYes
-
Lens mount interfaceBoard assembly
Packaging contents
-
Connection box includedYes
-
Number of cameras1
Connectivity
-
Port on the terminal blockYes
-
Number of Ethernet LAN ports (RJ-45)1
Network
-
Wifi-
-
Bluetooth-
-
Ethernet/LANYes
-
Ethernet/LANYes
-
Wiring technology10/100Base-T(X)
Other features
-
Compliance with industry standardsIPv4
-
Noise detectorIPv6
-
TCP
-
UDP
-
HTTP
-
HTTPS
-
SMTP
-
FTP
-
NTP
-
DNS
-
DDNS
-
DHCP
-
DIPS
-
ARP
-
Bonjour
-
UPnP
-
RTSP
-
RTP
-
RTCP
-
IGMP
-
PPPoE
-
CoS
-
ICMP
-
SNMP
-
QoS
-
Yes
Security
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Password protectionUser
-
Motion detector (video)Yes
-
Alert notification typeE-mail, Snapshot alert message
Storage support
-
Integrated hard drive-
-
Compatible memory cardsMicroSDHC
-
Built-in memory card readerYes
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Power supply typePoE
-
Typical electricity consumption100 W
-
Energy consumption (Power over Ethernet (PoE))8 W
Weight and dimensions
-
Weight880 g
-
Diameter139.95 mm
-
Height131.17 mm
Environmental conditions
-
Operating temperature-40 - 50 °C
-
Operating relative humidity (H-H)20 - 80 %
Similar products
More product categories from brand ACTi
More product types from brand ACTi
Presentation of product A82 specifications from brand ACTi
Generalities
The brand of the product ACTi A82 is ACTi. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product ACTi A82 is 4710751961678. This code allows for the unique identification of the product in the distribution system. The product model ACTi A82 is A82 | A82. This model ensures optimal performance and an enhanced user experience.
Night vision
Does the product ACTi A82 have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product ACTi A82 is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The infrared wavelength of the product ACTi A82 is 850 nm. This feature allows for optimal use in various technological applications. The number of lighting LEDs in the product ACTi A82 is 12. This number determines the light intensity and energy efficiency of the device. The night vision distance of the product ACTi A82 is 30 m. This feature allows for clear and precise observation even in darkness.
Representation / realization
Does the product ACTi A82 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The type of product ACTi A82 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product ACTi A82 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product ACTi A82 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product ACTi A82 have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The product ACTi A82 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The certification of the product ACTi A82 contains CE, FCC, IP66, IK10, NEMA 4X. This certification guarantees compliance with the required safety and performance standards.
Video
The product ACTi A82 has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. The total megapixels of the product ACTi A82 is 5 MP. This total ensures exceptional image quality for your photos. The number of frames per second of the product ACTi A82 is 30 ips. This specification ensures optimal smoothness when playing videos. The supported video mode of the product ACTi A82 is 1080p. This mode allows you to enjoy optimal image quality for your videos. The maximum resolution of the product ACTi A82 is 2592 x 1944 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product ACTi A82 are 320 x 240,640 x 480 (VGA),800 x 600 (SVGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2048 x 1536 (QXGA),2592 x 1944. These resolutions provide optimal display quality for your content. Does the product ACTi A82 have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The bit rate of the product ACTi A82 is 128 Kbps - 20 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The binary bitrate control of the product ACTi A82 contains Constant Bit Rate (CBR), Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. Does the product ACTi A82 have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The image quality setting of the product ACTi A82 contains Brightness, Contrast, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the ACTi A82 have an image stabilizer? Oui. This image stabilizer allows for sharp videos and photos, even in motion. Does the product ACTi A82 have Automatic Gain Control? Oui. This feature allows for automatic adjustment of the sound level for an optimal audio experience. Does the product ACTi A82 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product ACTi A82 have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. Does the product ACTi A82 have Text Overlay? Oui. This feature allows you to add text captions directly on the video for better understanding.
Image sensor
The effective pixel count (H x V) of the product ACTi A82 is 3096 x 2080 pixels. This specification ensures accurate and detailed image quality. The optical sensor size of the product ACTi A82 is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product ACTi A82 is CMOS. This type of sensor ensures optimal image quality for your needs.
Design
Is the ACTi A82 weather-resistant? Oui. This product is designed to withstand the harshest weather conditions. The format of the product ACTi A82 is a bar. This format allows for practical and efficient use in various contexts. The color of the product ACTi A82 is Black, White. This shade gives it a modern and elegant look. The product ACTi A82 has Anti-vandalisme protection features. These characteristics ensure reliable use in various environmental conditions. The International Protection Code (IP) for product ACTi A82 contains IP66. This code indicates the level of protection against solid objects and moisture. The mounting type of the product ACTi A82 is Mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Objective system
The focal length of the product ACTi A82 is 3.6 - 10 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product ACTi A82 is 2.8. This feature allows for optimal use and increased flexibility. Does the product ACTi A82 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The minimum opening number of the product ACTi A82 is 1.5. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The optical zoom of the product ACTi A82 is 2.8 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality.
Camera
The shutter speed of the camera of the product ACTi A82 is 1/5 - 1/16000 s. This feature allows capturing sharp images even in low light conditions. The type of shutter of the camera of the product ACTi A82 is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The minimum illumination of the product ACTi A82 is 0.05 lux. This feature ensures optimal performance even in low light conditions. The field of view of the ACTi A82 lens is 79.5 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The panoramic view of the product ACTi A82 is -135 - 135 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product ACTi A82 is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product ACTi A82 is 180 °. This angle allows for optimal usage flexibility. The white balance of the product ACTi A82 consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images.
Audio
The signal-to-noise ratio of the product ACTi A82 is 56 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference. The sampling frequency of the product ACTi A82 is 8 kHz. This feature ensures optimal sound quality for your recordings. The supported audio formats of the product ACTi A82 are G.711, PCM. These formats ensure optimal compatibility for an enriching listening experience.
Technical details
The lens mount of the ACTi A82 product is Montage sur carte. This mount allows for optimal compatibility with various lenses, thus providing increased flexibility and performance during your shoots. Is the product ACTi A82 equipped with Iris? Oui. This specification indicates an essential feature of the product.
Packaging contents
The number of cameras of the product ACTi A82 is 1. This product is equipped with a camera that allows capturing high-quality images. Does the product ACTi A82 come with a connection box included? Oui. This allows you to benefit from a simplified and quick installation.
Connectivity
Does the product ACTi A82 have a terminal block port? Oui. This feature allows for a secure and reliable connection for your installations. The number of Ethernet LAN (RJ-45) ports of the product ACTi A82 is 1. These ports provide a stable and fast network connection for your devices.
Other features
Does the product ACTi A82 have a Noise Detector? Oui. This device allows for the detection of ambient sound levels for optimal use. The product ACTi A82 has compliance with industrial standards IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, CoS, ICMP, SNMP, QoS. This compliance ensures that the product meets the established standards to ensure its quality and safety.
Network
The Wifi of the product ACTi A82 contains -. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product ACTi A82 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The wiring technology of the product ACTi A82 contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. Does the product ACTi A82 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. Does the ACTi A82 have Bluetooth? -. This feature allows for a convenient wireless connection with other compatible devices.
Security
Does the ACTi A82 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product ACTi A82 have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product ACTi A82 have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product ACTi A82 have Password Protection? Utilisateur. This feature ensures the security of your personal data. Does the product ACTi A82 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. The alert notification type for the product ACTi A82 is E-mail, Snapshot alert message. This feature allows for real-time alerts for better security.
Power
Does the ACTi A82 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The energy consumption of the product ACTi A82 is 8 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The typical power consumption of the product ACTi A82 is 100 W. This feature allows for the assessment of the energy efficiency of the device. The type of power source for the product ACTi A82 is PoE. This type of power supply ensures optimal performance and efficient use of the device.
Storage support
The product ACTi A82 has compatible memory cards: MicroSDHC. These memory cards ensure optimal performance for storing your data. Does the ACTi A82 have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the ACTi A82 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Weight and dimensions
The weight of the product ACTi A82 is 880 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product ACTi A82 is 131.17 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product ACTi A82 is 139.95 mm. This diameter allows for optimal use and fits perfectly with your needs.
Environmental conditions
The product ACTi A82 has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product ACTi A82 is -40 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
