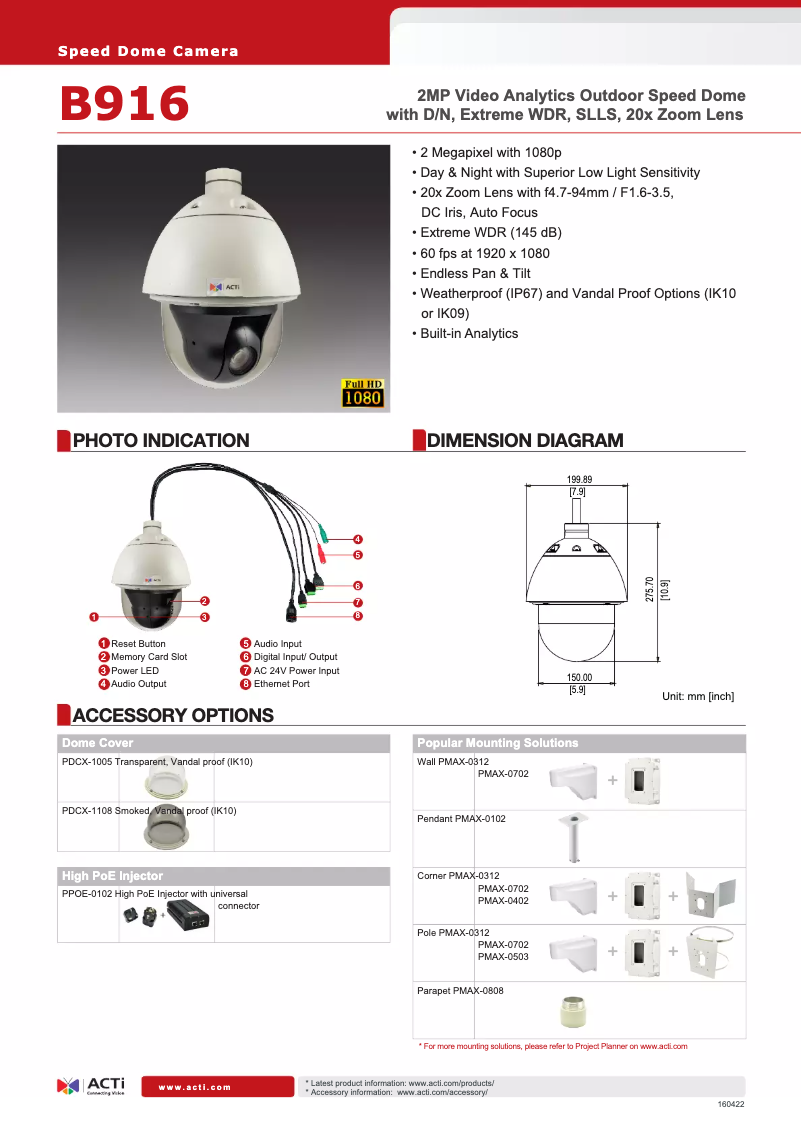

Manuals of product B916
Technical Specifications B916
General Information
-
ModelB916
-
Brand
-
Category
-
Type
-
SKU989228
-
MPN989228
Representation / realization
-
TypeIP security camera
-
Supported installationOutdoor
-
Automatic trackingYes
-
Automatic trackingYes
-
Automatic trackingYes
-
Automatic trackingYes
-
Automatic trackingYes
-
Connectivity technologyWired
-
CertificationFCC, CE, IP67, IK09, NEMA 4X, UL
Video
-
Total megapixels2 MP
-
Supported video modes1080p
-
Number of images per second60 fps
-
Maximum resolution1920 x 1080 pixels
-
Visual compression formatsH.264, M-JPEG
-
Supported graphic resolutions320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
-
Scrolling and mirroringYes
-
Binary rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
-
Bitrate128 Kbps - 12 Mbps
-
Image quality adjustmentBrightness, Contrast, Sharpness
-
Gain control typeAuto
-
Scrolling and mirroringYes
-
Scrolling and mirroringYes
-
Scrolling and mirroringYes
-
Scrolling and mirroringYes
-
Scrolling and mirroringYes
-
Scrolling and mirroringYes
-
Scrolling and mirroringYes
Objective system
-
Focal length4.7 - 94 mm
-
Minimum opening amount1.6
-
Maximum number of openings3.5
-
Zoom capacityYes
-
Optical zoom20 x
-
Zoom capacityYes
-
Digital zoom10 x
Technical details
-
IrisYes
Design
-
Weather-resistantYes
-
Protection functionsAnti-vandalism
-
International Protection Code (IP)IP67
-
FormatDome
-
Product colorBlack, White
-
Mounting typeWall
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.8 "
-
Effective pixel count (H x V)1944 x 1224 pixels
Camera
-
Minimum illumination0.05 lux
-
Camera shutter typeElectronics
-
Camera shutter speed1/5 - 1/32000 s
-
Field of view of the lens, horizontal62 °
-
Angle of view of the lens, vertical36.4 °
-
Pan tilt preset speed720 °/sec
-
Panoramic speed54.4 °/sec
-
Tilt speed27.2 °/sec
-
Panoramic0 - 360 °
-
Tilt preset speed360 °/sec
-
Inclination angle-20 - 200 °
-
White balanceAuto, Manual
Night vision
-
Night vision-
Audio
-
Signal-to-noise ratio report56 dB
-
Audio system2-way
-
Sampling frequency8 kHz
-
Supported audio formatsG.711, PCM
Security
-
Password protectionYes
-
Functions of the IVS system (intelligent video surveillance)Face detection
-
Password protectionYes
-
Password protectionYes
-
Password protectionYes
-
Password protectionUser
-
Password protectionYes
-
Alert notification typeE-mail, Snapshot alert message
Management features
-
Behavior analysisIntrusion detection
-
Object removal detection
-
Unattended baggage detection
Other features
-
Compliance with industry standardsTCP
-
Noise detectorUDP
-
HTTP
-
HTTPS
-
DHCP
-
PPPoE
-
RTP
-
RTSP
-
IPv4
-
IPv6
-
DNS
-
DDNS
-
NTP
-
ICMP
-
ARP
-
IGMP
-
SMTP
-
FTP
-
UPnP
-
SNMP
-
Bonjour
-
Sony VISCA
-
Pelco D
-
Yes
Network
-
Wifi-
-
Bluetooth-
-
Supported network protocolsTCP
-
Ethernet/LANUDP
-
Wiring technologyHTTP
-
Network standardsHTTPS
-
DHCP
-
PPPoE
-
RTP
-
RTSP
-
IPv4
-
IPv6
-
DNS
-
DDNS
-
NTP
-
ICMP
-
ARP
-
IGMP
-
SMTP
-
FTP
-
UPnP
-
SNMP
-
Bonjour
-
Sony VISCA
-
Pelco D
-
Pelco P
-
Yes
-
10/100Base-T(X)
-
IEEE 802.3at
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSDHC, MicroSDXC
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Power supply typePoE
-
AC input voltage24 V
-
Energy consumption (Power over Ethernet (PoE))29.4 W
-
Typical electricity consumption68 W
Weight and dimensions
-
Diameter200 mm
-
Height276 mm
-
Weight2605 g
Environmental conditions
-
Operating temperature-52 - 60 °C
-
Operating relative humidity (H-H)10 - 85 %
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand ACTi
More product types from brand ACTi
Presentation of product B916 specifications from brand ACTi
Generalities
The brand of the product ACTi B916 is ACTi. This brand is known for its quality and innovation in the field of household appliances. The product model ACTi B916 is B916 | B916. This model ensures optimal performance and an enhanced user experience. The EAN code of the product ACTi B916 is 4710751961814. This code allows for the unique identification of the product in the distribution system.
Representation / realization
The type of product ACTi B916 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product ACTi B916 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product ACTi B916 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The design of the product ACTi B916 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product ACTi B916 have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product ACTi B916 have preset points? Oui. This feature allows for simplified and customized use according to your preferences. Does the product ACTi B916 have Automatic Tracking? Oui. This feature allows you to track your orders in real-time, providing you with peace of mind while shopping. The product ACTi B916 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The certification of the product ACTi B916 contains FCC, CE, IP67, IK09, NEMA 4X, UL. This certification guarantees compliance with the required safety and performance standards.
Objective system
The focal length of the product ACTi B916 is 4.7 - 94 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product ACTi B916 is 3.5. This feature allows for optimal use and increased flexibility. The minimum opening number of the product ACTi B916 is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. Does the ACTi B916 have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The optical zoom of the product ACTi B916 is 20 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. Does the product ACTi B916 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The digital zoom of the product ACTi B916 is 10 x. This zoom allows for capturing precise details even from a distance.
Video
The total megapixels of the product ACTi B916 is 2 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product ACTi B916 is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported video mode of the product ACTi B916 is 1080p. This mode allows you to enjoy optimal image quality for your videos. The number of frames per second of the product ACTi B916 is 60 ips. This specification ensures optimal smoothness when playing videos. The product ACTi B916 has visual compression formats: H.264, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product ACTi B916 are 320 x 240,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. Does the product ACTi B916 have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The binary bitrate control of the product ACTi B916 contains Constant Bit Rate (CBR), Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The bit rate of the product ACTi B916 is 128 Kbps - 12 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The image quality setting of the product ACTi B916 contains Brightness, Contrast, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. The gain control type of the product ACTi B916 is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product ACTi B916 have Automatic Gain Control? Oui. This feature allows for automatic adjustment of the sound level for an optimal audio experience. Does the product ACTi B916 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product ACTi B916 have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. Does the ACTi B916 have an image stabilizer? Oui. This image stabilizer allows for sharp videos and photos, even in motion. Does the product ACTi B916 have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product ACTi B916 have Text Overlay? Oui. This feature allows you to add text captions directly on the video for better understanding. Does the product ACTi B916 have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience.
Technical details
Is the product ACTi B916 equipped with Iris? Oui. This specification indicates an essential feature of the product.
Design
Is the ACTi B916 weather-resistant? Oui. This product is designed to withstand the harshest weather conditions. The International Protection Code (IP) for product ACTi B916 contains IP67. This code indicates the level of protection against solid objects and moisture. The product ACTi B916 has Anti-vandalisme protection features. These characteristics ensure reliable use in various environmental conditions. The format of the product ACTi B916 is a bar. This format allows for practical and efficient use in various contexts. The color of the product ACTi B916 is Black, White. This shade gives it a modern and elegant look. The mounting type of the product ACTi B916 is Mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Night vision
Does the product ACTi B916 have night vision? -. This feature allows for clear visibility in the dark, thus providing enhanced security.
Image sensor
The sensor type of the product ACTi B916 is CMOS. This type of sensor ensures optimal image quality for your needs. The effective pixel count (H x V) of the product ACTi B916 is 1944 x 1224 pixels. This specification ensures accurate and detailed image quality. The optical sensor size of the product ACTi B916 is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Audio
The sampling frequency of the product ACTi B916 is 8 kHz. This feature ensures optimal sound quality for your recordings. The audio system of the product ACTi B916 is stereo. This audio system provides an immersive and high-quality sound experience. The signal-to-noise ratio of the product ACTi B916 is 56 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference. The supported audio formats of the product ACTi B916 are G.711, PCM. These formats ensure optimal compatibility for an enriching listening experience.
Camera
The shutter speed of the camera of the product ACTi B916 is 1/5 - 1/32000 s. This feature allows capturing sharp images even in low light conditions. The type of shutter of the camera of the product ACTi B916 is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The minimum illumination of the product ACTi B916 is 0.05 lux. This feature ensures optimal performance even in low light conditions. The field of view of the ACTi B916 lens is 62 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product ACTi B916 is 36.4 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The product ACTi B916 has a preset panning speed of 720 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The panning speed of the product ACTi B916 is 54.4 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The tilt speed of the product ACTi B916 is 27.2 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The panoramic view of the product ACTi B916 is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt pre-setting speed of the product ACTi B916 is 360 °/sec. This feature allows for quick and precise adjustment of the camera angle to capture images from different angles. The tilt angle of the product ACTi B916 is -20 - 200 °. This angle allows for adjusting the position for optimal comfort. The white balance of the product ACTi B916 consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images.
Management features
The ACTi B916 system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Security
Does the ACTi B916 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product ACTi B916 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. The intelligent video surveillance system of the product ACTi B916 has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the ACTi B916 have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. Does the product ACTi B916 have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product ACTi B916 have Password Protection? Utilisateur. This feature ensures the security of your personal data. Does the product ACTi B916 have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. The alert notification type for the product ACTi B916 is E-mail, Snapshot alert message. This feature allows for real-time alerts for better security.
Other features
Does the product ACTi B916 have a Noise Detector? Oui. This device allows for the detection of ambient sound levels for optimal use. The product ACTi B916 has compliance with industrial standards TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D,. This compliance ensures that the product meets the established standards to ensure its quality and safety.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product ACTi B916 is 1. These ports provide a stable and fast network connection for your devices.
Storage support
Does the ACTi B916 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product ACTi B916 has compatible memory cards: MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the ACTi B916 have a built-in hard drive? No. This feature means that the product does not have internal storage.
Network
The supported network protocols of the product ACTi B916 are TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P. These protocols ensure efficient and reliable communication for your networking needs. The Wifi of the product ACTi B916 contains -. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the ACTi B916 have Bluetooth? -. This feature allows for a convenient wireless connection with other compatible devices. Does the product ACTi B916 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The wiring technology of the product ACTi B916 contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The network standards of the product ACTi B916 are IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols.
Power
Does the ACTi B916 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The AC input voltage of the ACTi B916 is 24 V. This specification ensures optimal compatibility with standard electrical systems. The type of power source for the product ACTi B916 is PoE. This type of power supply ensures optimal performance and efficient use of the device. The energy consumption of the product ACTi B916 is 29.4 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The typical power consumption of the product ACTi B916 is 68 W. This feature allows for the assessment of the energy efficiency of the device.
Weight and dimensions
The height of the product ACTi B916 is 276 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product ACTi B916 is 200 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product ACTi B916 is 2605 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging contents
The number of cameras of the product ACTi B916 is 1. This product is equipped with a camera that allows capturing high-quality images.
Environmental conditions
The product ACTi B916 has an operating relative humidity (H-H) of 10 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product ACTi B916 is -52 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
