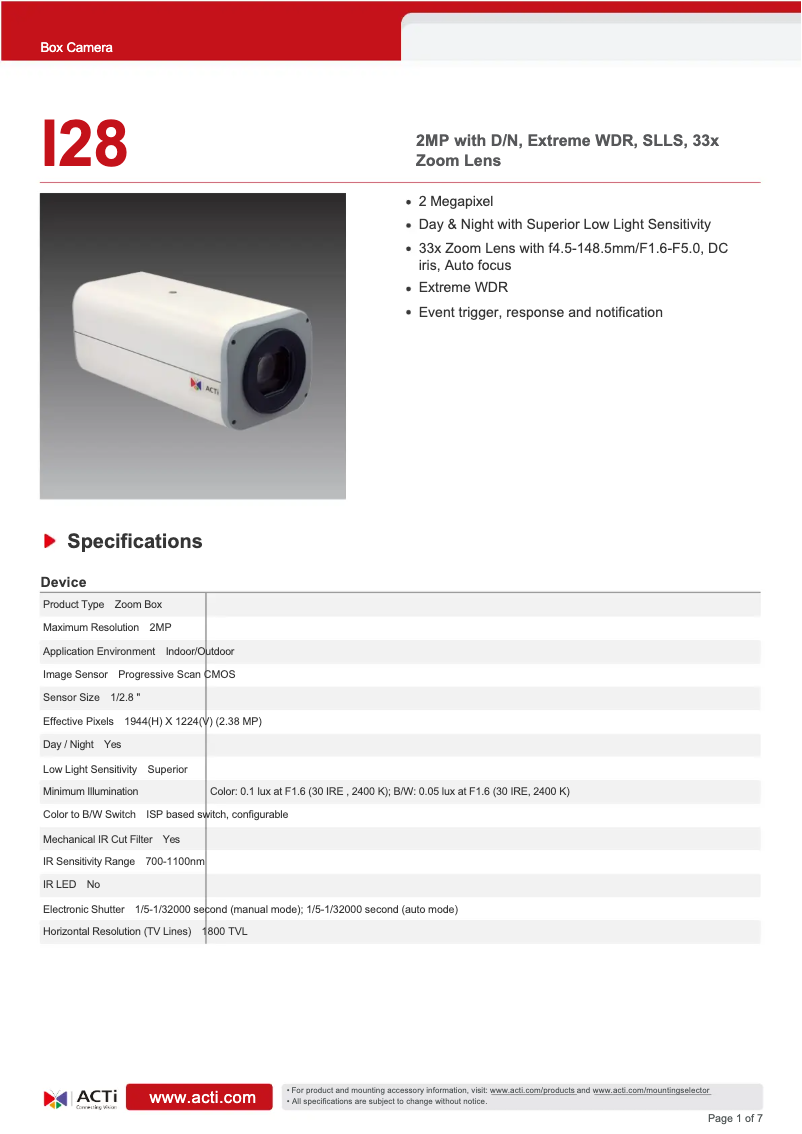

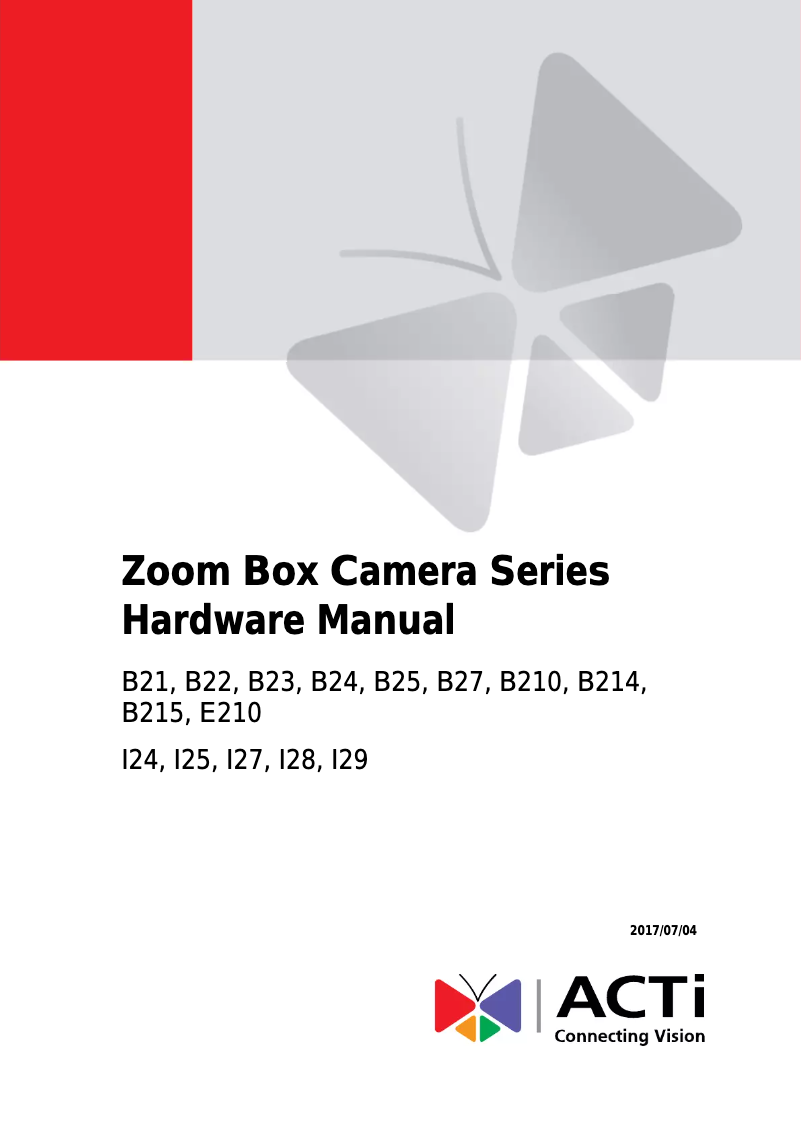

Manuals of product I28
Technical Specifications I28
General Information
-
ModelI28
-
Brand
-
Category
-
Type
-
SKU1121091
-
MPN1121091
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ProtocolsPelco-P/D
-
Connectivity technologyWired
-
CertificationCE, FCC
Design
-
Anti-fogYes
-
FormatBox
-
Product colorWhite
-
Mounting typeCeiling/Wall/Post
-
IndicatorsEnergy
Video
-
Maximum resolution1920 x 1080 pixels
-
Total megapixels2 MP
-
Visual compression formatsH.264, M-JPEG
-
Supported graphic resolutions320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
-
Supported video modes1080p
-
Image stabilizerYes
-
Image stabilizerYes
-
Gain control typeAuto
-
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
-
Image stabilizerYes
-
Number of images per second60 fps
-
Image stabilizerYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Image stabilizerYes
-
Image stabilizerYes
-
Image stabilizerYes
-
Image stabilizerYes
-
Image stabilizerYes
-
Image stabilizerYes
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Bitrate128 Kbps - 12 Mbps
-
Number of TV lines (horizontal)1800
Camera
-
Minimum illumination0.1 lux
-
Field of view of the lens, horizontal69.3 °
-
Angle of view of the lens, vertical38 °
-
White balanceAuto, Manual
-
Camera shutter typeElectronic
-
Camera shutter speed1/5 - 1/32000 s
-
Adjustment of shutter speedAuto/Manual
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8 "
-
Progressive scanYes
-
Effective pixel count (H x V)1944 x 1224 pixels
Objective system
-
Number of lenses-
-
Auto focusYes
-
Optical zoom33 x
-
Maximum number of openings5
-
Auto focusYes
-
Minimum opening amount1.6
-
Focal length4.5 - 148.5 mm
Security
-
Digital watermarkYes
-
Password protectionUser
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Security-supported algorithm802.1x RADIUS
-
Digital watermarkYes
-
Alert notification typeE-mail
-
Digital watermarkYes
-
Functions of the IVS system (intelligent video surveillance)Abandoned object, Covering detection, Crossing line, Face detection, Intrusion, Missing object, People counting, Scene change
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
Storage support
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSDHC, MicroSDXC
-
Integrated hard driveNo
Night vision
-
Night visionYes
Network
-
E-mailYes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Wiring technology10/100Base-T(X)
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Supported network protocolsIPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
-
E-mailYes
-
Streaming methodMulticast
-
E-mailYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Port on the terminal blockYes
Audio
-
Audio output channels1 channels
-
Audio output channels1 channels
-
Audio system2-way
-
Sampling frequency8 kHz
-
Voice codecsG.711
Weight and dimensions
-
Width80.6 mm
-
Depth175.84 mm
-
Height71.4 mm
-
Weight743 g
Packaging information
-
Type of packagingBox
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Consumption (max)8.7 W
-
Energy consumption (Power over Ethernet (PoE))10.2 W
Management features
-
Remote-controlledYes
-
Remote-controlledYes
-
Remote-controlledYes
-
Remote-controlledYes
-
Remote-controlledYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Object removal detection
-
Unattended baggage detection
Environmental conditions
-
Operating temperature-20 - 50 °C
-
Operating relative humidity (H-H)10 - 85 %
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand ACTi
More product types from brand ACTi
Presentation of product I28 specifications from brand ACTi
Generalities
The brand of the product ACTi I28 is ACTi. This brand is known for its quality and innovation in the field of household appliances. The product model ACTi I28 is I28 | I28. This model ensures optimal performance and an enhanced user experience.
Design
Does the product ACTi I28 have an anti-fog feature? Oui. This feature helps prevent fogging, ensuring optimal visibility. The format of the product ACTi I28 is a bar. This format allows for practical and efficient use in various contexts. The color of the product ACTi I28 is Blanc. This shade gives it a modern and elegant look. The mounting type of the product ACTi I28 is Plafond/Mur/Poteau. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. Does the product ACTi I28 have indicators? Énergie. These indicators allow you to visualize the operating status of the device.
Representation / realization
The type of product ACTi I28 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product ACTi I28 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product ACTi I28 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The design of the product ACTi I28 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The ACTi I28 product has remote viewing. This feature allows for monitoring and interacting with the product remotely, thus providing increased flexibility and control. The PTZ control of the product ACTi I28 is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product ACTi I28 have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. Does the product ACTi I28 have a built-in water heater? Oui. This device allows for instant hot water in an efficient manner. The product ACTi I28 has PTZ Protocols Pelco-P/D. These Protocols allow for precise and effective control of the camera movements, thus ensuring optimal surveillance. The product ACTi I28 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The certification of the product ACTi I28 contains CE, FCC. This certification guarantees compliance with the required safety and performance standards.
Image sensor
The sensor type of the product ACTi I28 is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product ACTi I28 is 1. This number of sensors allows for precise and efficient image detection. The optical sensor size of the product ACTi I28 is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product ACTi I28 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The effective pixel count (H x V) of the product ACTi I28 is 1944 x 1224 pixels. This specification ensures accurate and detailed image quality.
Video
The maximum resolution of the product ACTi I28 is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product ACTi I28 is 2 MP. This total ensures exceptional image quality for your photos. The supported graphic resolutions of the product ACTi I28 are 320 x 240,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The product ACTi I28 has visual compression formats: H.264, M-JPEG. These formats ensure optimal image quality for your videos. The supported video mode of the product ACTi I28 is 1080p. This mode allows you to enjoy optimal image quality for your videos. Does the product ACTi I28 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product ACTi I28 have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. The gain control type of the product ACTi I28 is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The product ACTi I28 features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product ACTi I28 have Automatic Gain Control? Oui. This feature allows for automatic adjustment of the sound level for an optimal audio experience. The number of frames per second of the product ACTi I28 is 60 ips. This specification ensures optimal smoothness when playing videos. Does the product ACTi I28 have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. The image quality setting of the product ACTi I28 contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product ACTi I28 have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product ACTi I28 have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. Does the product ACTi I28 have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product ACTi I28 have Timestamp Overlay? Oui. This feature allows you to display the date and time directly on the video, providing valuable temporal context. Does the product ACTi I28 have Text Overlay? Oui. This feature allows you to add text captions directly on the video for better understanding. Does the ACTi I28 have an image stabilizer? Oui. This image stabilizer allows for sharp videos and photos, even in motion. The binary bitrate control of the product ACTi I28 contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The bit rate of the product ACTi I28 is 128 Kbps - 12 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The number of TV lines (horizontal) of the product ACTi I28 is 1800. This figure ensures superior image quality for an immersive viewing experience.
Camera
The minimum illumination of the product ACTi I28 is 0.1 lux. This feature ensures optimal performance even in low light conditions. The white balance of the product ACTi I28 consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The vertical field of view of the product ACTi I28 is 38 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The field of view of the ACTi I28 lens is 69.3 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The type of shutter of the camera of the product ACTi I28 is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The ability to adjust the shutter speed of the product ACTi I28 is Auto/Manual. This adjustment allows for precise image capture, whether in automatic mode for simplified use or in manual mode for total creative control. The shutter speed of the camera of the product ACTi I28 is 1/5 - 1/32000 s. This feature allows capturing sharp images even in low light conditions.
Objective system
The maximum number of openings for the product ACTi I28 is 5. This feature allows for optimal use and increased flexibility. The optical zoom of the product ACTi I28 is 33 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. Does the product ACTi I28 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The number of lenses in the product ACTi I28 is -. This number determines the quality and versatility of the lens. Does the ACTi I28 have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The minimum opening number of the product ACTi I28 is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The focal length of the product ACTi I28 is 4.5 - 148.5 mm. This specification determines the field of view and the distance at which subjects can be captured accurately.
Night vision
Does the product ACTi I28 have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Storage support
Does the ACTi I28 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the ACTi I28 have a built-in hard drive? No. This feature means that the product does not have internal storage. The product ACTi I28 has compatible memory cards: MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Security
Does the product ACTi I28 have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product ACTi I28 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product ACTi I28 have Password Protection? Utilisateur. This feature ensures the security of your personal data. Does the product ACTi I28 have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the ACTi I28 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product ACTi I28 have Privacy Protection? Oui. This feature ensures the security of your personal data and enhances your trust in using the product. The supported security algorithm of the product ACTi I28 contains 802.1x RADIUS. This algorithm ensures optimal protection of your data. Does the product ACTi I28 have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The alert notification type for the product ACTi I28 is E-mail. This feature allows for real-time alerts for better security. The intelligent video surveillance system of the product ACTi I28 has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product ACTi I28 have a Motion Detector? Oui. This device allows for the detection of any presence within its field of vision, thus providing enhanced security. Does the product ACTi I28 have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the product ACTi I28 have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content. Does the ACTi I28 have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The ACTi I28 has a heart rate. This feature allows you to monitor your health in real time.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product ACTi I28 is 1. These ports provide a stable and fast network connection for your devices. Does the product ACTi I28 have a terminal block port? Oui. This feature allows for a secure and reliable connection for your installations.
Audio
The audio output channels of the ACTi I28 are 1 canaux. This specification allows for an immersive and high-quality sound experience. The number of audio input channels of the product ACTi I28 is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The audio system of the product ACTi I28 is stereo. This audio system provides an immersive and high-quality sound experience. The sampling frequency of the product ACTi I28 is 8 kHz. This feature ensures optimal sound quality for your recordings. The voice codec of the ACTi I28 product contains G.711. This voice codec ensures optimal audio quality for your communications.
Network
The Wifi of the product ACTi I28 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product ACTi I28 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the ACTi I28 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product ACTi I28 is Fast Ethernet. This type of interface allows for fast and efficient network connections. The wiring technology of the product ACTi I28 contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The network standards of the product ACTi I28 are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product ACTi I28 are IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X. These protocols ensure efficient and reliable communication for your networking needs. The streaming method of the product ACTi I28 is Multi-diffusion. This method allows for efficient data transmission to multiple users simultaneously. Does the product ACTi I28 have E-mail? Oui. This feature allows for quick and effective communication with your customers. Does the product ACTi I28 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Weight and dimensions
The width of the product ACTi I28 is 80.6 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product ACTi I28 is 175.84 mm. This dimension allows for optimal integration into your space. The height of the product ACTi I28 is 71.4 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product ACTi I28 is 743 g. This weight is ideal for ensuring optimal use and easy handling.
Packaging information
The packaging type of the product ACTi I28 is Boîte. This type of packaging ensures optimal protection and facilitates transportation.
Power
The type of power source for the product ACTi I28 is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product ACTi I28 is 8.7 W. This specification allows for the assessment of the energy efficiency of the device. The product ACTi I28 has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The energy consumption of the product ACTi I28 is 10.2 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Packaging contents
The number of cameras of the product ACTi I28 is 1. This product is equipped with a camera that allows capturing high-quality images.
Management features
Does the product ACTi I28 have a Reset Button? Oui. This button allows you to easily reset the product settings. Does the product ACTi I28 have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. Does the ACTi I28 have scalable firmware? Oui. This feature ensures continuous updates and improvements for optimal performance. The ACTi I28 product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Is the ACTi I28 product Remote Controlled? Oui. This feature allows for convenient and easy remote control. The ACTi I28 system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Environmental conditions
The product ACTi I28 has an operating relative humidity (H-H) of 10 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product ACTi I28 is -20 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
