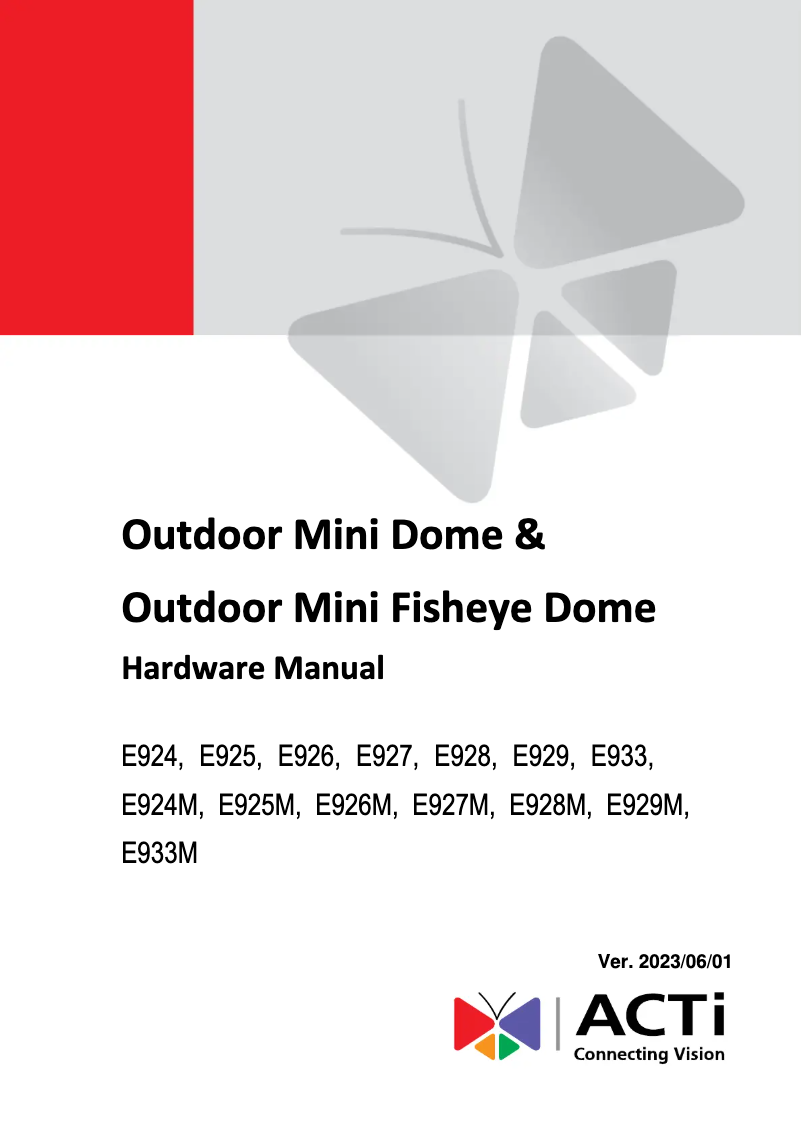

Manuals of product E933M
Technical Specifications E933M
General Information
-
ModelE933M
-
Brand
-
Category
-
Type
-
SKU989233
-
MPN989233
Representation / realization
-
TypeIP security camera
-
Supported installationOutdoor
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
Connectivity technologyWired
-
CertificationFCC, CE, IK10, IP68, NEMA 4X, EN 50155, UL
Video
-
Total megapixels2 MP
-
Supported video modes1080p
-
Number of images per second60 fps
-
Maximum resolution1920 x 1080 pixels
-
Visual compression formatsH.264, M-JPEG
-
Supported graphic resolutions320 x 240, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
-
Text overlay of captionYes
-
Bitrate128 Kbps - 12 Mbps
-
Binary rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
-
Image quality adjustmentBrightness, Contrast, Sharpness
-
Text overlay of captionYes
-
Text overlay of captionYes
-
Text overlay of captionYes
-
Text overlay of captionYes
-
Text overlay of captionYes
Design
-
FormatDome
-
International Protection Code (IP)IP68
-
Protection functionsAnti-vibration
-
Weather-resistantYes
-
Product colorBlack, White
-
Mounting typeWall
Night vision
-
Night visionYes
-
Type of LEDIR
-
Infrared wavelength850 nm
-
Number of lighting LEDs3
-
Night vision distance15 m
Objective system
-
Fixed Focal Length2.55 mm
-
Maximum number of openings2.2
-
Fixed focusYes
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.8 "
-
Effective pixel count (H x V)1944 x 1224 pixels
Camera
-
Minimum illumination0.05 lux
-
Camera shutter typeElectronics
-
Camera shutter speed1/5 - 1/32000 s
-
Field of view of the lens, horizontal62.7 °
-
Panoramic-90 - 90 °
-
Inclination angle35 - 90 °
-
White balanceAuto, Manual
Audio
-
Signal-to-noise ratio report56 dB
-
Audio system1-way
-
Sampling frequency8 kHz
-
Supported audio formatsG.711, PCM
Technical details
-
IrisYes
-
Lens mount interfaceBoard assembly
Security
-
Password protectionYes
-
Functions of the IVS system (intelligent video surveillance)Face detection
-
Password protectionYes
-
Password protectionYes
-
Password protectionYes
-
Password protectionYes
-
Password protectionUser
-
Alert notification typeEmail
Management features
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Object removal detection
-
Unattended baggage detection
Connectivity
-
Microphone jack inputYes
-
Number of Ethernet LAN ports (RJ-45)1
Network
-
Wifi-
-
Bluetooth-
-
Supported network protocolsTCP
-
Ethernet/LANUDP
-
Wiring technologyHTTP
-
Network standardsHTTPS
-
DHCP
-
PPPoE
-
RTP
-
RTSP
-
IPv6
-
DNS
-
DDNS
-
NTP
-
ICMP
-
ARP
-
IGMP
-
SMTP
-
FTP
-
UPnP
-
SNMP
-
Bonjour
-
Yes
-
10/100Base-T(X)
-
IEEE 802.3af
Other features
-
Noise detectorYes
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSDHC
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Power supply typePoE
-
Energy consumption (Power over Ethernet (PoE))6.49 W
Weight and dimensions
-
Weight474 g
-
Diameter115 mm
-
Height70 mm
Environmental conditions
-
Operating temperature-20 - 50 °C
-
Operating relative humidity (H-H)10 - 85 %
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand ACTi
More product types from brand ACTi
Presentation of product E933M specifications from brand ACTi
Generalities
The product model ACTi E933M is E933M | E933M. This model ensures optimal performance and an enhanced user experience. The brand of the product ACTi E933M is ACTi. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product ACTi E933M is 4710751961845. This code allows for the unique identification of the product in the distribution system.
Representation / realization
Does the product ACTi E933M have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product ACTi E933M have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The design of the product ACTi E933M supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The type of product ACTi E933M is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product ACTi E933M features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The certification of the product ACTi E933M contains FCC, CE, IK10, IP68, NEMA 4X, EN 50155, UL. This certification guarantees compliance with the required safety and performance standards.
Design
The format of the product ACTi E933M is a bar. This format allows for practical and efficient use in various contexts. Is the ACTi E933M weather-resistant? Oui. This product is designed to withstand the harshest weather conditions. The International Protection Code (IP) for product ACTi E933M contains IP68. This code indicates the level of protection against solid objects and moisture. The product ACTi E933M has Anti-vibration protection features. These characteristics ensure reliable use in various environmental conditions. The color of the product ACTi E933M is Black, White. This shade gives it a modern and elegant look. The mounting type of the product ACTi E933M is Mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Night vision
Does the product ACTi E933M have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The infrared wavelength of the product ACTi E933M is 850 nm. This feature allows for optimal use in various technological applications. The number of lighting LEDs in the product ACTi E933M is 3. This number determines the light intensity and energy efficiency of the device. The type of LED of the product ACTi E933M is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product ACTi E933M is 15 m. This feature allows for clear and precise observation even in darkness.
Video
The total megapixels of the product ACTi E933M is 2 MP. This total ensures exceptional image quality for your photos. The supported video mode of the product ACTi E933M is 1080p. This mode allows you to enjoy optimal image quality for your videos. The maximum resolution of the product ACTi E933M is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The number of frames per second of the product ACTi E933M is 60 ips. This specification ensures optimal smoothness when playing videos. The product ACTi E933M has visual compression formats: H.264, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product ACTi E933M are 320 x 240,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. Does the product ACTi E933M have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The binary bitrate control of the product ACTi E933M contains Constant Bit Rate (CBR), Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The image quality setting of the product ACTi E933M contains Brightness, Contrast, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product ACTi E933M have Automatic Gain Control? Oui. This feature allows for automatic adjustment of the sound level for an optimal audio experience. The bit rate of the product ACTi E933M is 128 Kbps - 12 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product ACTi E933M have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. Does the product ACTi E933M have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product ACTi E933M have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product ACTi E933M have Text Overlay? Oui. This feature allows you to add text captions directly on the video for better understanding.
Objective system
The product goal system ACTi E933M has a fixed focal length of 2.55 mm. This feature allows for images with great sharpness and exceptional quality. The maximum number of openings for the product ACTi E933M is 2.2. This feature allows for optimal use and increased flexibility. Is the ACTi E933M product fixed focus? No. This product is designed to provide optimal usage flexibility.
Camera
The minimum illumination of the product ACTi E933M is 0.05 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product ACTi E933M is 1/5 - 1/32000 s. This feature allows capturing sharp images even in low light conditions. The type of shutter of the camera of the product ACTi E933M is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The field of view of the ACTi E933M lens is 62.7 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The panoramic view of the product ACTi E933M is -90 - 90 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product ACTi E933M is 35 - 90 °. This angle allows for adjusting the position for optimal comfort. The white balance of the product ACTi E933M consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images.
Image sensor
The effective pixel count (H x V) of the product ACTi E933M is 1944 x 1224 pixels. This specification ensures accurate and detailed image quality. The sensor type of the product ACTi E933M is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product ACTi E933M is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Audio
The audio system of the product ACTi E933M is stereo. This audio system provides an immersive and high-quality sound experience. The signal-to-noise ratio of the product ACTi E933M is 56 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference. The sampling frequency of the product ACTi E933M is 8 kHz. This feature ensures optimal sound quality for your recordings. The supported audio formats of the product ACTi E933M are G.711, PCM. These formats ensure optimal compatibility for an enriching listening experience.
Technical details
Is the product ACTi E933M equipped with Iris? Oui. This specification indicates an essential feature of the product. The lens mount of the ACTi E933M product is Montage sur carte. This mount allows for optimal compatibility with various lenses, thus providing increased flexibility and performance during your shoots.
Connectivity
Does the product ACTi E933M have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The number of Ethernet LAN (RJ-45) ports of the product ACTi E933M is 1. These ports provide a stable and fast network connection for your devices.
Management features
The ACTi E933M system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Security
Does the ACTi E933M have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The intelligent video surveillance system of the product ACTi E933M has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product ACTi E933M have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the ACTi E933M product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product ACTi E933M have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The alert notification type for the product ACTi E933M is E-mail. This feature allows for real-time alerts for better security. Does the product ACTi E933M have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product ACTi E933M have Password Protection? Utilisateur. This feature ensures the security of your personal data.
Other features
Does the product ACTi E933M have a Noise Detector? Oui. This device allows for the detection of ambient sound levels for optimal use.
Storage support
The product ACTi E933M has compatible memory cards: MicroSDHC. These memory cards ensure optimal performance for storing your data. Does the ACTi E933M have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the ACTi E933M have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Network
Does the product ACTi E933M have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the ACTi E933M have Bluetooth? -. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product ACTi E933M contains -. This Wifi allows for a fast and reliable wireless connection for all your devices. The supported network protocols of the product ACTi E933M are TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The wiring technology of the product ACTi E933M contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The network standards of the product ACTi E933M are IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols.
Power
Does the ACTi E933M have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The type of power source for the product ACTi E933M is PoE. This type of power supply ensures optimal performance and efficient use of the device. The energy consumption of the product ACTi E933M is 6.49 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Packaging contents
The number of cameras of the product ACTi E933M is 1. This product is equipped with a camera that allows capturing high-quality images.
Weight and dimensions
The diameter of the product ACTi E933M is 115 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product ACTi E933M is 474 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product ACTi E933M is 70 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Environmental conditions
The operating temperature of the product ACTi E933M is -20 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product ACTi E933M has an operating relative humidity (H-H) of 10 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity.
