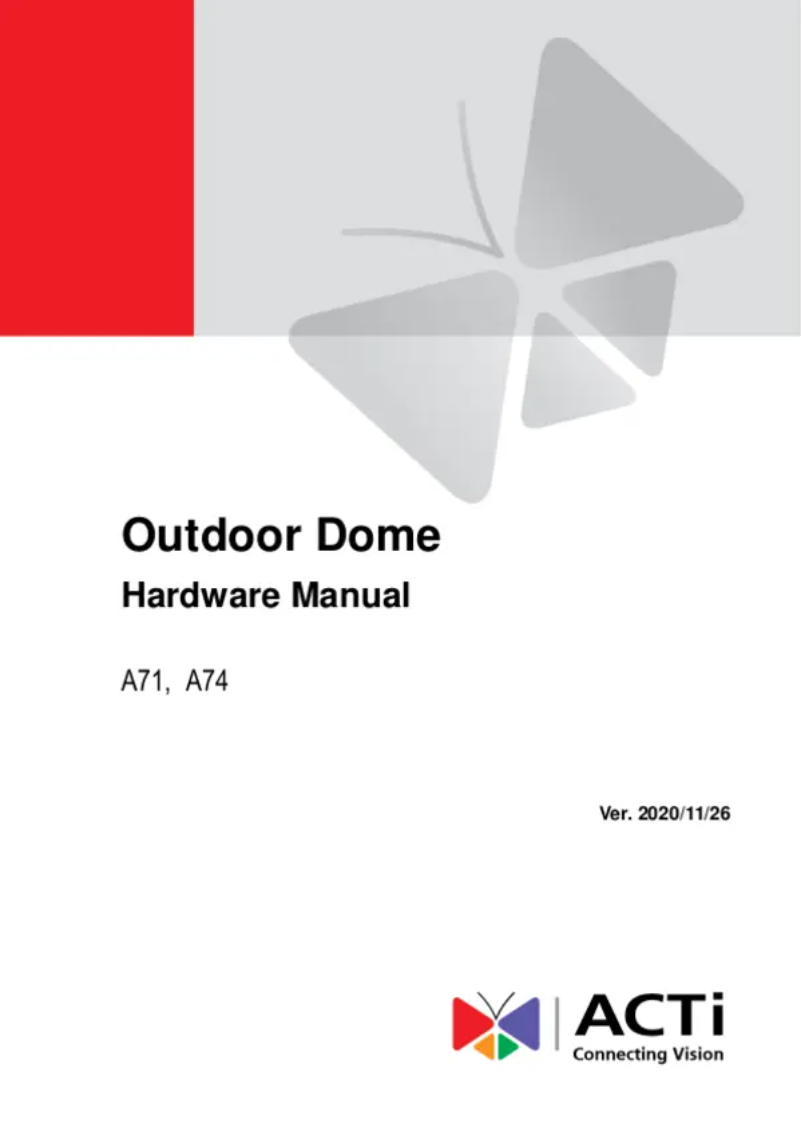

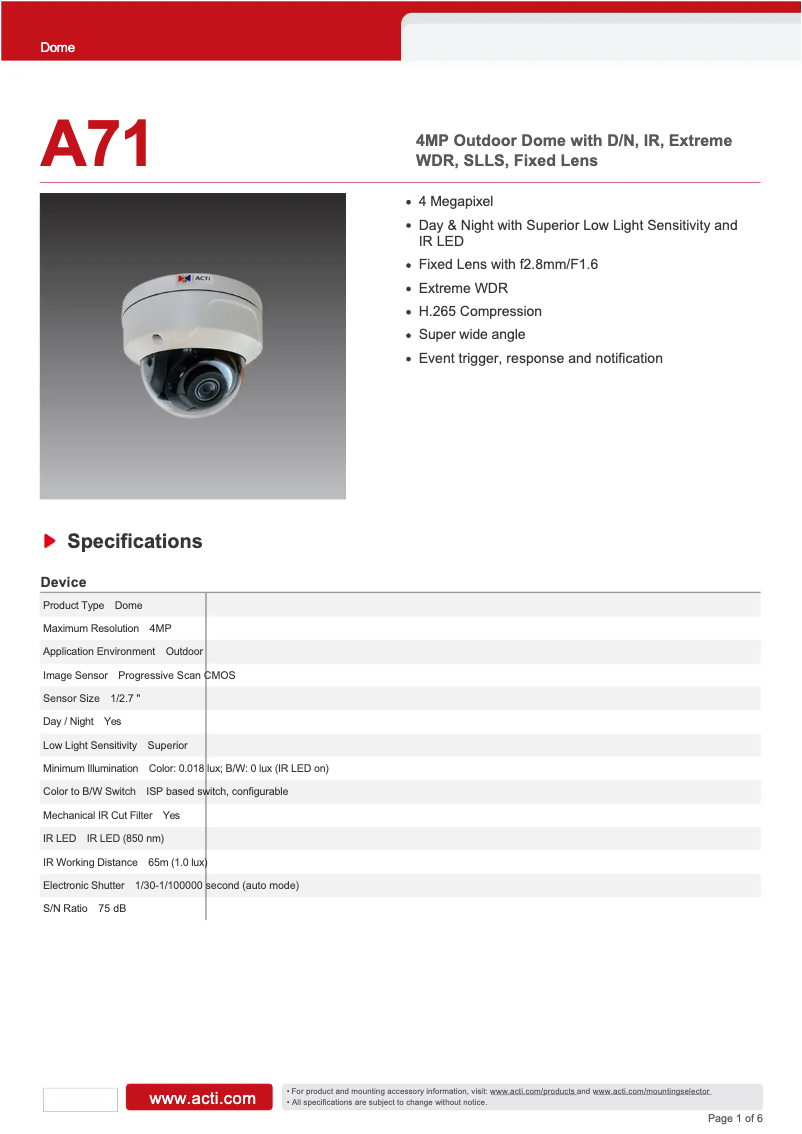

Manuals of product A71
Technical Specifications A71
General Information
-
ModelA71
-
Brand
-
Category
-
Type
-
SKU1204122
-
MPN1204122
Packaging contents
-
Number of cameras1
Representation / realization
-
CertificationCE, FCC
-
Day/Night ModeYes
-
Day/Night ModeYes
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
Design
-
International Protection Code (IP)IP67
-
Code IKIK10
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorWhite
-
Weather-resistantYes
-
Protection functionsAnti-vandalism
Weight and dimensions
-
Diameter111 mm
-
Height82.4 mm
-
Weight610 g
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Energy consumption (Power over Ethernet (PoE))7.5 W
-
Consumption (max)6 W
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size128 GB
Network
-
WifiNo
-
WifiNo
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Supported network protocolsIPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
-
Type of Ethernet interfaceFast Ethernet
-
Quality of Service (QoS)Yes
-
Quality of Service (QoS)Yes
Environmental conditions
-
Operating temperature-30 - 60 °C
Management features
-
Scalable firmwareYes
-
Scalable firmwareYes
-
Scalable firmwareYes
-
Behavior analysisLane departure detection
Security
-
MirrorYes
-
MirrorYes
-
MirrorYes
-
Password protectionUser
-
MirrorYes
-
MirrorYes
-
Functions of the IVS system (intelligent video surveillance)Face detection, People counting
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Microphone jack inputYes
Audio
-
Voice codecsG.711
-
Audio system2-ways
-
Sampling frequency8 kHz
Video
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Noise reduction technology3D digital noise suppression
-
Image quality adjustmentBrightness, Sharpness
-
Gain control typeAuto
-
Video broadcastingYes
-
Bitrate128Kbps - 12Mbps
-
Binary rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
-
Video broadcastingYes
-
Maximum resolution2688 x 1520 pixels
-
Visual compression formatsH.264, H.265, M-JPEG
-
Number of images per second30 ips
-
Supported graphic resolutions640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520
-
Total megapixels4 MP
Camera
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Panoramic0 - 355 °
-
Inclination angle0 - 75 °
-
Rotation angle355 °
-
Field of view of the lens, horizontal101.3 °
-
Angle of view of the lens, vertical55.3 °
-
Minimum illumination0 lux
-
Camera shutter speed1/5-1/64000 s
-
Camera shutter typeElectronic
-
Adjustment of shutter speedAuto/Manual
Objective system
-
Number of lenses1
-
Fixed focusYes
-
Fixed Focal Length2.8 mm
-
Maximum number of openings1.6
Image sensor
-
Number of sensors1
-
Optical sensor size1/2.7 "
-
Progressive scanYes
-
Sensor typeCMOS
Night vision
-
Night vision distance65 m
-
Night visionYes
-
Type of LEDIR
-
Infrared wavelength850 nm
Similar products
More product categories from brand ACTi
More product types from brand ACTi
Presentation of product A71 specifications from brand ACTi
Packaging contents
The number of cameras of the product ACTi A71 is 1. This product is equipped with a camera that allows capturing high-quality images.
Generalities
The product model ACTi A71 is A71 | A71. This model ensures optimal performance and an enhanced user experience. The brand of the product ACTi A71 is ACTi. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product ACTi A71 is 4710751965607. This code allows for the unique identification of the product in the distribution system.
Representation / realization
The certification of the product ACTi A71 contains CE, FCC. This certification guarantees compliance with the required safety and performance standards. Does the product ACTi A71 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The type of product ACTi A71 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product ACTi A71 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The design of the product ACTi A71 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product ACTi A71 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Weight and dimensions
The height of the product ACTi A71 is 82.4 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product ACTi A71 is 111 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product ACTi A71 is 610 g. This weight is ideal for ensuring optimal use and easy handling.
Design
The International Protection Code (IP) for product ACTi A71 contains IP67. This code indicates the level of protection against solid objects and moisture. The mounting type of the product ACTi A71 is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product ACTi A71 is a bar. This format allows for practical and efficient use in various contexts. The IK Code of the product ACTi A71 is IK10. This IK Code allows for easy identification of the specific design of the item. The color of the product ACTi A71 is Blanc. This shade gives it a modern and elegant look. Is the ACTi A71 weather-resistant? Oui. This product is designed to withstand the harshest weather conditions. The product ACTi A71 has Anti-vandalisme protection features. These characteristics ensure reliable use in various environmental conditions.
Storage support
The product ACTi A71 has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the ACTi A71 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the ACTi A71 have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product ACTi A71 is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Power
The type of power source for the product ACTi A71 is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The energy consumption of the product ACTi A71 is 7.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The maximum consumption of the product ACTi A71 is 6 W. This specification allows for the assessment of the energy efficiency of the device. The product ACTi A71 has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices.
Network
The supported network protocols of the product ACTi A71 are IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X. These protocols ensure efficient and reliable communication for your networking needs. The network standards of the product ACTi A71 are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The Wifi of the product ACTi A71 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the ACTi A71 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product ACTi A71 is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the product ACTi A71 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the product ACTi A71 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Environmental conditions
The operating temperature of the product ACTi A71 is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Management features
The ACTi A71 product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The ACTi A71 system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product ACTi A71 have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. Does the ACTi A71 have scalable firmware? Oui. This feature ensures continuous updates and improvements for optimal performance.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product ACTi A71 is 1. These ports provide a stable and fast network connection for your devices. Does the product ACTi A71 have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack.
Audio
The voice codec of the ACTi A71 product contains G.711. This voice codec ensures optimal audio quality for your communications. The audio system of the product ACTi A71 is stereo. This audio system provides an immersive and high-quality sound experience. The sampling frequency of the product ACTi A71 is 8 kHz. This feature ensures optimal sound quality for your recordings.
Security
Does the product ACTi A71 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product ACTi A71 have Password Protection? Utilisateur. This feature ensures the security of your personal data. Does the ACTi A71 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product ACTi A71 have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product ACTi A71 have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the product ACTi A71 have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The intelligent video surveillance system of the product ACTi A71 has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring.
Video
Does the product ACTi A71 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product ACTi A71 have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product ACTi A71 have Text Overlay? Oui. This feature allows you to add text captions directly on the video for better understanding. Does the product ACTi A71 have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. The product ACTi A71 features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The image quality setting of the product ACTi A71 contains Brightness, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. The gain control type of the product ACTi A71 is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product ACTi A71 have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The bit rate of the product ACTi A71 is 128Kbps - 12Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The binary bitrate control of the product ACTi A71 contains Constant Bit Rate (CBR), Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. Does the product ACTi A71 have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The maximum resolution of the product ACTi A71 is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product ACTi A71 has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. The number of frames per second of the product ACTi A71 is 30 ips. This specification ensures optimal smoothness when playing videos. The supported graphic resolutions of the product ACTi A71 are 640 x 480 (VGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2560 x 1440,2688 x 1520. These resolutions provide optimal display quality for your content. The total megapixels of the product ACTi A71 is 4 MP. This total ensures exceptional image quality for your photos.
Image sensor
The number of sensors of the product ACTi A71 is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product ACTi A71 is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product ACTi A71 is 1/2.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product ACTi A71 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Objective system
The maximum number of openings for the product ACTi A71 is 1.6. This feature allows for optimal use and increased flexibility. The number of lenses in the product ACTi A71 is 1. This number determines the quality and versatility of the lens. The product goal system ACTi A71 has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. Is the ACTi A71 product fixed focus? No. This product is designed to provide optimal usage flexibility.
Camera
The tilt command of the ACTi A71 camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. Does the product ACTi A71 have a camera pan command? No. This feature is not available on this model. The panoramic view of the product ACTi A71 is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product ACTi A71 is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product ACTi A71 is 355 °. This angle allows for optimal usage flexibility. The field of view of the ACTi A71 lens is 101.3 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product ACTi A71 is 55.3 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The minimum illumination of the product ACTi A71 is 0 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product ACTi A71 is 1/5-1/64000 s. This feature allows capturing sharp images even in low light conditions. The type of shutter of the camera of the product ACTi A71 is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The ability to adjust the shutter speed of the product ACTi A71 is Auto/Manual. This adjustment allows for precise image capture, whether in automatic mode for simplified use or in manual mode for total creative control.
Night vision
The infrared wavelength of the product ACTi A71 is 850 nm. This feature allows for optimal use in various technological applications. The night vision distance of the product ACTi A71 is 65 m. This feature allows for clear and precise observation even in darkness. Does the product ACTi A71 have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product ACTi A71 is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
