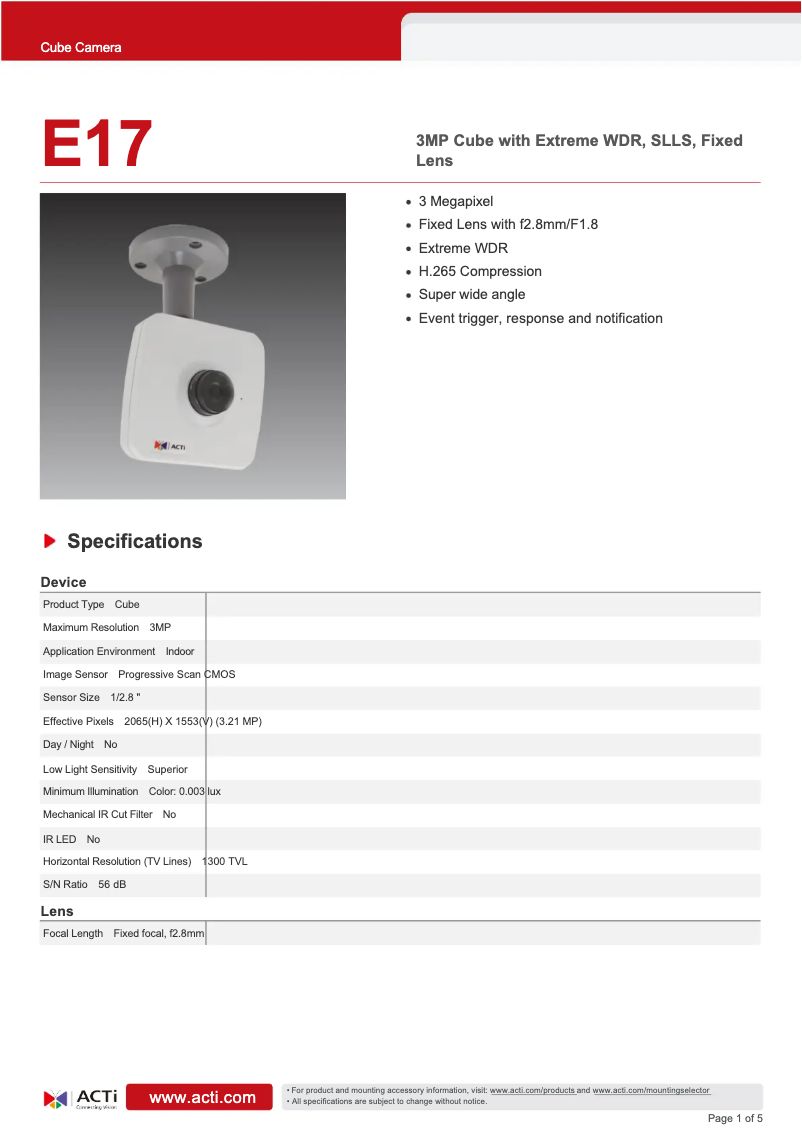

Manuals of product E17
Technical Specifications E17
General Information
-
ModelE17
-
Brand
-
Category
-
Type
-
SKU1098456
-
MPN1098456
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor
-
Plug and PlayYes
-
Plug and PlayYes
-
Plug and PlayYes
-
Connectivity technologyWired
-
CertificationCE, FCC
Design
-
Anti-fogYes
-
FormatCube
-
Product colorBlack, White
-
Mounting typeCeiling/wall
-
IndicatorsEnergy
Video
-
Maximum resolution2048 x 1536 pixels
-
Total megapixels3 MP
-
Visual compression formatsH.264, M-JPEG
-
Supported graphic resolutions320 x 240, 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
-
Supported video modes1080p
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Gain control typeAuto
-
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
-
Coding of the region of interestYes
-
Number of images per second30 fps
-
Coding of the region of interestYes
-
Image quality adjustmentBrightness, Contrast, Sharpness
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Bitrate28 Kbps - 12 Mbps
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Number of TV lines (horizontal)1300
Camera
-
Minimum illumination0.1 lux
-
Field of view of the lens, horizontal100.5 °
-
Angle of view of the lens, vertical76.4 °
-
White balanceAuto, Manual
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8 "
-
Progressive scanYes
-
Effective pixel count (H x V)2065 x 1553 pixels
Objective system
-
Number of lenses1
-
Maximum number of openings1.8
-
Fixed focusYes
-
Fixed Focal Length2.8 mm
Security
-
Digital watermarkYes
-
Password protectionUser
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Security-supported algorithm802.1x RADIUS
-
Digital watermarkYes
-
Alert notification typeE-mail, Snapshot alert message, Text alert message
-
Digital watermarkYes
-
Functions of the IVS system (intelligent video surveillance)Abandoned object, Crossing line, Face detection, Intrusion, Missing object, People counting, Scene change
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
-
Digital watermarkYes
Storage support
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSDHC, MicroSDXC
-
Integrated hard driveNo
Night vision
-
Night visionNo
Network
-
E-mailYes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Wiring technology10/100Base-T(X)
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Supported network protocolsIPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP
-
Streaming methodMulticast
-
E-mailYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Audio
-
Audio output channels1 channels
-
Built-in microphoneYes
-
Audio system2-way
-
Sampling frequency8 kHz
-
Voice codecsG.711
Weight and dimensions
-
Height96 mm
-
Depth45 mm
-
Height96 mm
-
Weight241 g
Power
-
Power supply typePoE
-
Energy consumption (Power over Ethernet (PoE))6.49 W
Management features
-
Remote-controlledYes
-
Remote-controlledYes
-
Remote-controlledYes
-
Remote-controlledYes
-
Remote-controlledYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Object removal detection
-
Unattended baggage detection
Environmental conditions
-
Operating temperature-10 - 50 °C
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand ACTi
More product types from brand ACTi
Presentation of product E17 specifications from brand ACTi
Generalities
The brand of the product ACTi E17 is ACTi. This brand is known for its quality and innovation in the field of household appliances. The product model ACTi E17 is E17 | E17. This model ensures optimal performance and an enhanced user experience. The EAN code of the product ACTi E17 is 4710751963511. This code allows for the unique identification of the product in the distribution system.
Design
Does the product ACTi E17 have an anti-fog feature? Oui. This feature helps prevent fogging, ensuring optimal visibility. The mounting type of the product ACTi E17 is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product ACTi E17 is a bar. This format allows for practical and efficient use in various contexts. The color of the product ACTi E17 is Black, White. This shade gives it a modern and elegant look. Does the product ACTi E17 have indicators? Énergie. These indicators allow you to visualize the operating status of the device.
Camera
The minimum illumination of the product ACTi E17 is 0.1 lux. This feature ensures optimal performance even in low light conditions. The white balance of the product ACTi E17 consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The field of view of the ACTi E17 lens is 100.5 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product ACTi E17 is 76.4 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions.
Representation / realization
Does the product ACTi E17 have the people counting feature? Oui. This feature allows tracking the number of people present in a given space, thus providing valuable data for management and flow optimization. Does the product ACTi E17 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The type of product ACTi E17 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product ACTi E17 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product ACTi E17 have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The product ACTi E17 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The certification of the product ACTi E17 contains CE, FCC. This certification guarantees compliance with the required safety and performance standards.
Image sensor
The sensor type of the product ACTi E17 is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product ACTi E17 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The number of sensors of the product ACTi E17 is 1. This number of sensors allows for precise and efficient image detection. The optical sensor size of the product ACTi E17 is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The effective pixel count (H x V) of the product ACTi E17 is 2065 x 1553 pixels. This specification ensures accurate and detailed image quality.
Objective system
The number of lenses in the product ACTi E17 is 1. This number determines the quality and versatility of the lens. The product goal system ACTi E17 has a fixed focal length of 2.8 mm. This feature allows for images with great sharpness and exceptional quality. Is the ACTi E17 product fixed focus? No. This product is designed to provide optimal usage flexibility. The maximum number of openings for the product ACTi E17 is 1.8. This feature allows for optimal use and increased flexibility.
Video
The maximum resolution of the product ACTi E17 is 2048 x 1536 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product ACTi E17 is 3 MP. This total ensures exceptional image quality for your photos. The product ACTi E17 has visual compression formats: H.264, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product ACTi E17 are 320 x 240,640 x 480 (VGA),800 x 600 (SVGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2048 x 1536 (QXGA). These resolutions provide optimal display quality for your content. The supported video mode of the product ACTi E17 is 1080p. This mode allows you to enjoy optimal image quality for your videos. Does the product ACTi E17 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product ACTi E17 features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product ACTi E17 have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. The gain control type of the product ACTi E17 is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product ACTi E17 have Automatic Gain Control? Oui. This feature allows for automatic adjustment of the sound level for an optimal audio experience. The number of frames per second of the product ACTi E17 is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product ACTi E17 have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. Does the product ACTi E17 have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The image quality setting of the product ACTi E17 contains Brightness, Contrast, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product ACTi E17 have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. Does the product ACTi E17 have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product ACTi E17 have Timestamp Overlay? Oui. This feature allows you to display the date and time directly on the video, providing valuable temporal context. Does the ACTi E17 have an image stabilizer? Oui. This image stabilizer allows for sharp videos and photos, even in motion. The binary bitrate control of the product ACTi E17 contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The bit rate of the product ACTi E17 is 28 Kbps - 12 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product ACTi E17 have a wide dynamic range (WDR)? Oui. This feature enhances image quality by optimizing contrast in varying lighting conditions. Does the product ACTi E17 have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The number of TV lines (horizontal) of the product ACTi E17 is 1300. This figure ensures superior image quality for an immersive viewing experience.
Storage support
Does the ACTi E17 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product ACTi E17 has compatible memory cards: MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the ACTi E17 have a built-in hard drive? No. This feature means that the product does not have internal storage.
Night vision
Does the product ACTi E17 have night vision? Non. This feature allows for clear visibility in the dark, thus providing enhanced security.
Security
Does the product ACTi E17 have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product ACTi E17 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product ACTi E17 have Password Protection? Utilisateur. This feature ensures the security of your personal data. Does the product ACTi E17 have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the ACTi E17 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product ACTi E17 have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product ACTi E17 have Privacy Protection? Oui. This feature ensures the security of your personal data and enhances your trust in using the product. The alert notification type for the product ACTi E17 is E-mail, Snapshot alert message, Text alert message. This feature allows for real-time alerts for better security. The supported security algorithm of the product ACTi E17 contains 802.1x RADIUS. This algorithm ensures optimal protection of your data. Does the ACTi E17 have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The ACTi E17 has a heart rate. This feature allows you to monitor your health in real time. The intelligent video surveillance system of the product ACTi E17 has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product ACTi E17 have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the product ACTi E17 have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product ACTi E17 is 1. These ports provide a stable and fast network connection for your devices.
Network
Does the product ACTi E17 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the ACTi E17 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product ACTi E17 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The Ethernet interface type of the product ACTi E17 is Fast Ethernet. This type of interface allows for fast and efficient network connections. The wiring technology of the product ACTi E17 contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The network standards of the product ACTi E17 are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product ACTi E17 are IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP. These protocols ensure efficient and reliable communication for your networking needs. Does the product ACTi E17 have E-mail? Oui. This feature allows for quick and effective communication with your customers. The streaming method of the product ACTi E17 is Multi-diffusion. This method allows for efficient data transmission to multiple users simultaneously.
Weight and dimensions
The width of the product ACTi E17 is 96 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product ACTi E17 is 45 mm. This dimension allows for optimal integration into your space. The weight of the product ACTi E17 is 241 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product ACTi E17 is 96 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Audio
Does the product ACTi E17 have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings. The audio system of the product ACTi E17 is stereo. This audio system provides an immersive and high-quality sound experience. The sampling frequency of the product ACTi E17 is 8 kHz. This feature ensures optimal sound quality for your recordings. The audio output channels of the ACTi E17 are 1 canaux. This specification allows for an immersive and high-quality sound experience. The voice codec of the ACTi E17 product contains G.711. This voice codec ensures optimal audio quality for your communications.
Power
The energy consumption of the product ACTi E17 is 6.49 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The type of power source for the product ACTi E17 is PoE. This type of power supply ensures optimal performance and efficient use of the device.
Environmental conditions
The operating temperature of the product ACTi E17 is -10 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Management features
Does the product ACTi E17 have a Reset Button? Oui. This button allows you to easily reset the product settings. Does the product ACTi E17 have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. Does the ACTi E17 have scalable firmware? Oui. This feature ensures continuous updates and improvements for optimal performance. The ACTi E17 product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Is the ACTi E17 product Remote Controlled? Oui. This feature allows for convenient and easy remote control. The ACTi E17 system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Packaging contents
The number of cameras of the product ACTi E17 is 1. This product is equipped with a camera that allows capturing high-quality images.
