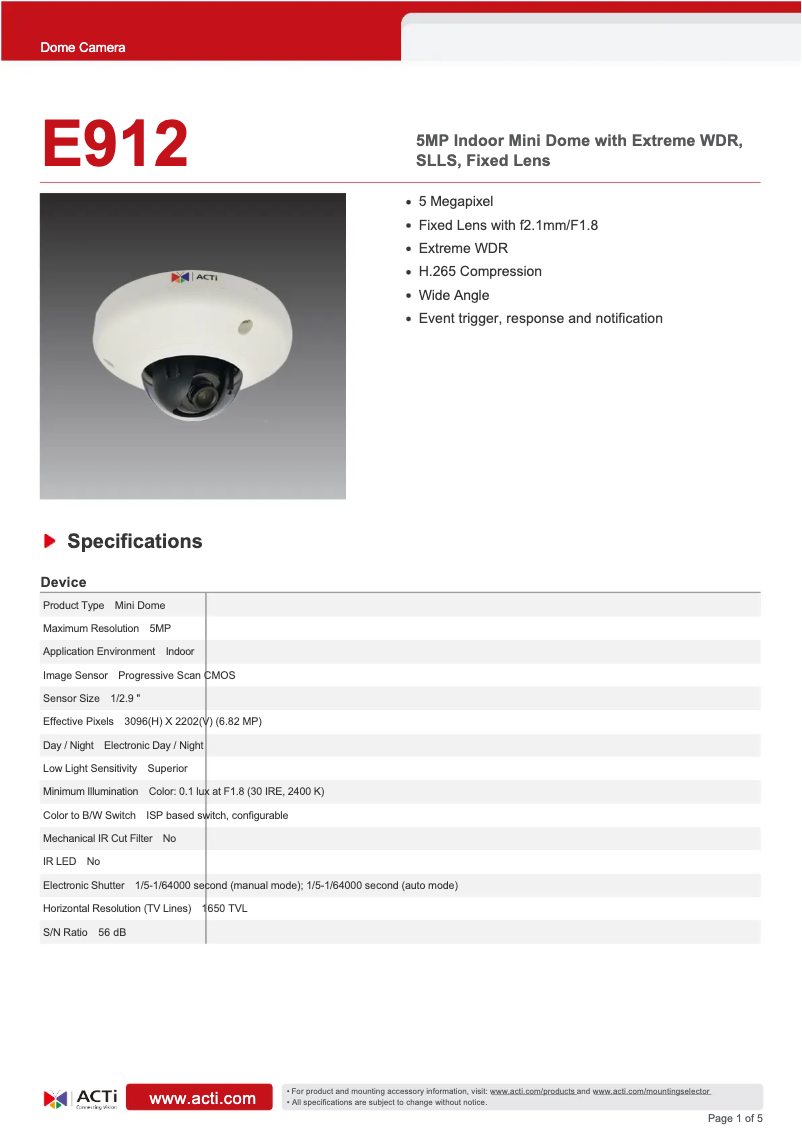

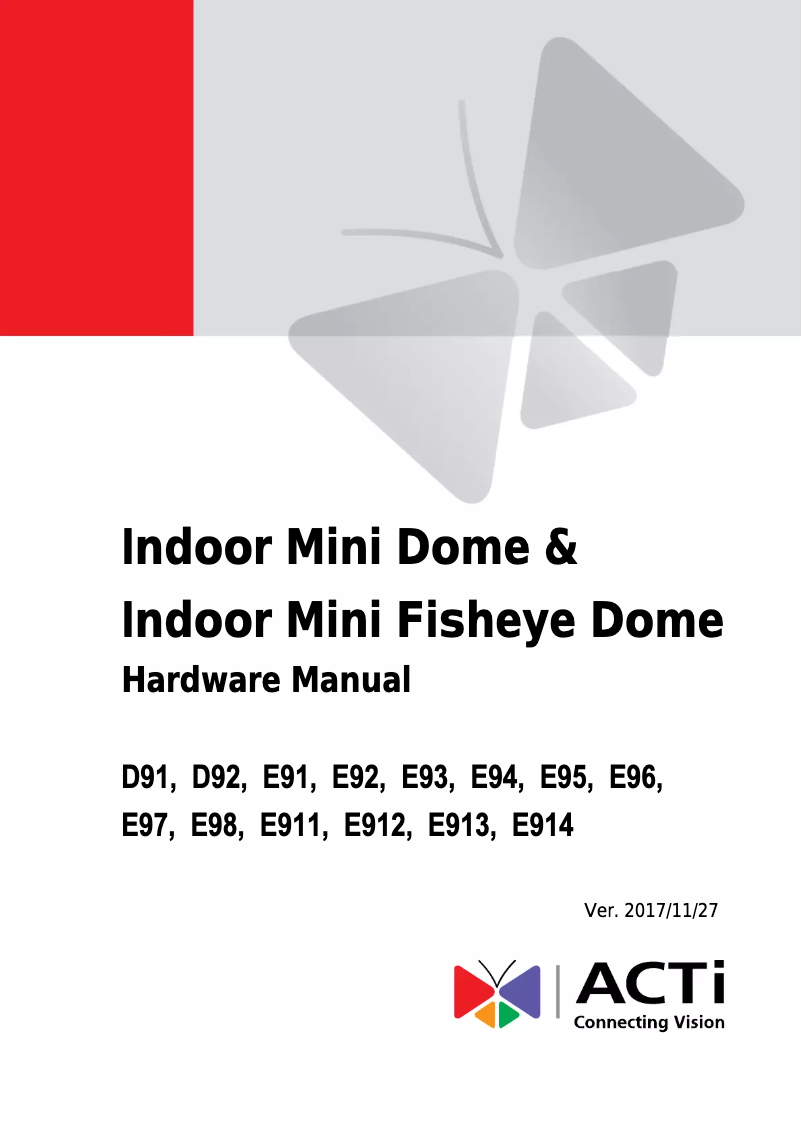

Manuals of product E912
Technical Specifications E912
General Information
-
ModelE912
-
Brand
-
Category
-
Type
-
SKU1204123
-
MPN1204123
Packaging contents
-
Number of cameras1
Representation / realization
-
CertificationCE, FCC, UL
-
Day/Night ModeYes
-
TypeIP security camera
-
Supported installationIndoor
-
Connectivity technologyWired
Design
-
Code IKIK08
-
Product colorWhite
-
Mounting typeCeiling/wall
-
FormatDome
-
Protection functionsAnti-vandalism
Weight and dimensions
-
Weight409 g
-
Diameter110 mm
-
Height58 mm
Video
-
Total megapixels5 MP
-
Image stabilizerYes
-
Image stabilizerYes
-
Noise reduction technology3D digital noise suppression
-
Image stabilizerYes
-
Image stabilizerYes
-
Image stabilizerYes
-
Gain control typeAuto
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Image stabilizerYes
-
Bitrate128Kbps - 12Mbps
-
Binary rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
-
Maximum resolution2592 x 1944 pixels
-
Number of images per second30 ips
-
Supported graphic resolutions320 x 240, 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2592 x 1944
-
Visual compression formatsH.264, H.265, M-JPEG
Environmental conditions
-
Operating temperature-10 - 50 °C
-
Operating relative humidity (H-H)10 - 85 %
Power
-
Power supply typePoE
-
Energy consumption (Power over Ethernet (PoE))3.42 W
Network
-
BluetoothNo
-
BluetoothNo
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Supported network protocolsIPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
-
Quality of Service (QoS)Yes
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSDHC, MicroSDXC
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Management features
-
Scalable firmwareYes
-
Scalable firmwareYes
-
Scalable firmwareYes
-
Behavior analysisLane departure detection
Security
-
MirrorYes
-
MirrorYes
-
Functions of the IVS system (intelligent video surveillance)Face detection, People counting
Objective system
-
Number of lenses1
-
Maximum number of openings1.8
-
Fixed Focal Length2.1 mm
-
Fixed focusYes
Image sensor
-
Number of sensors1
-
Effective pixel count (H x V)3096 x 2202 pixels
-
Optical sensor size1/2.9 "
-
Progressive scanYes
-
Sensor typeCMOS
Camera
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Panoramic-90 - 90 °
-
Inclination angle0 - 90 °
-
Field of view of the lens, horizontal94.7 °
-
Angle of view of the lens, vertical72.1 °
-
Camera shutter speed1/5-1/64000 s
-
Camera shutter typeElectronics
-
Adjustment of shutter speedAuto/Manual
-
Minimum illumination0.1 lux
Night vision
-
Night vision-
Similar products
More product categories from brand ACTi
More product types from brand ACTi
Presentation of product E912 specifications from brand ACTi
Packaging contents
The number of cameras of the product ACTi E912 is 1. This product is equipped with a camera that allows capturing high-quality images.
Design
The IK Code of the product ACTi E912 is IK08. This IK Code allows for easy identification of the specific design of the item. The format of the product ACTi E912 is a bar. This format allows for practical and efficient use in various contexts. The color of the product ACTi E912 is Blanc. This shade gives it a modern and elegant look. The mounting type of the product ACTi E912 is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The product ACTi E912 has Anti-vandalisme protection features. These characteristics ensure reliable use in various environmental conditions.
Generalities
The brand of the product ACTi E912 is ACTi. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product ACTi E912 is 4710751964051. This code allows for the unique identification of the product in the distribution system. The product model ACTi E912 is E912 | E912. This model ensures optimal performance and an enhanced user experience.
Representation / realization
The design of the product ACTi E912 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The type of product ACTi E912 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The certification of the product ACTi E912 contains CE, FCC, UL. This certification guarantees compliance with the required safety and performance standards. Does the product ACTi E912 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The product ACTi E912 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Weight and dimensions
The height of the product ACTi E912 is 58 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product ACTi E912 is 409 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product ACTi E912 is 110 mm. This diameter allows for optimal use and fits perfectly with your needs.
Power
The energy consumption of the product ACTi E912 is 3.42 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The type of power source for the product ACTi E912 is PoE. This type of power supply ensures optimal performance and efficient use of the device.
Environmental conditions
The product ACTi E912 has an operating relative humidity (H-H) of 10 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product ACTi E912 is -10 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Network
The network standards of the product ACTi E912 are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. Does the ACTi E912 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product ACTi E912 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The supported network protocols of the product ACTi E912 are IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X. These protocols ensure efficient and reliable communication for your networking needs. Does the product ACTi E912 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Storage support
The product ACTi E912 has compatible memory cards: MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the ACTi E912 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the ACTi E912 have a built-in hard drive? No. This feature means that the product does not have internal storage.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product ACTi E912 is 1. These ports provide a stable and fast network connection for your devices.
Video
The total megapixels of the product ACTi E912 is 5 MP. This total ensures exceptional image quality for your photos. Does the product ACTi E912 have Scrolling and mirroring? Oui. This feature allows for a smooth and immersive visual experience. The product ACTi E912 features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product ACTi E912 have Text Overlay? Oui. This feature allows you to add text captions directly on the video for better understanding. Does the product ACTi E912 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product ACTi E912 have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The image quality setting of the product ACTi E912 contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the ACTi E912 have an image stabilizer? Oui. This image stabilizer allows for sharp videos and photos, even in motion. Does the product ACTi E912 have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The gain control type of the product ACTi E912 is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The bit rate of the product ACTi E912 is 128Kbps - 12Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The binary bitrate control of the product ACTi E912 contains Constant Bit Rate (CBR), Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The number of frames per second of the product ACTi E912 is 30 ips. This specification ensures optimal smoothness when playing videos. The maximum resolution of the product ACTi E912 is 2592 x 1944 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product ACTi E912 are 320 x 240,640 x 480 (VGA),800 x 600 (SVGA),1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2048 x 1536 (QXGA),2592 x 1944. These resolutions provide optimal display quality for your content. The product ACTi E912 has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos.
Management features
Does the product ACTi E912 have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. The ACTi E912 product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the ACTi E912 have scalable firmware? Oui. This feature ensures continuous updates and improvements for optimal performance. The ACTi E912 system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Security
Does the product ACTi E912 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product ACTi E912 have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. The intelligent video surveillance system of the product ACTi E912 has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring.
Objective system
The maximum number of openings for the product ACTi E912 is 1.8. This feature allows for optimal use and increased flexibility. The number of lenses in the product ACTi E912 is 1. This number determines the quality and versatility of the lens. Is the ACTi E912 product fixed focus? No. This product is designed to provide optimal usage flexibility. The product goal system ACTi E912 has a fixed focal length of 2.1 mm. This feature allows for images with great sharpness and exceptional quality.
Image sensor
The optical sensor size of the product ACTi E912 is 1/2.9 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The effective pixel count (H x V) of the product ACTi E912 is 3096 x 2202 pixels. This specification ensures accurate and detailed image quality. The number of sensors of the product ACTi E912 is 1. This number of sensors allows for precise and efficient image detection. Does the product ACTi E912 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The sensor type of the product ACTi E912 is CMOS. This type of sensor ensures optimal image quality for your needs.
Night vision
Does the product ACTi E912 have night vision? -. This feature allows for clear visibility in the dark, thus providing enhanced security.
Camera
The tilt angle of the product ACTi E912 is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product ACTi E912 is -90 - 90 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt command of the ACTi E912 camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. Does the product ACTi E912 have a camera pan command? No. This feature is not available on this model. The field of view of the ACTi E912 lens is 94.7 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product ACTi E912 is 72.1 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The shutter speed of the camera of the product ACTi E912 is 1/5-1/64000 s. This feature allows capturing sharp images even in low light conditions. The type of shutter of the camera of the product ACTi E912 is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The ability to adjust the shutter speed of the product ACTi E912 is Auto/Manual. This adjustment allows for precise image capture, whether in automatic mode for simplified use or in manual mode for total creative control. The minimum illumination of the product ACTi E912 is 0.1 lux. This feature ensures optimal performance even in low light conditions.
