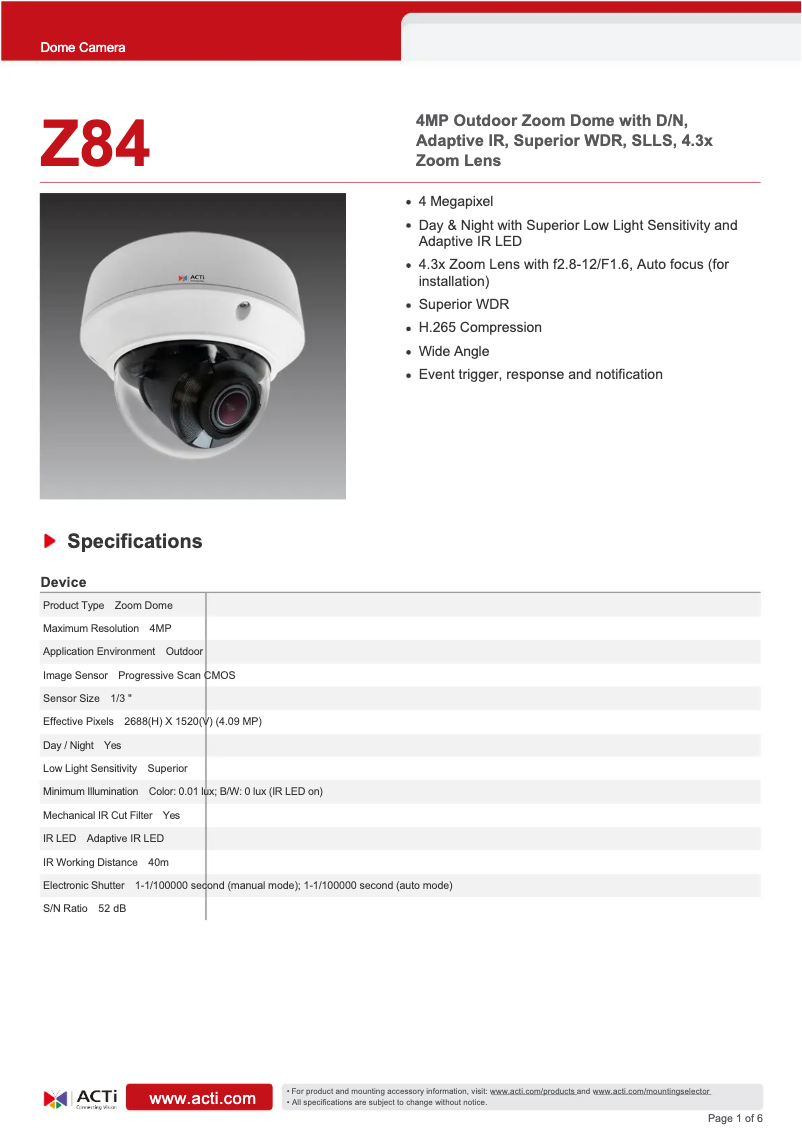

Manuals of product Z84
Technical Specifications Z84
General Information
-
ModelZ84
-
Brand
-
Category
-
Type
-
SKU1204135
-
MPN1204135
Packaging contents
-
Number of cameras1
Representation / realization
-
CertificationCE, FCC
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
Connectivity technologyWired
-
Supported installationOutdoor
-
TypeIP security camera
Design
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorWhite
-
International Protection Code (IP)IP67
-
Code IKIK10
-
Weather-resistantYes
-
Protection functionsAnti-vandalism
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Energy consumption (Power over Ethernet (PoE))6 W
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Operating relative humidity (H-H)10 - 95 %
Weight and dimensions
-
Diameter148 mm
-
Height111.3 mm
-
Weight920 g
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Network
-
BluetoothNo
-
BluetoothNo
-
Network standardsIEEE 802.3af
-
Type of Ethernet interfaceFast Ethernet
-
Ethernet/LANYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Video
-
Supported graphic resolutions352 x 288
-
Number of images per second640 x 360
-
Video broadcasting704 x 576
-
Video broadcasting1280 x 720 (HD 720)
-
Video broadcasting1920 x 1080 (HD 1080)
-
Noise reduction technology2048 x 1520
-
Video broadcasting2592 x 1520
-
Video broadcasting20 ips
-
Total megapixelsYes
-
Maximum resolutionYes
-
Visual compression formatsYes
-
3D digital noise reduction
-
Yes
-
Yes
-
4 MP
-
2592 x 1520 pixels
-
H.264, H.265, M-JPEG
Camera
-
Field of view of the lens, horizontal91 °
-
Angle of view of the lens, vertical54.4 °
-
Inclination angle0 - 80 °
-
Panoramic0 - 360 °
-
Rotation angle360 °
-
Camera shutter speed1-1/100000 s
-
Camera shutter typeElectronic
-
Adjustment of shutter speedAuto/Manual
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination0 lux
Objective system
-
Optical zoom4.3 x
-
Focal length2.8 - 12 mm
-
Maximum number of openings1.6
-
Number of lenses1
-
Zoom capacityYes
Night vision
-
Night vision distance40 m
-
Night visionYes
-
Type of LEDIR
Image sensor
-
Effective pixel count (H x V)2688 x 1520 pixels
-
Optical sensor size1/3 "
-
Sensor typeCMOS
-
Number of sensors1
-
Progressive scanYes
Similar products
More product categories from brand ACTi
More product types from brand ACTi
Presentation of product Z84 specifications from brand ACTi
Packaging contents
The number of cameras of the product ACTi Z84 is 1. This product is equipped with a camera that allows capturing high-quality images.
Generalities
The brand of the product ACTi Z84 is ACTi. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product ACTi Z84 is 4710751966543. This code allows for the unique identification of the product in the distribution system. The product model ACTi Z84 is Z84 | Z84. This model ensures optimal performance and an enhanced user experience.
Design
The mounting type of the product ACTi Z84 is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product ACTi Z84 is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product ACTi Z84 contains IP67. This code indicates the level of protection against solid objects and moisture. The color of the product ACTi Z84 is Blanc. This shade gives it a modern and elegant look. The IK Code of the product ACTi Z84 is IK10. This IK Code allows for easy identification of the specific design of the item. Is the ACTi Z84 weather-resistant? Oui. This product is designed to withstand the harshest weather conditions. The product ACTi Z84 has Anti-vandalisme protection features. These characteristics ensure reliable use in various environmental conditions.
Representation / realization
The certification of the product ACTi Z84 contains CE, FCC. This certification guarantees compliance with the required safety and performance standards. Does the product ACTi Z84 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product ACTi Z84 have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product ACTi Z84 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The product ACTi Z84 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product ACTi Z84 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The type of product ACTi Z84 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior.
Environmental conditions
The product ACTi Z84 has an operating relative humidity (H-H) of 10 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product ACTi Z84 is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Power
The type of power source for the product ACTi Z84 is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The product ACTi Z84 has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The energy consumption of the product ACTi Z84 is 6 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Weight and dimensions
The diameter of the product ACTi Z84 is 148 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product ACTi Z84 is 920 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product ACTi Z84 is 111.3 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Storage support
Does the ACTi Z84 have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the ACTi Z84 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product ACTi Z84 has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product ACTi Z84 is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product ACTi Z84 is 1. These ports provide a stable and fast network connection for your devices.
Network
The Wifi of the product ACTi Z84 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The Ethernet interface type of the product ACTi Z84 is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product ACTi Z84 are IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. Does the ACTi Z84 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. Does the product ACTi Z84 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product.
Night vision
The night vision distance of the product ACTi Z84 is 40 m. This feature allows for clear and precise observation even in darkness. Does the product ACTi Z84 have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product ACTi Z84 is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Video
The supported graphic resolutions of the product ACTi Z84 are 352 x 288,640 x 360,704 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080),2048 x 1520,2592 x 1520. These resolutions provide optimal display quality for your content. The number of frames per second of the product ACTi Z84 is 20 ips. This specification ensures optimal smoothness when playing videos. Does the product ACTi Z84 have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product ACTi Z84 have Text Overlay? Oui. This feature allows you to add text captions directly on the video for better understanding. Does the product ACTi Z84 have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The product ACTi Z84 features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product ACTi Z84 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product ACTi Z84 have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The total megapixels of the product ACTi Z84 is 4 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product ACTi Z84 is 2592 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product ACTi Z84 has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos.
Objective system
The optical zoom of the product ACTi Z84 is 4.3 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The focal length of the product ACTi Z84 is 2.8 - 12 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product ACTi Z84 is 1.6. This feature allows for optimal use and increased flexibility. The number of lenses in the product ACTi Z84 is 1. This number determines the quality and versatility of the lens. Does the product ACTi Z84 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance.
Image sensor
The number of sensors of the product ACTi Z84 is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product ACTi Z84 is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product ACTi Z84 is 1/3 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The effective pixel count (H x V) of the product ACTi Z84 is 2688 x 1520 pixels. This specification ensures accurate and detailed image quality. Does the product ACTi Z84 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
